RN32L-KRA (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )

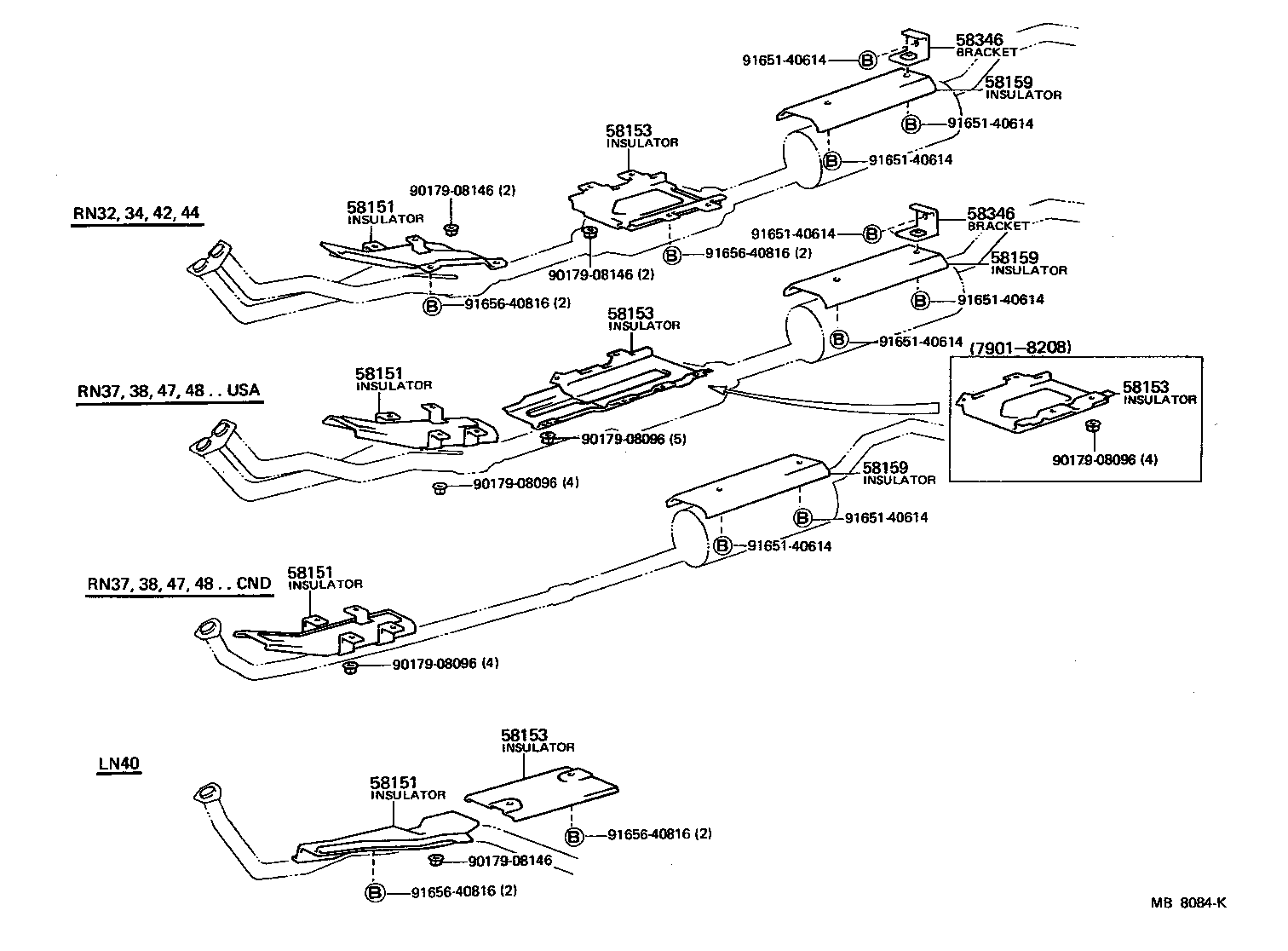

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58041-89101 |
RN32,42 |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58041-89101 |
RN32,42 |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58041-89101 |
RN32,42 |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58041-89101 |
RN32,42 |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58152-89101 |
RN32,42..USA |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58152-89101 |
RN32,42..USA |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58152-89101 |
RN32,42..USA |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58152-89101 |
RN32,42..USA |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-89103 |
RN3#,42 |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-89103 |
RN3#,42 |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-89103 |
RN3#,42 |
1 | ||
| 58346 - BRACKET, REAR FLOOR HEAT INSULATOR | ||||
| 58346-89101 |
RN32,42;RN37..IV |
1 | ||
| 58346-89101 |
RN3#,42 |
1 | ||
| 58346 - BRACKET, REAR FLOOR HEAT INSULATOR | ||||
| 58346-89101 |
RN32,42;RN37..IV |
1 | ||
| 58346-89101 |
RN3#,42 |
1 | ||
| Common parts | ||||
| 90179-08096 | ||||
| 90179-08146 | ||||
| 91651-40614 | ||||
| 91656-40816 | ||||
