RN32L-KRA (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )RN3#,4#..MTM

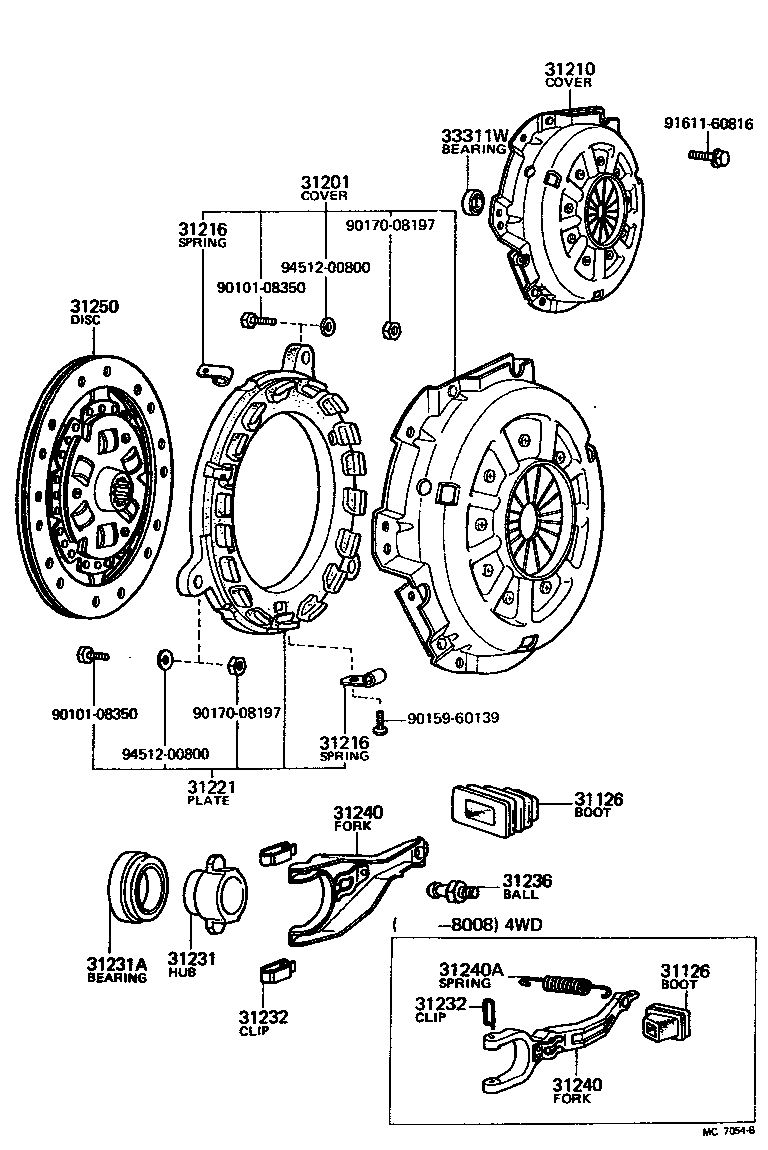

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20060 |
RN32,42..MTM |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20060 |
RN32,42..MTM |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-29075 |
RN3#,42..MTM |
1 | ||
| 31201-29076 |
RN3#,42..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-20130 |
RN3#,42..MTM |
1 | ||
| 31210-20131 |
RN3#,42..MTM |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LN40,RN3#,4#..MTM |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LN40,RN3#,4#..MTM |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-29025 |
RN3#,42..MTM |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-20070 |
RN32,42..MTM |
1 | ||
| 31231-20071 |
RN32,42..MTM |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40001 |
RN32,42..MTM |
1 | ||
| 90363-40008 |
RN32,42..MTM |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-22010 |
RN32,42..MTM |
2 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-22010 |
RN32,42..MTM |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-20020 |
RN3#,42..MTM |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-20050 |
RN32,42..MTM |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-20050 |
RN32,42..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-35051 |
RN3#,42..MTM |
1 | ||
| 31250-35050 |
RN3#,42..MTM |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97143-06201 |
RN3#,42..MTM |
1 | ||
| Common parts | ||||
| 90101-08350 | ||||
| 90159-60139 | ||||
| 90170-08197 | ||||
| 91611-60816 | ||||
| 94512-00800 | ||||
