RN32L-KDA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

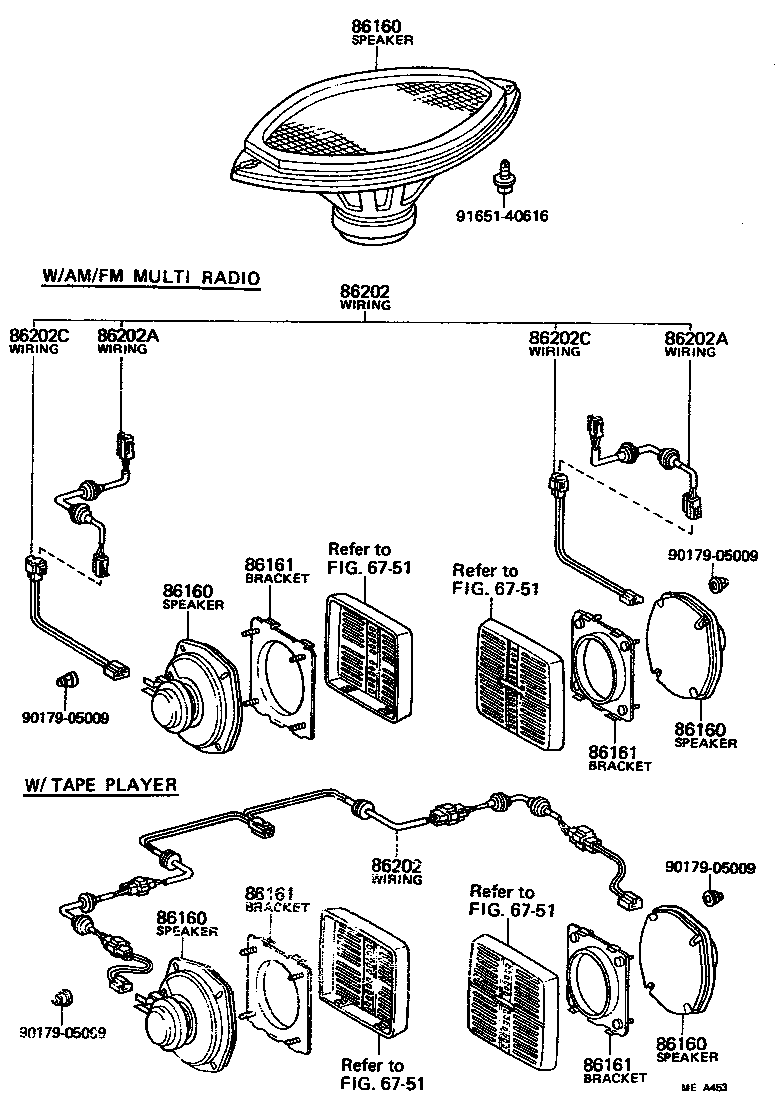

Click highlighted areas on diagram

diagram 6751 6751 6751 6751 86160 86160 86160 86160 86160 86161 86161 86161 86161 86202 86202 86202A 86202A 86202C 86202C 9017905009 9017905009 9017905009 9017905009 9165140616
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-89106

LN40,RN37,47..DLX;RN32,34,38,42,44,48

AM,AM/FM

 1
86160-95A01

LN40,RN3#,4#

DOOR,W/TAPE PLAYER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-89106

LN40,RN37,47..DLX;RN32,34,38,42,44,48

AM,AM/FM

 1
86160-95A01

LN40,RN3#,4#

DOOR,W/TAPE PLAYER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-89106

LN40,RN37,47..DLX;RN32,34,38,42,44,48

AM,AM/FM

 1
86160-95A01

LN40,RN3#,4#

DOOR,W/TAPE PLAYER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-89106

LN40,RN37,47..DLX;RN32,34,38,42,44,48

AM,AM/FM

 1
86160-95A01

LN40,RN3#,4#

DOOR,W/TAPE PLAYER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-89106

LN40,RN37,47..DLX;RN32,34,38,42,44,48

AM,AM/FM

 1
86160-95A01

LN40,RN3#,4#

DOOR,W/TAPE PLAYER

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-89102

LN40,RN3#,4#

DOOR,W/TAPE PLAYER

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-89102

LN40,RN3#,4#

DOOR,W/TAPE PLAYER

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-89102

LN40,RN3#,4#

DOOR,W/TAPE PLAYER

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-89102

LN40,RN3#,4#

DOOR,W/TAPE PLAYER

 2
86202 - WIRE, SPEAKER, NO.1
86202-89102

LN40,RN3#,4#

W/TAPE PLAYER

 1
86202 - WIRE, SPEAKER, NO.1
86202-89102

LN40,RN3#,4#

W/TAPE PLAYER

 1
Common parts
90179-05009
91651-40616
Linked diagrams
6751
