RN32L-KDA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

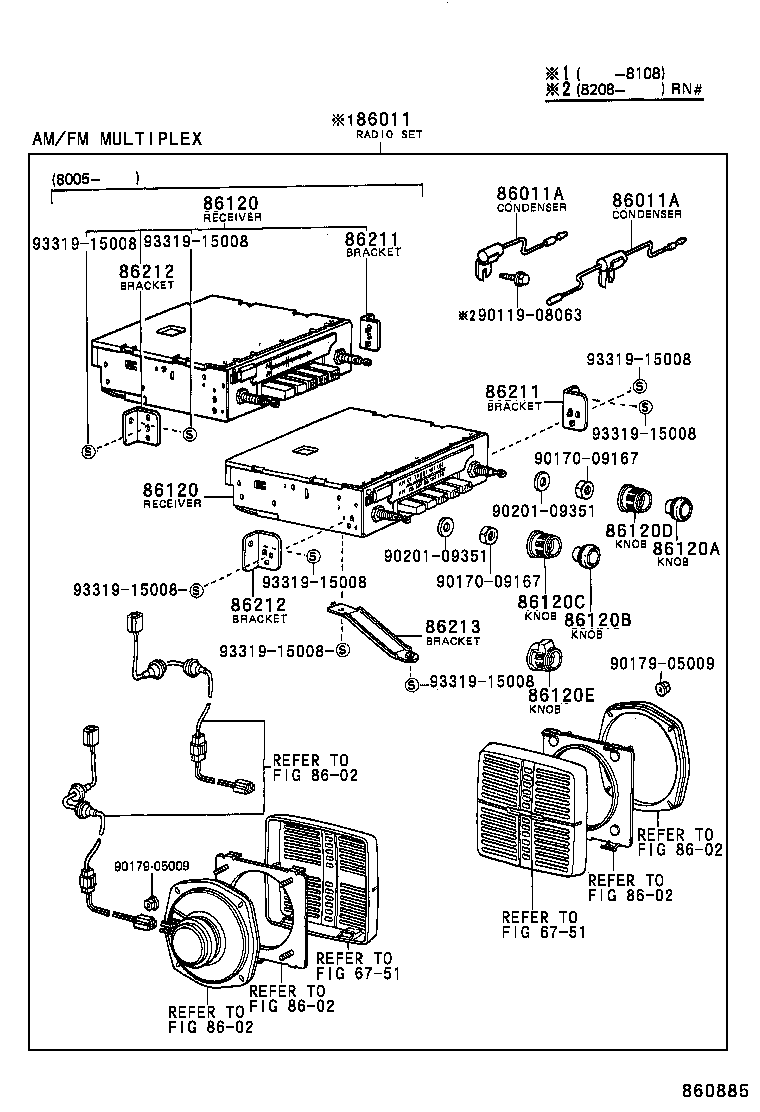

(7908- )

Click highlighted areas on diagram

diagram 6751 6751 86011 86011A 86011A 8602 8602 8602 8602 8602 86120 86120 86120A 86120B 86120C 86120D 86120E 86211 86211 86212 86212 86213 9011908063 9017009167 9017009167 9017905009 9020109351 9020109351 9331915008 9331915008 9331915008 9331915008 9331915008 9331915008 9331915008 9331915008
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-39055

RN42..HVY;RN44..DLX,SR5;RN44..STD..HVY;LN40,RN3#,42,47,48..(DLX,SR5)..(3QT,HLF)

AM/FM

 1
86011-39035

LN40,RN3#,4#..DLX,STD

AM

 1
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN40,RN3#,4#

NO.1

 2
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN40,RN3#,4#

NO.1

 2
86120 - RECEIVER ASSY, RADIO
86120-89106

RN42..HVY;RN44..DLX,SR5;RN44..STD..HVY;LN40,RN3#,42,47,48..(DLX,SR5)..(3QT,HLF)

AM/FM

 1
86120-95A00

LN40,RN3#,4#..DLX,STD

AM

 1
86120 - RECEIVER ASSY, RADIO
86120-89106

RN42..HVY;RN44..DLX,SR5;RN44..STD..HVY;LN40,RN3#,42,47,48..(DLX,SR5)..(3QT,HLF)

AM/FM

 1
86120-95A00

LN40,RN3#,4#..DLX,STD

AM

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86125-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86125-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86120C - KNOB, RADIO RECEIVER TUNING, NO.2
86124-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86120D - KNOB, RADIO RECEIVER TONE
86124-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86211 - BRACKET, RADIO, NO.1
86211-89104

LN40,RN3#,4#

AM OR AM/FM RADIO

 2
86211 - BRACKET, RADIO, NO.1
86211-89104

LN40,RN3#,4#

AM OR AM/FM RADIO

 2
Common parts
90119-08063
90170-09167
90179-05009
90201-09351
93319-15008
Linked diagrams
6751
8602

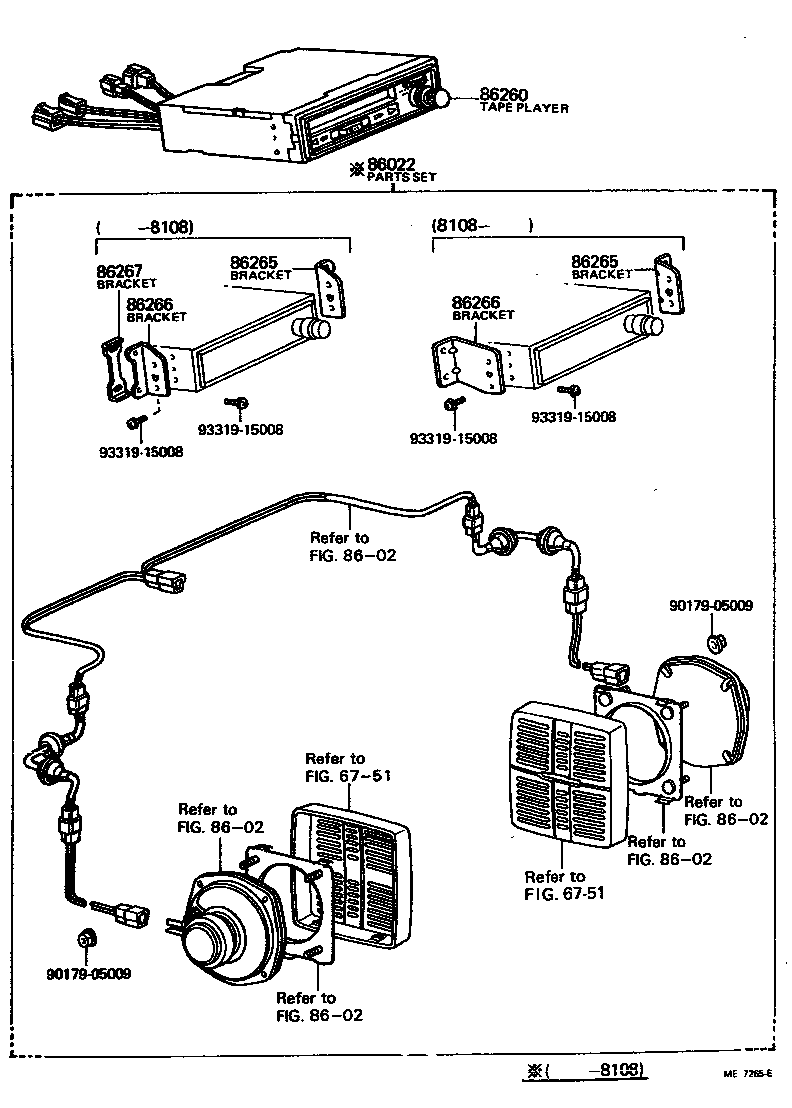

(7808- )

Click highlighted areas on diagram

diagram 6751 6751 8602 8602 8602 8602 8602 86022 86260 86265 86265 86266 86266 86267 9017905009 9017905009 9331915008 9331915008 9331915008 9331915008
Part # Description Qty Price
86022 - PARTS SET, TAPE PLAYER SETTING
86022-39055

LN40,RN3#,4#

 1
86260 - TAPE PLAYER ASSY
86260-14090

RN3#,42

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-89103

LN40,RN3#,4#

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-89103

LN40,RN3#,4#

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-89104

LN40,RN3#,4#

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-89104

LN40,RN3#,4#

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86265-89106

LN40,RN3#,4#

 1
Common parts
90179-05009
93319-15008
Linked diagrams
6751
8602

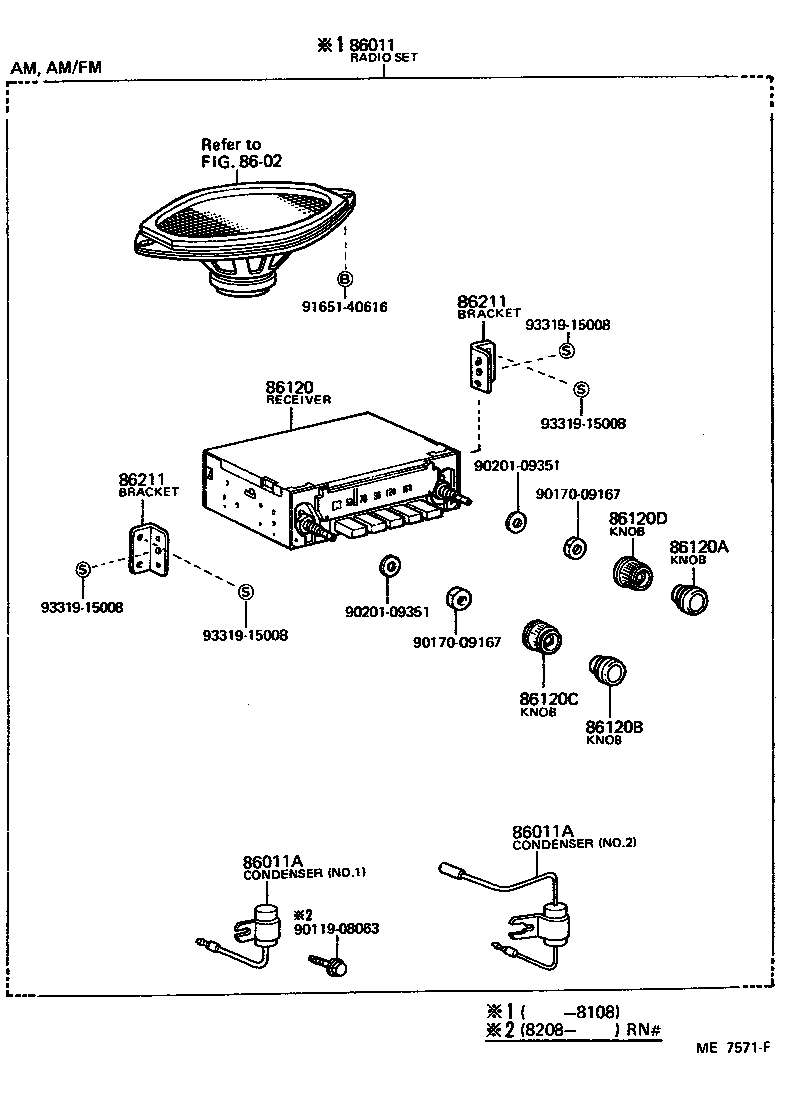

(7808- )

Click highlighted areas on diagram

diagram 86011 86011A 86011A 8602 86120 86120A 86120B 86120C 86120D 86211 86211 9011908063 9017000167 9017009167 9020109351 9020109351 9165140616 9331915008 9331915008 9331915008 9331915008
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-39055

RN42..HVY;RN44..DLX,SR5;RN44..STD..HVY;LN40,RN3#,42,47,48..(DLX,SR5)..(3QT,HLF)

AM/FM

 1
86011-39035

LN40,RN3#,4#..DLX,STD

AM

 1
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN40,RN3#,4#

NO.1

 2
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN40,RN3#,4#

NO.1

 2
86120 - RECEIVER ASSY, RADIO
86120-89106

RN42..HVY;RN44..DLX,SR5;RN44..STD..HVY;LN40,RN3#,42,47,48..(DLX,SR5)..(3QT,HLF)

AM/FM

 1
86120-95A00

LN40,RN3#,4#..DLX,STD

AM

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86125-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86125-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86120C - KNOB, RADIO RECEIVER TUNING, NO.2
86124-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86120D - KNOB, RADIO RECEIVER TONE
86124-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86211 - BRACKET, RADIO, NO.1
86211-89104

LN40,RN3#,4#

AM OR AM/FM RADIO

 2
86211 - BRACKET, RADIO, NO.1
86211-89104

LN40,RN3#,4#

AM OR AM/FM RADIO

 2
Common parts
90119-08063
90170-00167
90170-09167
90201-09351
91651-40616
93319-15008
Linked diagrams
8602
