RN32L-KDA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

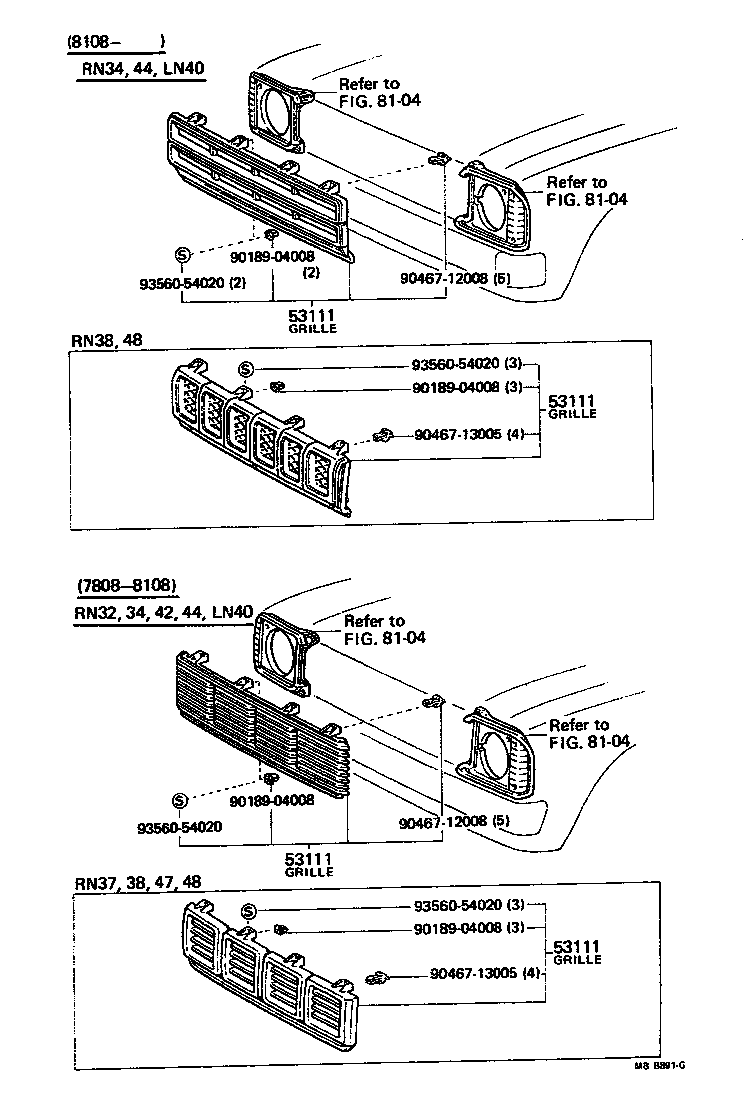

Click highlighted areas on diagram

diagram 53111 53111 53111 53111 8104 8104 8104 8104 9018904008 9018904008 9018904008 9018904008 9046712008 9046712008 9046713005 9046713005 9056054020 9356054020 9356054020 9356054020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-89102

LN40,RN32,34,42,44..DLX

 1
53111 - GRILLE, RADIATOR
53100-89102

LN40,RN32,34,42,44..DLX

 1
53111 - GRILLE, RADIATOR
53100-89102

LN40,RN32,34,42,44..DLX

 1
53111 - GRILLE, RADIATOR
53100-89102

LN40,RN32,34,42,44..DLX

 1
Common parts
90189-04008
90467-12008
90467-13005
90560-54020
93560-54020
Linked diagrams
8104
