RN32L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

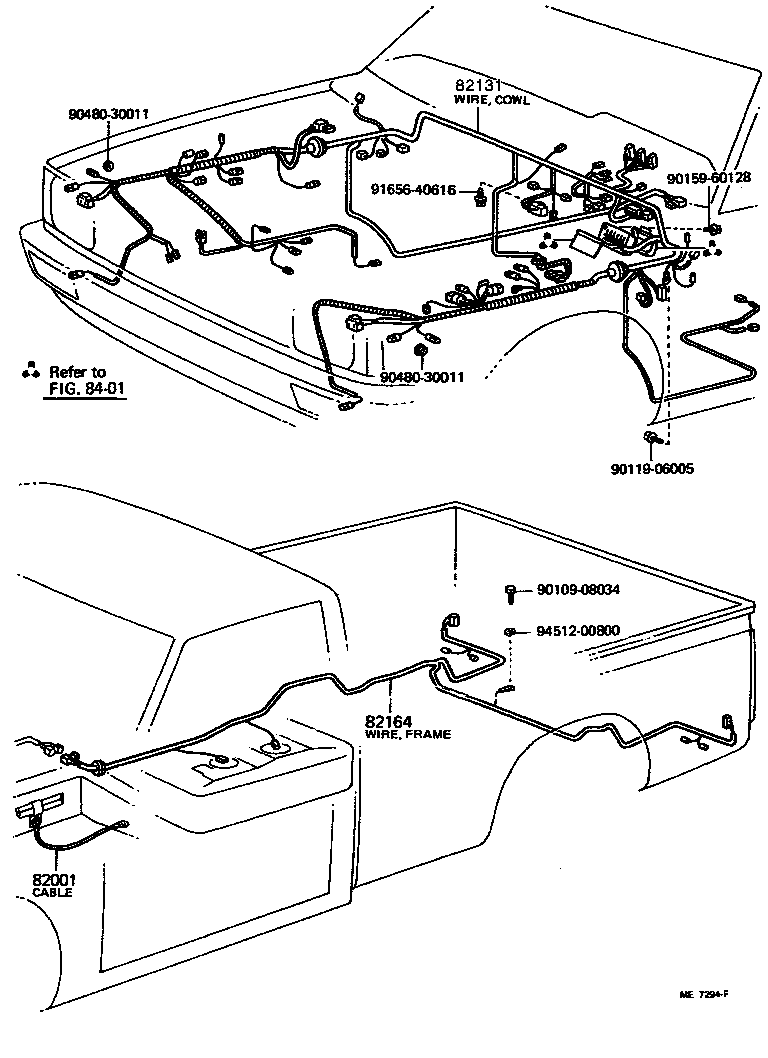

Click highlighted areas on diagram

diagram 82001 82131 82164 8401 9010908034 9011906005 9015960128 9048030011 9048030011 9165640616 9451200800
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07131

RN32,34,42,44

L=310 & 240 APRON-FRAME,ENGINE

 1
90980-07062

RN3#,4#

L=260 DASH-ENGINE HANGER

 1
82131 - WIRE, COWL
82210-89306

RN32,42..MTM..(DLX,STD)..USA

 1
82210-89309

RN32,42..MTM..(DLX,STD)..USA

CALIFORNIA SPEC

 1
82210-89339

RN32,42..MTM..(DLX,STD)..USA

 1
82210-89313

RN32,42..MTM..(DLX,STD)

COLD SPEC

 1
82210-89345

RN32,42..MTM..(DLX,STD)..USA

COLD SPEC

 1
82210-89342

RN32,42..MTM..(DLX,STD)..USA

CALIFORNIA SPEC

 1
82164 - WIRE, FRAME
82410-89180

RN3#

 1
82410-89185

RN3#

 1
Common parts
90109-08034
90119-06005
90159-60128
90480-30011
91656-40616
94512-00800
Linked diagrams
8401

(7808- )

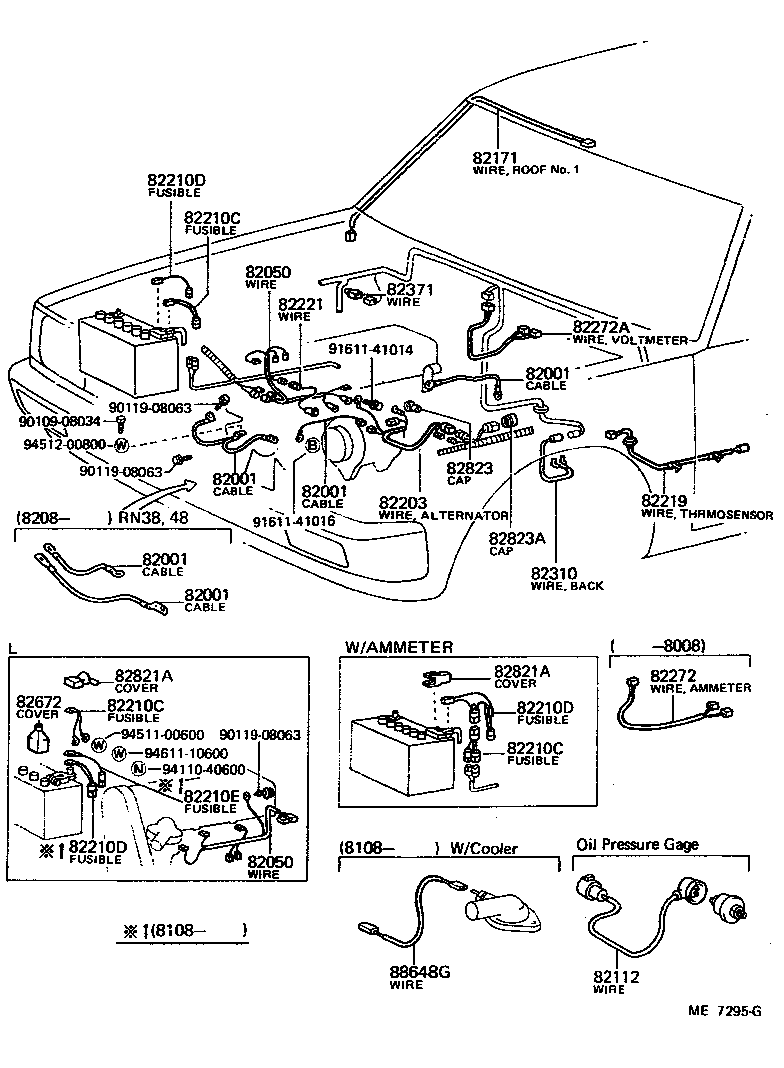

Click highlighted areas on diagram

diagram 82001 82001 82001 82001 82001 82050 82050 82112 82171 82203 82210C 82210C 82210C 82210D 82210D 82210D 82210E 82219 82221 82272 82272A 82310 82371 82672 82821A 82821A 82823 82823A 88648G 9010908034 9011908063 9011908063 9011908063 9161141014 9161141016 9411040600 9451100600 9451200800 9461110600
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07131

RN32,34,42,44

L=310 & 240 APRON-FRAME,ENGINE

 1
90980-07062

RN3#,4#

L=260 DASH-ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07131

RN32,34,42,44

L=310 & 240 APRON-FRAME,ENGINE

 1
90980-07062

RN3#,4#

L=260 DASH-ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07131

RN32,34,42,44

L=310 & 240 APRON-FRAME,ENGINE

 1
90980-07062

RN3#,4#

L=260 DASH-ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07131

RN32,34,42,44

L=310 & 240 APRON-FRAME,ENGINE

 1
90980-07062

RN3#,4#

L=260 DASH-ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07131

RN32,34,42,44

L=310 & 240 APRON-FRAME,ENGINE

 1
90980-07062

RN3#,4#

L=260 DASH-ENGINE HANGER

 1
82171 - WIRE, ROOF, NO.1
82510-89106

LN40,RN3#,4#

 1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-89102

RN32,42

W/IC REGULATOR

 1
82203-89101

RN32,42

 1
82210C - FUSIBLE LINK
90982-08078

RN32,42

 1
82210C - FUSIBLE LINK
90982-08078

RN32,42

 1
82210C - FUSIBLE LINK
90982-08078

RN32,42

 1
82210D - FUSIBLE LINK
90982-08079

RN32,42

 1
82210D - FUSIBLE LINK
90982-08079

RN32,42

 1
82210D - FUSIBLE LINK
90982-08079

RN32,42

 1
82221 - WIRE, OIL PRESSURE SWITCH
82221-89102

RN3#,42

 1
82221-89103

RN32,42..DLX,STD

 1
Common parts
90109-08034
90119-08063
91611-41014
91611-41016
94110-40600
94511-00600
94512-00800
94611-10600

(7808- )

Click highlighted areas on diagram

diagram 8271112200 8271114120 8271122140 8271122150 8271189104 8282322010 8282322020 9046106032 9046106152 9046108202 9046108309 9046304013 9046304079 9046306042 9046306161 9046310010 9046310060 9046310335 9046310337 9046312002 9046315002 9046315003 9046315004 9046315439 9046400039
Part # Description Qty Price
Common parts
82711-12200
82711-14120
82711-22140
82711-22150
82711-89104
82823-22010
82823-22020
90461-06032
90461-06152
90461-08202
90461-08309
90463-04013
90463-04079
90463-06042
90463-06161
90463-10010
90463-10060
90463-10335
90463-10337
90463-12002
90463-15002
90463-15003
90463-15004
90463-15439
90464-00039

(7808- )

Click highlighted areas on diagram

diagram 8271114110 8271189102 8282314010 9046108200 9046108365 9046108413 9046208011 9046310012 9046310024 9046310338 9046312014 9046400072 9046400073 9046400095 9046400156 9046400165 9046400190 9046400277 9046400290 9046400297 9048030011 9095001061
Part # Description Qty Price
Common parts
82711-14110
82711-89102
82823-14010
90461-08200
90461-08365
90461-08413
90462-08011
90463-10012
90463-10024
90463-10338
90463-12014
90464-00072
90464-00073
90464-00095
90464-00156
90464-00165
90464-00190
90464-00277
90464-00290
90464-00297
90480-30011
90950-01061
