RN32L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

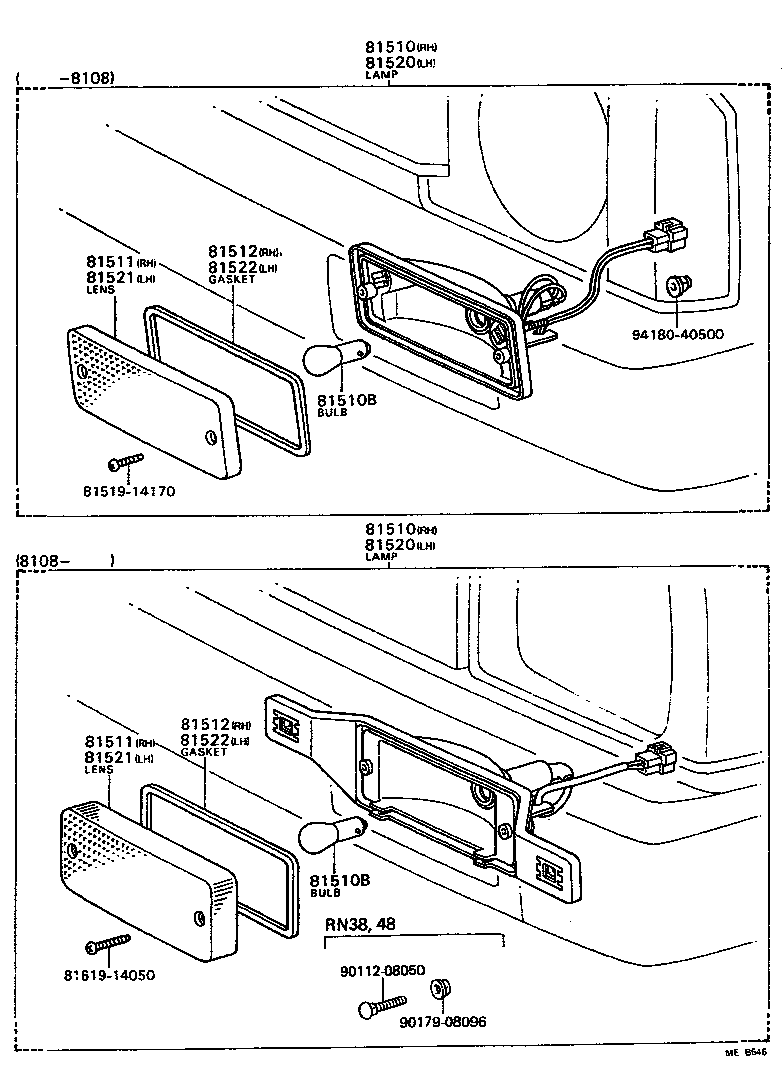

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81511 81512 81512 8151914170 81520 81520 81521 81521 81522 81522 8161914050 9011208050 9017908096 9418040500
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39325

LN40,RN3#,4#

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39325

LN40,RN3#,4#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

LN40,RN3#,4#

12V 23W,12V 23W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

LN40,RN3#,4#

12V 23W,12V 23W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-89118

LN40,RN3#,4#

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-89118

LN40,RN3#,4#

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14150

LN40,RN3#,4#

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14150

LN40,RN3#,4#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39325

LN40,RN3#,4#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39325

LN40,RN3#,4#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-89118

LN40,RN3#,4#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-89118

LN40,RN3#,4#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-14150

LN40,RN3#,4#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-14150

LN40,RN3#,4#

 1
Common parts
81519-14170
81619-14050
90112-08050
90179-08096
94180-40500
