RN32L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

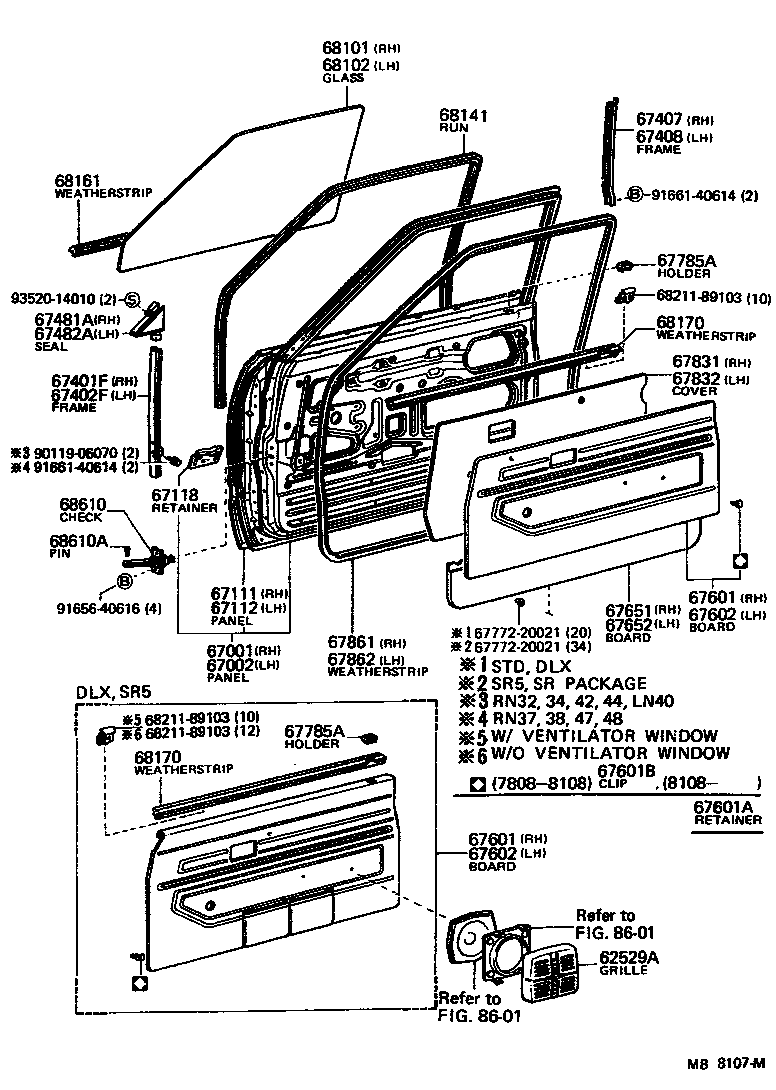

Click highlighted areas on diagram

diagram 62529A 67001 67002 67111 67112 67118 67401F 67402F 67407 67408 67481A 67482A 67601 67601 67601A 67601B 67602 67602 67651 67652 6777220021 6777220021 67785A 67785A 67831 67832 67861 67862 68101 68102 68141 68161 68170 68170 6821189103 6821189103 6821189103 68610 68610A 8601 8601 9011906070 9165640616 9166140614 9166140614 9352014010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-89113

RN3#,42..DLX,STD

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-89118

RN3#,42..(DLX,STD)..(3QT,HLF)

W/*VW

 1
67002-89117

RN32,42..DLX,STD

 1
67002-95111

RN3#,42..(DLX,STD)..(3QT,HLF)

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-89106

RN3#,42

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-89108

RN3#,42

 1
67118 - RETAINER, OUTER MIRROR
67119-89101

LN40,RN32,34,42,44..3QT,HLF

LH

 1
67119-89102

LN40,RN3#,4#..3QT,HLF

LH,W/*VW

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-89106

LN40,RN3#,4#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-89106

LN40,RN3#,4#

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67433-89101

LN40,RN3#,4#

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67434-89101

LN40,RN3#,4#

 1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-89105

LN40,RN3#,4#

 1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67481-89105

LN40,RN3#,4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-8911601

LN40,RN3#,4#..DLX

BLACK,BLACK

 1
67610-8911605

LN40,RN3#,4#..DLX

BEIGE,BEIGE

 1
67610-8911604

LN40,RN3#,4#..DLX

BLUE,BLUE

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-8911601

LN40,RN3#,4#..DLX

BLACK,BLACK

 1
67610-8911605

LN40,RN3#,4#..DLX

BEIGE,BEIGE

 1
67610-8911604

LN40,RN3#,4#..DLX

BLUE,BLUE

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-11002

LN40,RN3#,4#

 18
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-8911505

LN40,RN3#,4#..DLX

BEIGE,BEIGE

 1
67620-8911501

LN40,RN3#,4#..DLX

BLACK,BLACK

 1
67620-8911504

LN40,RN3#,4#..DLX

BLUE,BLUE

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-8911505

LN40,RN3#,4#..DLX

BEIGE,BEIGE

 1
67620-8911501

LN40,RN3#,4#..DLX

BLACK,BLACK

 1
67620-8911504

LN40,RN3#,4#..DLX

BLUE,BLUE

 1
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
69751-20040

LN40,RN3#,4#..DLX,SR5

 2
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
69751-20040

LN40,RN3#,4#..DLX,SR5

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-89104

LN40,RN32,34,42,44

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-89104

LN40,RN32,34,42,44

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-89104

LN40,RN3#,4#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-89103

LN40,RN3#,4#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-89108

LN40,RN3#,4#..DLX,SR5

*TT,T=4.0,W/O *VW,*TT,T=4.0

 1
68111-89107

LN40,RN3#,4#..DLX,STD

*TEM,T=4.0,W/O *VW,*TEM,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-89106

LN40,RN3#,4#..DLX,STD

*TEM,T=4.0,W/O *VW,*TEM,T=4.0

 1
68112-89107

LN40,RN3#,4#..DLX,SR5

*TT,T=4.0,W/O *VW,*TT,T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-89105

LN40,RN3#,4#

W/O *VW

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-89104

LN40,RN3#,4#

W/O *VW

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-89101

LN40,RN3#,4#..DLX,SR5

LH,W/O *VW

 1
68170-89108

LN40,RN3#,4#..DLX,SR5

RH,W/O *VW

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-89101

LN40,RN3#,4#..DLX,SR5

LH,W/O *VW

 1
68170-89108

LN40,RN3#,4#..DLX,SR5

RH,W/O *VW

 1
68610 - CHECK ASSY, FRONT DOOR
68610-89101

LN40,RN3#,4#

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-22010

LN40,RN3#,4#

 2
Common parts
67772-20021
68211-89103
90119-06070
91656-40616
91661-40614
93520-14010
Linked diagrams
8601
