RN32L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

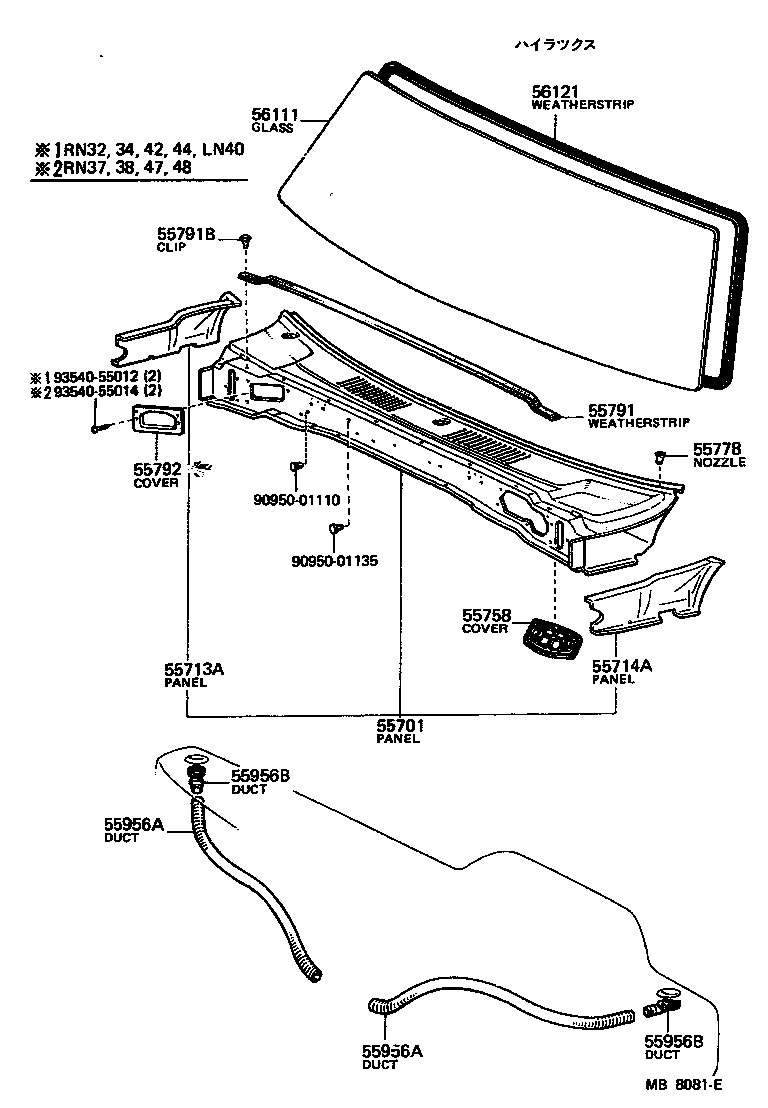

Click highlighted areas on diagram

diagram 55701 55713A 55714A 55758 55778 55791 55791B 55792 55956A 55956A 55956B 55956B 56111 56121 9095001110 9095001135 9354055012 9354055014
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55700-89102

RN32,42

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-89103

LN40,RN32,34,42,44

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-89103

LN40,RN32,34,42,44

 1
55758 - COVER, HEATER AIR DUCT
55759-89102

LN40,RN3#,4#..USA

 1
55778 - NOZZLE, COWL WATER EXTRACT
55798-89102

RN32,42

 2
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-89104

LN40,RN3#,4#

 1
55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)
90467-07050

RN3#,42

 8
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-89105

LN40,RN3#,4#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-89101

LN40,RN3#,4#

 2
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-89101

LN40,RN3#,4#

 2
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55961-89101

LN40,RN3#,4#

 2
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55961-89101

LN40,RN3#,4#

 2
56111 - GLASS, WINDSHIELD
56111-89117

RN3#,42..DLX,SR5

*TL,T=5.7

 1
56111-89116

LN40,RN3#,4#..DLX,STD

*LAM,T=5.7

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-89112

RN32,42..DLX,SR5

W/MOULDING

 1
Common parts
90950-01110
90950-01135
93540-55012
93540-55014
