RN32L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

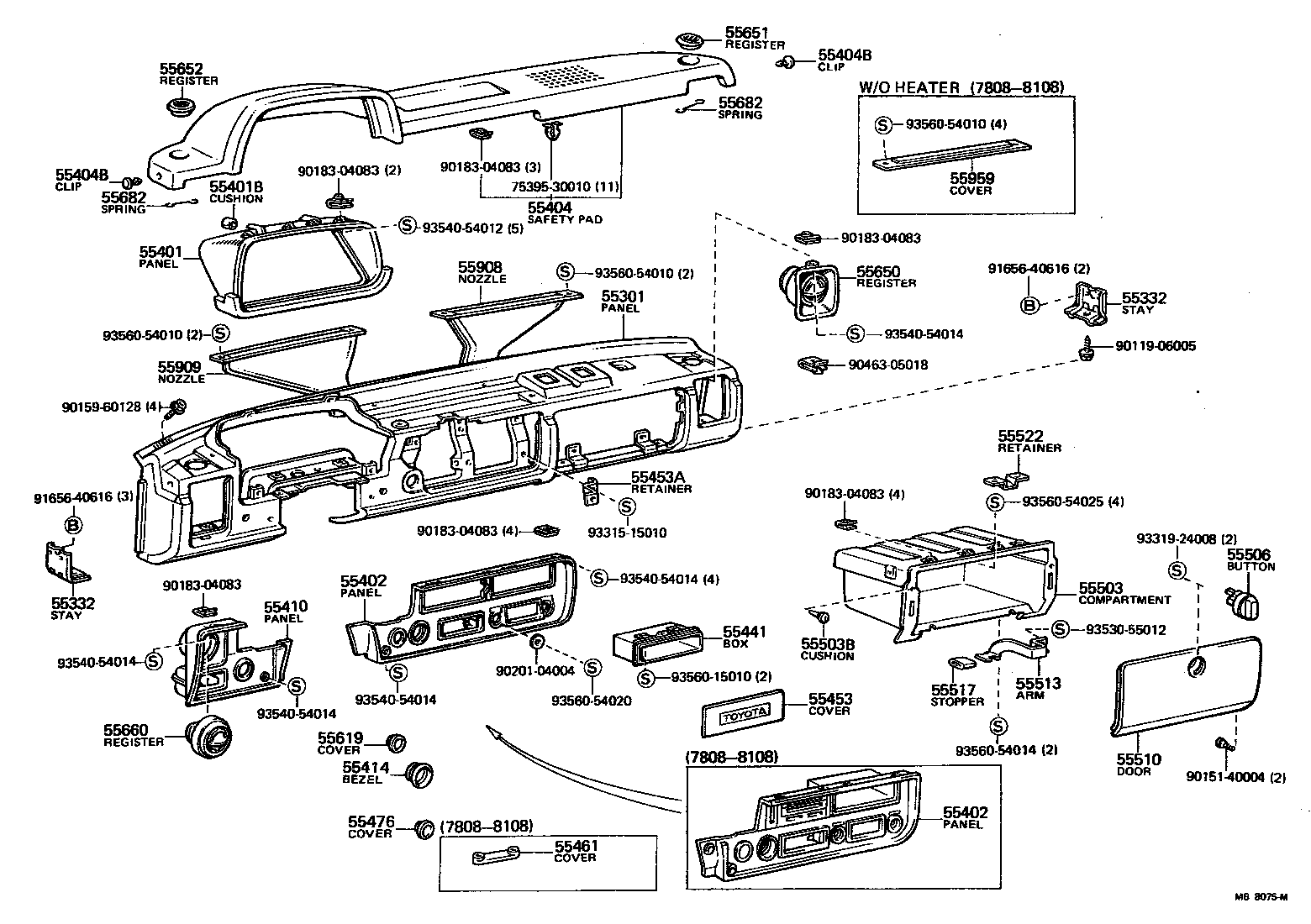

Click highlighted areas on diagram

diagram 55301 55332 55332 55401 55401B 55402 55402 55404 55404B 55404B 55410 55414 55441 55453 55453A 55461 55476 55503 55503B 55506 55510 55513 55517 55522 55619 55650 55651 55652 55660 55682 55682 55908 55909 55959 7539530010 9011906005 9015140004 9015960128 9018304083 9018304083 9018304083 9018304083 9018304083 9018304083 9020104004 9046305018 9165640616 9165640616 9331515010 9331924008 9353055012 9354054012 9354054014 9354054014 9354054014 9354054014 9354054014 9356015010 9356054010 9356054010 9356054010 9356054014 9356054020 9356054025
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-89114

RN3#,42

 1
55332 - STAY, INSTRUMENT PANEL
55327-89102

LN40,RN3#,4#

LH

 1
55326-89101

LN40,RN3#,4#

RH

 1
55332 - STAY, INSTRUMENT PANEL
55327-89102

LN40,RN3#,4#

LH

 1
55326-89101

LN40,RN3#,4#

RH

 1
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55411-8910305

LN40,RN3#,4#

BEIGE,BEIGE

 1
55411-8910304

LN40,RN3#,4#

BLUE,BLUE

 1
55411-8910301

LN40,RN3#,4#

BLACK,BLACK

 1
55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL
55419-89101

LN40,RN3#,4#

 2
55402 - PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER
55434-89109

RN3#,42..DLX

 1
55402 - PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER
55434-89109

RN3#,42..DLX

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55401-8910401

RN3#,42

W/SIDE DEFROSTER,BLACK,BLACK

 1
55401-8910301

RN3#,42..USA

W/O SIDE DEFROSTER,BLACK,BLACK

 1
55401-8910304

RN3#,42..USA

W/O SIDE DEFROSTER,BLUE,BLUE

 1
55401-8910305

RN3#,42..USA

W/O SIDE DEFROSTER,BEIGE,BEIGE

 1
55401-8910405

RN3#,42

W/SIDE DEFROSTER,BEIGE,BEIGE

 1
55401-8910404

RN3#,42

W/SIDE DEFROSTER,BLUE,BLUE

 1
55404B - CLIP, SAFETY PAD SET
55466-8910105

LN40,RN3#,4#

BEIGE,BEIGE

 2
55466-8910104

LN40,RN3#,4#

BLUE,BLUE

 2
55466-8910101

LN40,RN3#,4#

BLACK,BLACK

 2
55404B - CLIP, SAFETY PAD SET
55466-8910105

LN40,RN3#,4#

BEIGE,BEIGE

 2
55466-8910104

LN40,RN3#,4#

BLUE,BLUE

 2
55466-8910101

LN40,RN3#,4#

BLACK,BLACK

 2
55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-8911003

LN40,RN3#,4#..DLX,STD

D-SILVER-M,GRAY

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55477-89101

LN40,RN3#,4#

 1
55453 - COVER, RADIO TUNER OPENING
55522-8910103

LN40,RN3#,4#..DLX,STD

GRAY,GRAY

 1
55453A - RETAINER, RADIO TUNER OPENING, NO.1
55437-89102

LN40,RN3#,4#..DLX,STD

 1
55461 - COVER, HEATER CONTROL HOLE
55535-8910103

RN3#,4#..USA

GRAY,GRAY

 1
55503 - COMPARTMENT SUB-ASSY, GLOVE
55506-89101

LN40,RN3#,4#

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-04006

RN3#,42

 2
55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK
55560-12020

LN40,RN3#,4#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-8910404

LN40,RN3#,4#

BLUE,BLUE

 1
55501-8910401

LN40,RN3#,4#

BLACK,BLACK

 1
55501-8910405

LN40,RN3#,4#

BEIGE,BEIGE

 1
55513 - ARM, GLOVE COMPARTMENT DOOR CHECK
55556-89102

LN40,RN3#,4#

 1
55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM
55517-89104

LN40,RN3#,4#

 1
55522 - RETAINER, GLOVE COMPARTMENT MALE
55561-89102

LN40,RN3#,4#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-8910103

LN40,RN3#,4#..DLX,STD

DARK GRAY-M,GRAY

 1
55651 - REGISTER, INSTRUMENT PANEL, NO.1
55671-8911205

LN40,RN3#,4#

BEIGE,BEIGE

 1
55671-8911204

LN40,RN3#,4#

BLUE,BLUE

 1
55671-8911201

LN40,RN3#,4#

BLACK,BLACK

 1
55652 - REGISTER, INSTRUMENT PANEL, NO.2
55671-8911305

LN40,RN3#,4#

BEIGE,BEIGE

 1
55671-8911304

LN40,RN3#,4#

BLUE,BLUE

 1
55671-8911301

LN40,RN3#,4#

BLACK,BLACK

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-89103

LN40,RN3#,4#

 1
55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT
55686-89101

LN40,RN3#,4#

 2
55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT
55686-89101

LN40,RN3#,4#

 2
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55950-89101

LN40,RN3#,4#

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55960-89101

LN40,RN3#,4#

 1
55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1
55959-89101

LN40,RN3#,4#..USA

 1
Common parts
75395-30010
90119-06005
90151-40004
90159-60128
90183-04083
90201-04004
90463-05018
91656-40616
93315-15010
93319-24008
93530-55012
93540-54012
93540-54014
93560-15010
93560-54010
93560-54014
93560-54020
93560-54025
