RN32L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

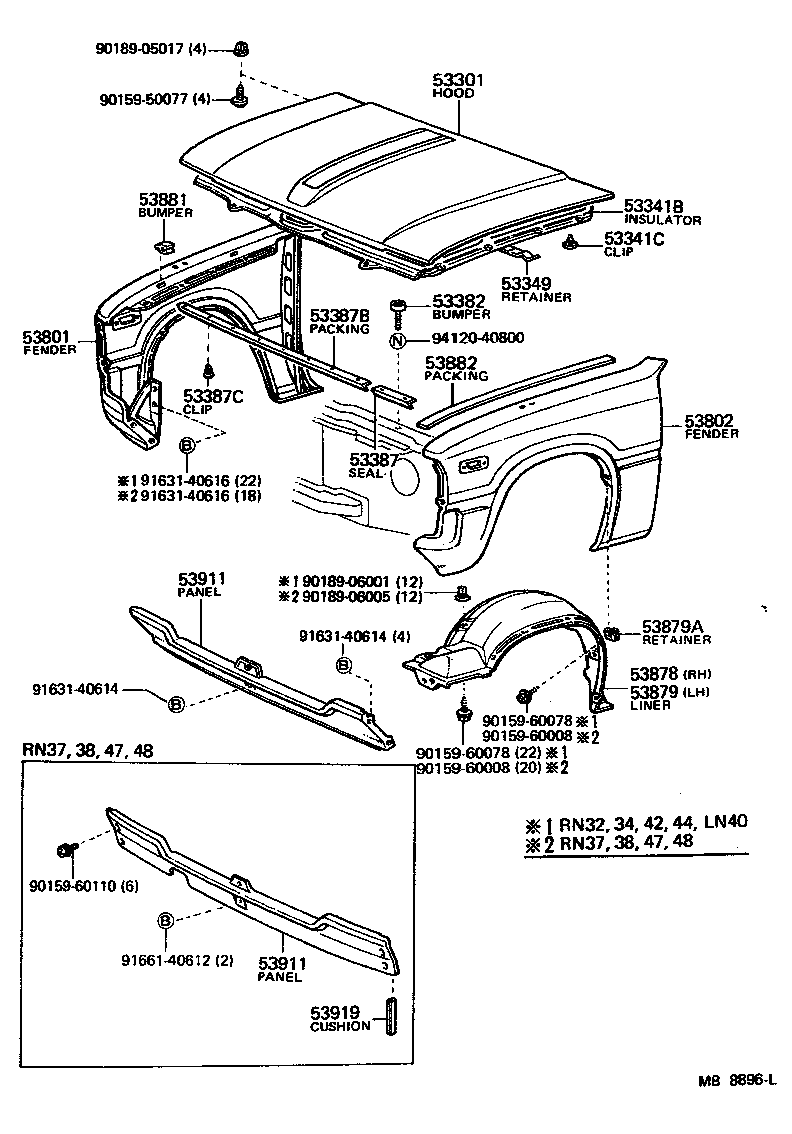

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53349 53382 53387 53387B 53387C 53801 53802 53878 53879 53879A 53881 53882 53911 53911 53919 9015950077 9015960008 9015960008 9015960078 9015960078 9015960110 9018905017 9018906001 9018906005 9163140614 9163140614 9163140616 9163140616 9166140612 9412040800
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-89115

LN40,RN3#,4#

 1
53382 - BUMPER, HOOD, FRONT
53382-20011

LN40,RN3#,4#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-89145

LN40,RN32,34,42,44

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-89139

LN40,RN32,34,42,44

 1
53878 - LINER, FRONT FENDER, RH
53875-89102

LN40,RN32,34,42,44

 1
53879 - LINER, FRONT FENDER, LH
53876-89102

LN40,RN32,34,42,44

 1
53879A - RETAINER, FRONT FENDER LINER
53879-22010

LN40,RN32,34,42,44

 10
53881 - BUMPER, FENDER TO HOOD
53384-89101

LN40,RN3#,4#

 4
53882 - PACKING, FRONT FENDER MAIN
53882-89103

LN40,RN3#,4#

 2
53911 - PANEL, FRONT VALANCE
53911-89104

LN40,RN32,34,42,44

 1
53911 - PANEL, FRONT VALANCE
53911-89104

LN40,RN32,34,42,44

 1
Common parts
90159-50077
90159-60008
90159-60078
90159-60110
90189-05017
90189-06001
90189-06005
91631-40614
91631-40616
91661-40612
94120-40800
