RN32L-KDA (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )RN32,34,42,44..HLF

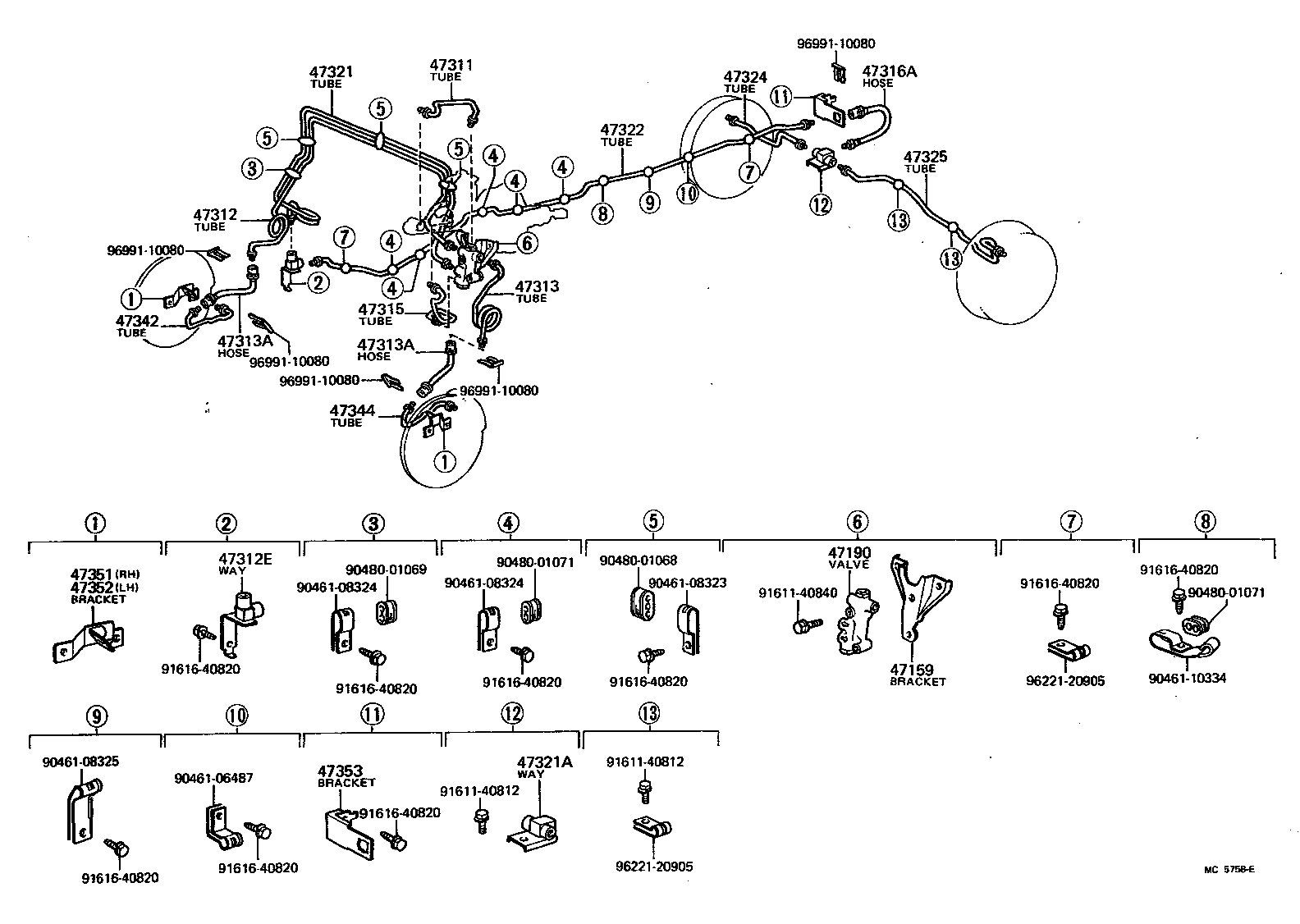

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-35030 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-35010 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35300 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-35260 |
RN32,34,42,44..HLF |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10049 |
LN40,RN3#,4# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35210 |
RN32,34,42,44..HLF |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02379 |
LN40,RN32,34,42,44..3QT,HLF |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02379 |
LN40,RN32,34,42,44..3QT,HLF |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47321-35080 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96910-30445 |
RN32,42 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35100 |
RN32,34,42,44..HLF |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10054 |
LN40,RN32,34,42,44 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35030 |
RN32,34 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35020 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35030 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35020 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35020 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47354-35030 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47355-35030 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35040 |
LN40,RN32,34,42,44..HLF |
1 | ||
| Common parts | ||||
| 90461-06487 | ||||
| 90461-08323 | ||||
| 90461-08324 | ||||
| 90461-08325 | ||||
| 90461-10334 | ||||
| 90480-01068 | ||||
| 90480-01069 | ||||
| 90480-01071 | ||||
| 91611-40812 | ||||
| 91611-40840 | ||||
| 91616-40820 | ||||
| 96221-20905 | ||||
| 96991-10080 | ||||
