RN32L-KDA (1978)
Toyota Pickup

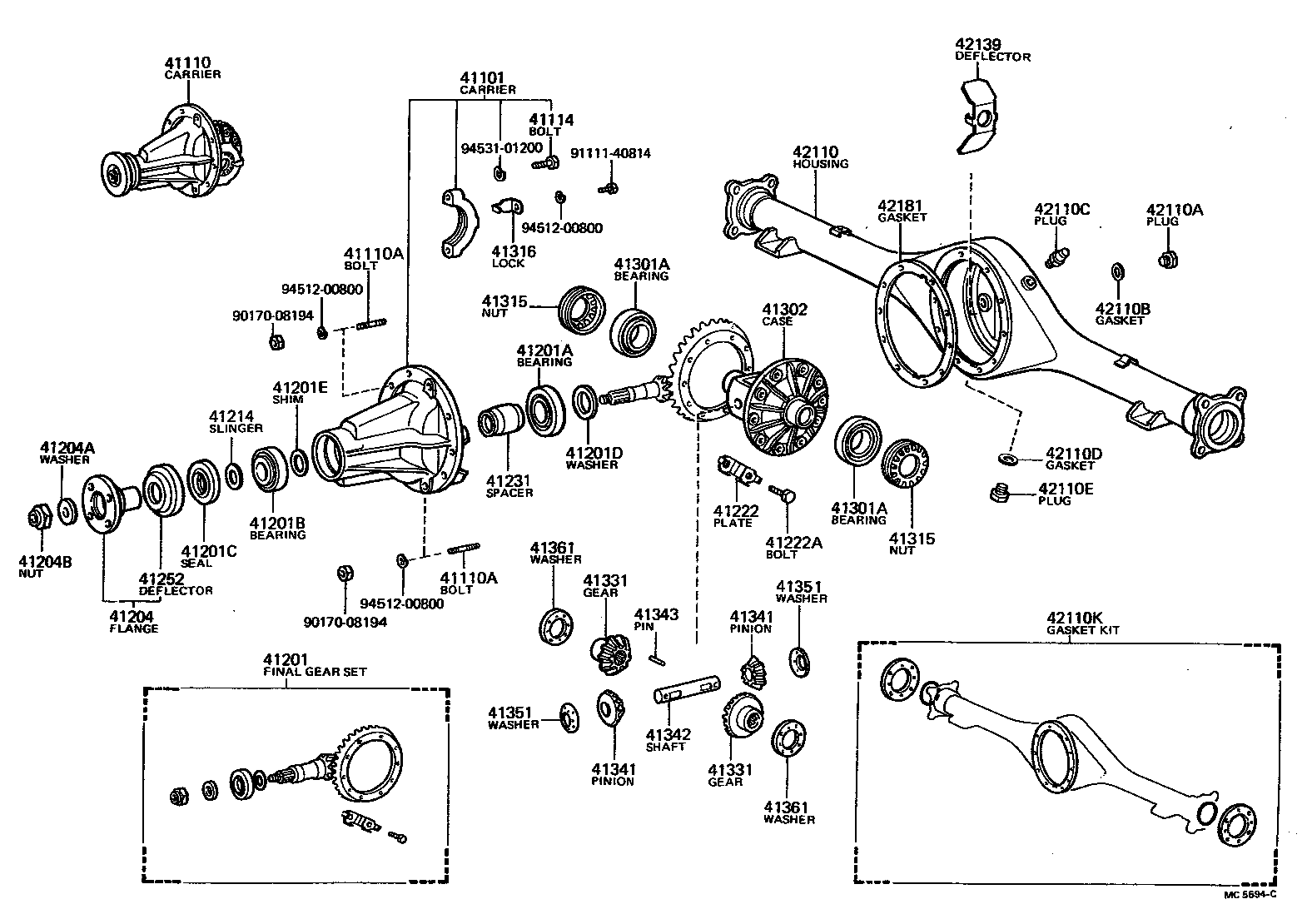

(7901-8008)RN37,47 ; (7901-8008)3QT,HVY ; (7901-8008)RN37,47 ; (7901-8008)3QT,HVY ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30030 |
RN32,42..HLF |
1 | ||
| 41101-30030 |
RN32,42..HLF |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-30092 |
RN32,42..HLF R=41:10=4.100 |
1 | ||
| 41110-30092 |
RN32,42..HLF R=41:10=4.100 |
1 | ||
| 41110-30091 |
RN32,42..HLF R=41:10=4.100 |
1 | ||
| 41110-30091 |
RN32,42..HLF R=41:10=4.100 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08196 |
RN32,42..HLF L=34,S=14,L=34,S=14 & 14 |
10 | ||
| 90116-08196 |
RN32,42..HLF L=34,S=14,L=34,S=14 & 14 |
10 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08196 |
RN32,42..HLF L=34,S=14,L=34,S=14 & 14 |
10 | ||
| 90116-08196 |
RN32,42..HLF L=34,S=14,L=34,S=14 & 14 |
10 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
LN40,RN3#,4# |
4 | ||
| 90101-12376 |
LN40,RN3#,4# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39158 |
RN32,42..HLF *FGR=41:10=4.100,N=41:10 |
1 | ||
| 41201-39158 |
RN32,42..HLF *FGR=41:10=4.100,N=41:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
RN32,42..HLF |
1 | ||
| 90366-35023 |
RN32,42..HLF |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
RN32,42..HLF |
1 | ||
| 90366-30022 |
RN32,42..HLF |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
LN40,RN32,34,42,44 |
1 | ||
| 90311-38133 |
LN40,RN32,34,42,44 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35396 |
RN32,42..HLF T=2.36,MARK 05,T=2.35-2.37 |
1 | ||
| 90201-35396 |
RN32,42..HLF T=2.36,MARK 05,T=2.35-2.37 |
1 | ||
| 90201-35398 |
RN32,42..HLF T=2.42,MARK 07,T=2.41-2.43 |
1 | ||
| 90201-35398 |
RN32,42..HLF T=2.42,MARK 07,T=2.41-2.43 |
1 | ||
| 90201-35397 |
RN32,42..HLF T=2.39,MARK 06,T=2.38-2.40 |
1 | ||
| 90201-35397 |
RN32,42..HLF T=2.39,MARK 06,T=2.38-2.40 |
1 | ||
| 90201-35401 |
RN32,42..HLF T=2.51,MARK 10,T=2.50-2.52 |
1 | ||
| 90201-35401 |
RN32,42..HLF T=2.51,MARK 10,T=2.50-2.52 |
1 | ||
| 90201-35434 |
RN32,42..HLF T=2.24,MARK 01,T=2.23-2.25 |
1 | ||
| 90201-35434 |
RN32,42..HLF T=2.24,MARK 01,T=2.23-2.25 |
1 | ||
| 90201-35400 |
RN32,42..HLF T=2.48,MARK 09,T=2.47-2.49 |
1 | ||
| 90201-35400 |
RN32,42..HLF T=2.48,MARK 09,T=2.47-2.49 |
1 | ||
| 90201-35440 |
RN32,42..HLF T=2.69,MARK 16,T=2.68-2.70 |
1 | ||
| 90201-35440 |
RN32,42..HLF T=2.69,MARK 16,T=2.68-2.70 |
1 | ||
| 90201-35399 |
RN32,42..HLF T=2.43,MARK 08,T=2.44-2.46 |
1 | ||
| 90201-35399 |
RN32,42..HLF T=2.43,MARK 08,T=2.44-2.46 |
1 | ||
| 90201-35436 |
RN32,42..HLF T=2.30,MARK 03,T=2.29-2.31 |
1 | ||
| 90201-35436 |
RN32,42..HLF T=2.30,MARK 03,T=2.29-2.31 |
1 | ||
| 90201-35438 |
RN32,42..HLF T=2.63,MARK 14,T=2.62-2.64 |
1 | ||
| 90201-35438 |
RN32,42..HLF T=2.63,MARK 14,T=2.62-2.64 |
1 | ||
| 90201-35435 |
RN32,42..HLF T=2.27,MARK 02,T=2.26-2.28 |
1 | ||
| 90201-35435 |
RN32,42..HLF T=2.27,MARK 02,T=2.26-2.28 |
1 | ||
| 90201-35403 |
RN32,42..HLF T=2.57,MARK 12,T=2.56-2.58 |
1 | ||
| 90201-35403 |
RN32,42..HLF T=2.57,MARK 12,T=2.56-2.58 |
1 | ||
| 90201-35439 |
RN32,42..HLF T=2.66,MARK 15,T=2.65-2.67 |
1 | ||
| 90201-35439 |
RN32,42..HLF T=2.66,MARK 15,T=2.65-2.67 |
1 | ||
| 90201-35402 |
RN32,42..HLF T=2.54,MARK 11,T=2.53-2.55 |
1 | ||
| 90201-35402 |
RN32,42..HLF T=2.54,MARK 11,T=2.53-2.55 |
1 | ||
| 90201-35441 |
RN32,42..HLF T=2.72,MARK 17,T=2.71-2.73 |
1 | ||
| 90201-35441 |
RN32,42..HLF T=2.72,MARK 17,T=2.71-2.73 |
1 | ||
| 90201-35437 |
RN32,42..HLF T=2.33,MARK 04,T=2.32-2.34 |
1 | ||
| 90201-35437 |
RN32,42..HLF T=2.33,MARK 04,T=2.32-2.34 |
1 | ||
| 90201-35404 |
RN32,42..HLF T=2.60,MARK 13,T=2.59-2.61 |
1 | ||
| 90201-35404 |
RN32,42..HLF T=2.60,MARK 13,T=2.59-2.61 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-30020 |
RN32,42..HLF |
1 | ||
| 41204-30020 |
RN32,42..HLF |
1 | ||
| 41204-30021 |
RN32,42..HLF |
1 | ||
| 41204-30021 |
RN32,42..HLF |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
RN32,42..HLF |
1 | ||
| 90201-18485 |
RN32,42..HLF |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
RN32,42..HLF |
1 | ||
| 90179-18001 |
RN32,42..HLF |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
RN32,42..HLF |
1 | ||
| 41214-30021 |
RN32,42..HLF |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30040 |
RN32,42..HLF |
5 | ||
| 41222-30040 |
RN32,42..HLF |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LN40,RN3#,4# |
10 | ||
| 90101-11353 |
LN40,RN3#,4# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
RN32,42..HLF |
1 | ||
| 41231-22010 |
RN32,42..HLF |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
RN32,42..HLF |
1 | ||
| 41252-30010 |
RN32,42..HLF |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN40,RN3#,4# |
2 | ||
| 90368-45066 |
LN40,RN3#,4# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN40,RN3#,4# |
2 | ||
| 90368-45066 |
LN40,RN3#,4# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-30050 |
RN32,42..HLF |
1 | ||
| 41311-30050 |
RN32,42..HLF |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LN40,RN3#,4# |
2 | ||
| 41315-35010 |
LN40,RN3#,4# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LN40,RN3#,4# |
2 | ||
| 41315-35010 |
LN40,RN3#,4# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LN40,RN3#,4# SINGLE TYPE |
2 | ||
| 41316-30010 |
LN40,RN3#,4# SINGLE TYPE |
2 | ||
| 41317-30010 |
RN32,42..HLF DOUBLE TYPE |
2 | ||
| 41317-30010 |
RN32,42..HLF DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
RN32,42..HLF |
2 | ||
| 41331-30030 |
RN32,42..HLF |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
RN32,42..HLF |
2 | ||
| 41331-30030 |
RN32,42..HLF |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RN32,42..HLF |
2 | ||
| 41341-30020 |
RN32,42..HLF |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RN32,42..HLF |
2 | ||
| 41341-30020 |
RN32,42..HLF |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-30030 |
RN32,42..HLF |
1 | ||
| 41342-30030 |
RN32,42..HLF |
1 | ||
| 41342-22020 |
RN32,42..HLF |
1 | ||
| 41342-22020 |
RN32,42..HLF |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
RN32,42..HLF |
1 | ||
| 90250-06058 |
RN32,42..HLF |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RN32,42..HLF |
2 | ||
| 41351-30060 |
RN32,42..HLF |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RN32,42..HLF |
2 | ||
| 41351-30060 |
RN32,42..HLF |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30040 |
RN32,42..HLF T=1.0,T=1.0 |
2 | ||
| 41361-30040 |
RN32,42..HLF T=1.0,T=1.0 |
2 | ||
| 41361-30070 |
RN32,42..HLF T=1.3,T=1.3 |
2 | ||
| 41361-30070 |
RN32,42..HLF T=1.3,T=1.3 |
2 | ||
| 41361-30050 |
RN32,42..HLF T=1.1,T=1.1 |
2 | ||
| 41361-30050 |
RN32,42..HLF T=1.1,T=1.1 |
2 | ||
| 41361-30060 |
RN32,42..HLF T=1.2,T=1.2 |
2 | ||
| 41361-30060 |
RN32,42..HLF T=1.2,T=1.2 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30040 |
RN32,42..HLF T=1.0,T=1.0 |
2 | ||
| 41361-30040 |
RN32,42..HLF T=1.0,T=1.0 |
2 | ||
| 41361-30070 |
RN32,42..HLF T=1.3,T=1.3 |
2 | ||
| 41361-30070 |
RN32,42..HLF T=1.3,T=1.3 |
2 | ||
| 41361-30050 |
RN32,42..HLF T=1.1,T=1.1 |
2 | ||
| 41361-30050 |
RN32,42..HLF T=1.1,T=1.1 |
2 | ||
| 41361-30060 |
RN32,42..HLF T=1.2,T=1.2 |
2 | ||
| 41361-30060 |
RN32,42..HLF T=1.2,T=1.2 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-35120 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 42110-35120 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
LN40,RN3#,4# |
1 | ||
| 90341-18049 |
LN40,RN3#,4# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
LN40,RN3#,4# |
1 | ||
| 12157-10010 |
LN40,RN3#,4# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LN40,RN3#,4# |
1 | ||
| 90930-03031 |
LN40,RN3#,4# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
LN40,RN3#,4# |
1 | ||
| 12157-10010 |
LN40,RN3#,4# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
LN40,RN3#,4# |
1 | ||
| 90341-18057 |
LN40,RN3#,4# |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-35030 |
RN32,42..HLF |
1 | ||
| 04412-35030 |
RN32,42..HLF |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-35010 |
RN3#,4# |
2 | ||
| 42139-35010 |
RN3#,4# |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30020 |
RN32,42..HLF |
1 | ||
| 42181-30020 |
RN32,42..HLF |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||

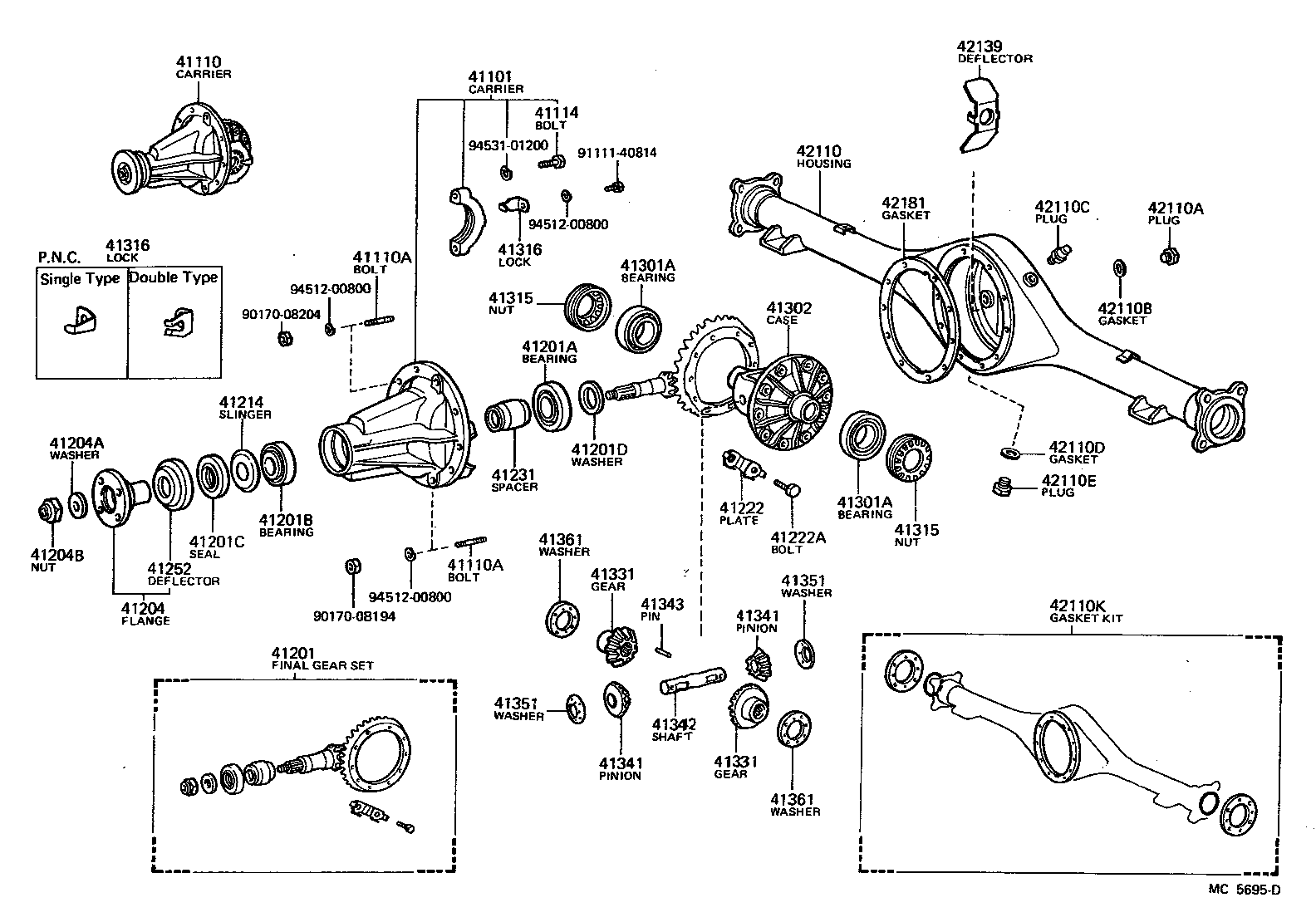

(7808-8008)RN32,42..HLF ; (7808-8008)RN32,42..HLF ; (8008- )LN40,RN34,44..3QT,HL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30030 |
RN32,42..HLF |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-30092 |
RN32,42..HLF R=41:10=4.100 |
1 | ||
| 41110-30091 |
RN32,42..HLF R=41:10=4.100 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08196 |
RN32,42..HLF L=34,S=14,L=34,S=14 & 14 |
10 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08196 |
RN32,42..HLF L=34,S=14,L=34,S=14 & 14 |
10 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
LN40,RN3#,4# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39158 |
RN32,42..HLF *FGR=41:10=4.100,N=41:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
RN32,42..HLF |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
RN32,42..HLF |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
LN40,RN32,34,42,44 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35396 |
RN32,42..HLF T=2.36,MARK 05,T=2.35-2.37 |
1 | ||
| 90201-35398 |
RN32,42..HLF T=2.42,MARK 07,T=2.41-2.43 |
1 | ||
| 90201-35397 |
RN32,42..HLF T=2.39,MARK 06,T=2.38-2.40 |
1 | ||
| 90201-35401 |
RN32,42..HLF T=2.51,MARK 10,T=2.50-2.52 |
1 | ||
| 90201-35434 |
RN32,42..HLF T=2.24,MARK 01,T=2.23-2.25 |
1 | ||
| 90201-35400 |
RN32,42..HLF T=2.48,MARK 09,T=2.47-2.49 |
1 | ||
| 90201-35440 |
RN32,42..HLF T=2.69,MARK 16,T=2.68-2.70 |
1 | ||
| 90201-35399 |
RN32,42..HLF T=2.43,MARK 08,T=2.44-2.46 |
1 | ||
| 90201-35436 |
RN32,42..HLF T=2.30,MARK 03,T=2.29-2.31 |
1 | ||
| 90201-35438 |
RN32,42..HLF T=2.63,MARK 14,T=2.62-2.64 |
1 | ||
| 90201-35435 |
RN32,42..HLF T=2.27,MARK 02,T=2.26-2.28 |
1 | ||
| 90201-35403 |
RN32,42..HLF T=2.57,MARK 12,T=2.56-2.58 |
1 | ||
| 90201-35439 |
RN32,42..HLF T=2.66,MARK 15,T=2.65-2.67 |
1 | ||
| 90201-35402 |
RN32,42..HLF T=2.54,MARK 11,T=2.53-2.55 |
1 | ||
| 90201-35441 |
RN32,42..HLF T=2.72,MARK 17,T=2.71-2.73 |
1 | ||
| 90201-35437 |
RN32,42..HLF T=2.33,MARK 04,T=2.32-2.34 |
1 | ||
| 90201-35404 |
RN32,42..HLF T=2.60,MARK 13,T=2.59-2.61 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-30020 |
RN32,42..HLF |
1 | ||
| 41204-30021 |
RN32,42..HLF |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
RN32,42..HLF |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
RN32,42..HLF |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
RN32,42..HLF |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30040 |
RN32,42..HLF |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LN40,RN3#,4# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
RN32,42..HLF |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
RN32,42..HLF |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN40,RN3#,4# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LN40,RN3#,4# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-30050 |
RN32,42..HLF |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LN40,RN3#,4# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LN40,RN3#,4# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LN40,RN3#,4# SINGLE TYPE |
2 | ||
| 41317-30010 |
RN32,42..HLF DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LN40,RN3#,4# SINGLE TYPE |
2 | ||
| 41317-30010 |
RN32,42..HLF DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
RN32,42..HLF |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
RN32,42..HLF |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RN32,42..HLF |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RN32,42..HLF |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-30030 |
RN32,42..HLF |
1 | ||
| 41342-22020 |
RN32,42..HLF |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
RN32,42..HLF |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RN32,42..HLF |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RN32,42..HLF |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30040 |
RN32,42..HLF T=1.0,T=1.0 |
2 | ||
| 41361-30070 |
RN32,42..HLF T=1.3,T=1.3 |
2 | ||
| 41361-30050 |
RN32,42..HLF T=1.1,T=1.1 |
2 | ||
| 41361-30060 |
RN32,42..HLF T=1.2,T=1.2 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30040 |
RN32,42..HLF T=1.0,T=1.0 |
2 | ||
| 41361-30070 |
RN32,42..HLF T=1.3,T=1.3 |
2 | ||
| 41361-30050 |
RN32,42..HLF T=1.1,T=1.1 |
2 | ||
| 41361-30060 |
RN32,42..HLF T=1.2,T=1.2 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-35120 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
LN40,RN3#,4# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
LN40,RN3#,4# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LN40,RN3#,4# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
LN40,RN3#,4# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
LN40,RN3#,4# |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-35030 |
RN32,42..HLF |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-35010 |
RN3#,4# |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30020 |
RN32,42..HLF |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 90170-08204 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
