RN32L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RN32,34

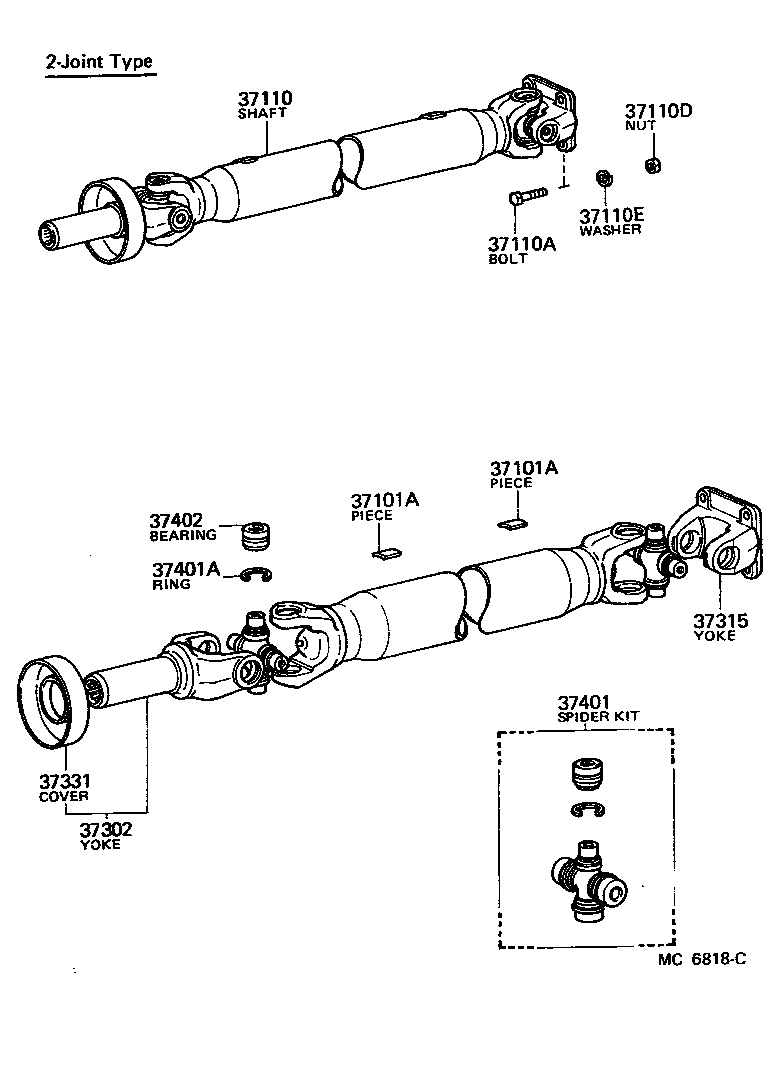

Click highlighted areas on diagram

diagram 37101A 37101A 37110 37110A 37110D 37110E 37302 37315 37331 37401 37401A 37402
Part # Description Qty Price
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01029

LN40,RN32,34,42,44

5G,SPOT

 1
90937-01132

LN40,RN32,34,42,44

10G,L=20.7,10G,PROJECTION

 1
90937-01003

LN40,RN32,34,42,44

8G,T=1.2,10G,SPOT

 1
90937-01031

LN40,RN32,34,42,44

25G,SPOT

 1
90937-01147

LN40,RN32,34,42,44

2G,T=2.0,2G,PROJECTION

 1
90937-01030

LN40,RN32,34,42,44

15G,SPOT

 1
90937-01136

LN40,RN32,34,42,44

20G,L=41.4,20G,PROJECTION

 1
90937-01005

LN40,RN32,34,42,44

30G,T=1.2,30G,SPOT

 1
90937-01152

LN40,RN32,34,42,44

14G,L=29.0,14G,PROJECTION

 1
90937-01149

LN40,RN32,34,42,44

6G,L=12.4,6G,PROJECTION

 1
90937-01156

LN40,RN32,34,42,44

24G,L=49.7,24G,PROJECTION

 1
90937-01153

LN40,RN32,34,42,44

16G,L=33.2,16G,PROJECTION

 1
90937-01004

LN40,RN32,34,42,44

20G,T=1.2,20G,SPOT

 1
90937-01154

LN40,RN32,34,42,44

18G,L=37.3,18G,PROJECTION

 1
90937-01150

LN40,RN32,34,42,44

8G,L=16.6,8G,PROJECTION

 1
90937-01140

LN40,RN32,34,42,44

30G,L=62.2,30G,PROJECTION

 1
90937-01148

LN40,RN32,34,42,44

4G,T=2.0,4G,PROJECTION

 1
90937-01158

LN40,RN32,34,42,44

28G,L=58.1,28G,PROJECTION

 1
90937-01155

LN40,RN32,34,42,44

22G,L=45.6,22G,PROJECTION

 1
90937-01151

LN40,RN32,34,42,44

12G,L=24.9,12G,PROJECTION

 1
90937-01157

LN40,RN32,34,42,44

26G,L=53.9,26G,PROJECTION

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01029

LN40,RN32,34,42,44

5G,SPOT

 1
90937-01132

LN40,RN32,34,42,44

10G,L=20.7,10G,PROJECTION

 1
90937-01003

LN40,RN32,34,42,44

8G,T=1.2,10G,SPOT

 1
90937-01031

LN40,RN32,34,42,44

25G,SPOT

 1
90937-01147

LN40,RN32,34,42,44

2G,T=2.0,2G,PROJECTION

 1
90937-01030

LN40,RN32,34,42,44

15G,SPOT

 1
90937-01136

LN40,RN32,34,42,44

20G,L=41.4,20G,PROJECTION

 1
90937-01005

LN40,RN32,34,42,44

30G,T=1.2,30G,SPOT

 1
90937-01152

LN40,RN32,34,42,44

14G,L=29.0,14G,PROJECTION

 1
90937-01149

LN40,RN32,34,42,44

6G,L=12.4,6G,PROJECTION

 1
90937-01156

LN40,RN32,34,42,44

24G,L=49.7,24G,PROJECTION

 1
90937-01153

LN40,RN32,34,42,44

16G,L=33.2,16G,PROJECTION

 1
90937-01004

LN40,RN32,34,42,44

20G,T=1.2,20G,SPOT

 1
90937-01154

LN40,RN32,34,42,44

18G,L=37.3,18G,PROJECTION

 1
90937-01150

LN40,RN32,34,42,44

8G,L=16.6,8G,PROJECTION

 1
90937-01140

LN40,RN32,34,42,44

30G,L=62.2,30G,PROJECTION

 1
90937-01148

LN40,RN32,34,42,44

4G,T=2.0,4G,PROJECTION

 1
90937-01158

LN40,RN32,34,42,44

28G,L=58.1,28G,PROJECTION

 1
90937-01155

LN40,RN32,34,42,44

22G,L=45.6,22G,PROJECTION

 1
90937-01151

LN40,RN32,34,42,44

12G,L=24.9,12G,PROJECTION

 1
90937-01157

LN40,RN32,34,42,44

26G,L=53.9,26G,PROJECTION

 1
37110 - SHAFT ASSY, PROPELLER
37110-35120

RN32

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-09429

RN32,42..HLF

 8
37110D - NUT (FOR PROPELLER SHAFT)
90170-08007

RN3#,42..HLF

 12
90170-09190

RN3#,42..HLF

 12
37110E - WASHER (FOR PROPELLER SHAFT)
90206-09052

RN3#,42..HLF

 12
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-30020

RN32,42..HLF

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-30011

RN32,42..HLF

 1
37315-30010

RN32,42..HLF

 1
37331 - COVER, SLIDING SHAFT DUST
37331-30010

LN40,RN32,34,42,44

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-30020

RN32,42..HLF

 3
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26233

RN3#,42..HLF

T=1.50,OD=32.4,T=1.50

 12
90520-26235

RN3#,42..HLF

T=1.60,T=1.60

 12
90520-26234

RN3#,42..HLF

T=1.55,T=1.55

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30020

RN3#,42..HLF

 12
