RN32L-KDA (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )MTM

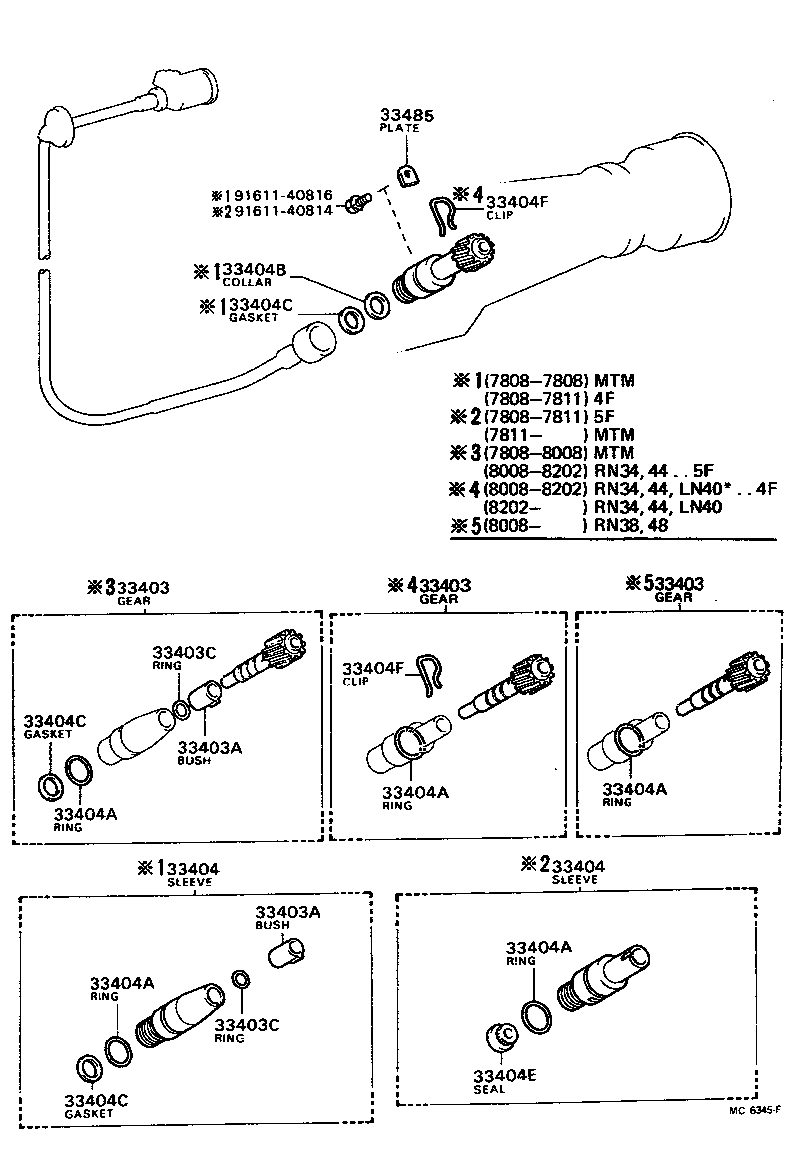

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-69026 |
RN3#,42..MTM N=19 |
1 | ||
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-69026 |
RN3#,42..MTM N=19 |
1 | ||
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-69026 |
RN3#,42..MTM N=19 |
1 | ||
| 33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE) | ||||
| 90386-09078 |
RN32,42..MTM |
1 | ||
| 90386-09078 |
RN32,42..4F |
1 | ||
| 33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE) | ||||
| 90386-09078 |
RN32,42..MTM |
1 | ||
| 90386-09078 |
RN32,42..4F |
1 | ||
| 33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT) | ||||
| 90301-09017 |
RN32,42..4F |
1 | ||
| 90301-09017 |
RN32,42..MTM |
1 | ||
| 33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT) | ||||
| 90301-09017 |
RN32,42..4F |
1 | ||
| 90301-09017 |
RN32,42..MTM |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-39016 |
RN32,42..MTM |
1 | ||
| 33404-39016 |
RN32,42..4F |
1 | ||
| 33404-30040 |
RN3#,42..MTM |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-39016 |
RN32,42..MTM |
1 | ||
| 33404-39016 |
RN32,42..4F |
1 | ||
| 33404-30040 |
RN3#,42..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
LN40,RN3#,4#..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
LN40,RN3#,4#..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
LN40,RN3#,4#..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
LN40,RN3#,4#..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
LN40,RN3#,4#..MTM |
1 | ||
| 33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM) | ||||
| 90201-07069 |
RN32,42..MTM |
1 | ||
| 33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM) | ||||
| 90303-06017 |
RN32,42..MTM |
1 | ||
| 33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM) | ||||
| 90303-06017 |
RN32,42..MTM |
1 | ||
| 33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM) | ||||
| 90303-06017 |
RN32,42..MTM |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30010 |
RN32,42..4F |
1 | ||
| 33485-30010 |
RN32,42..MTM |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
