RN32L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )20R,22R

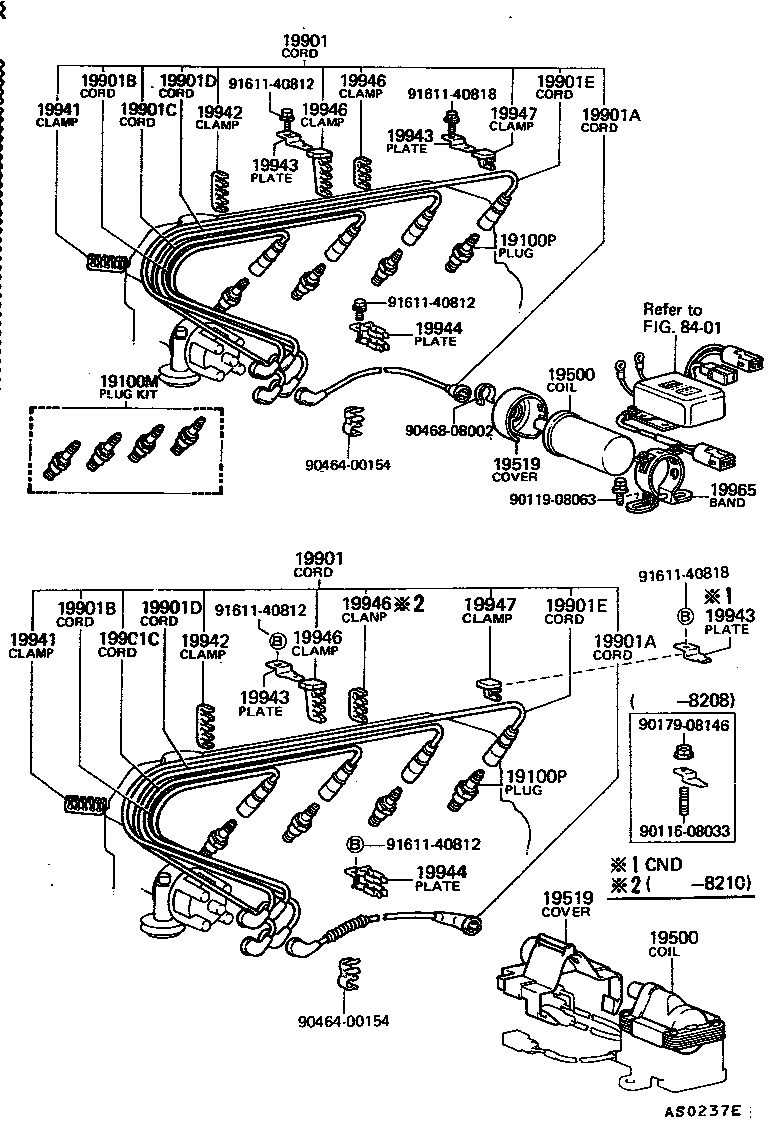

Click highlighted areas on diagram

diagram 19100M 19100P 19100P 19500 19500 19519 19519 19901 19901 19901A 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19941 19941 19942 19942 19943 19943 19943 19943 19944 19944 19946 19946 19946 19946 19947 19947 19965 8401 9011608033 9011908063 9017908146 9046400154 9046400154 9046808002 9161140812 9161140812 9161140812 9161140812 9161140818 9161140818
Part # Description Qty Price
19100M - PLUG KIT, SPARK
04195-34110

20R..RN32,42..USA

W16EX-U

 1
19100P - PLUG, SPARK
90919-01059

20R..RN3#,4#..USA

W16EX-U,W16EX-U

 4
19100P - PLUG, SPARK
90919-01059

20R..RN3#,4#..USA

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02083

20R..RN3#,4#

 1
90919-02083

20R..RN3#,4#..(3QT,HLF)..USA

 1
90919-02117

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
19500 - COIL ASSY, IGNITION
90919-02083

20R..RN3#,4#

 1
90919-02083

20R..RN3#,4#..(3QT,HLF)..USA

 1
90919-02117

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
19519 - COVER, IGNITION COIL
19519-38030

20R..RN3#,4#

 1
19519-38030

20R..RN32,42..USA

COLD SPEC

 1
19519-28020

20R..RN3#,4#..USA

COLD SPEC

 1
19519 - COVER, IGNITION COIL
19519-38030

20R..RN3#,4#

 1
19519-38030

20R..RN32,42..USA

COLD SPEC

 1
19519-28020

20R..RN3#,4#..USA

COLD SPEC

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21300

20R..RN3#,4#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21300

20R..RN3#,4#

 1
19901A - CORD, COIL RESISTIVE
90919-13096

20R..RN32,42

 1
90919-13098

20R..RN3#,4#

 1
90919-13138

20R..RN3#,4#

 1
19901A - CORD, COIL RESISTIVE
90919-13096

20R..RN32,42

 1
90919-13098

20R..RN3#,4#

 1
90919-13138

20R..RN3#,4#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

20R..RN3#,4#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

20R..RN3#,4#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

20R..RN3#,4#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

20R..RN3#,4#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

20R..RN3#,4#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

20R..RN3#,4#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

20R..RN3#,4#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

20R..RN3#,4#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

20R..RN3#,4#

 1
90464-00045

20R..RN32,42

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

20R..RN3#,4#

 1
90464-00045

20R..RN32,42

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

20R..RN3#,4#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

20R..RN3#,4#

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38010

20R..RN3#,4#

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38010

20R..RN3#,4#

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38010

20R..RN3#,4#

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38010

20R..RN3#,4#

 2
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-38010

20R,22R..RN3#,4#

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-38010

20R,22R..RN3#,4#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R..RN3#,4#

RR

 1
90464-00060

20R..RN3#,4#

FR

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R..RN3#,4#

RR

 1
90464-00060

20R..RN3#,4#

FR

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R..RN3#,4#

RR

 1
90464-00060

20R..RN3#,4#

FR

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R..RN3#,4#

RR

 1
90464-00060

20R..RN3#,4#

FR

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

20R..RN3#,4#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

20R..RN3#,4#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03068

20R..RN32,42..USA

 1
90919-03059

20R..RN3#,4#..(3QT,HLF)..USA

IGNITER MARK=97,*CAL

 1
90919-03078

20R..RN3#,4#..(3QT,HLF)..USA

 1
90919-03059

20R..RN32,42..USA

COLD SPEC

 1
90919-03079

20R..RN3#,4#..(3QT,HLF)..USA

IGNITER MARK=95,*CAL

 1
Common parts
90116-08033
90119-08063
90179-08146
90464-00154
90468-08002
91611-40812
91611-40818
Linked diagrams
8401
