RN32L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )20R,22R

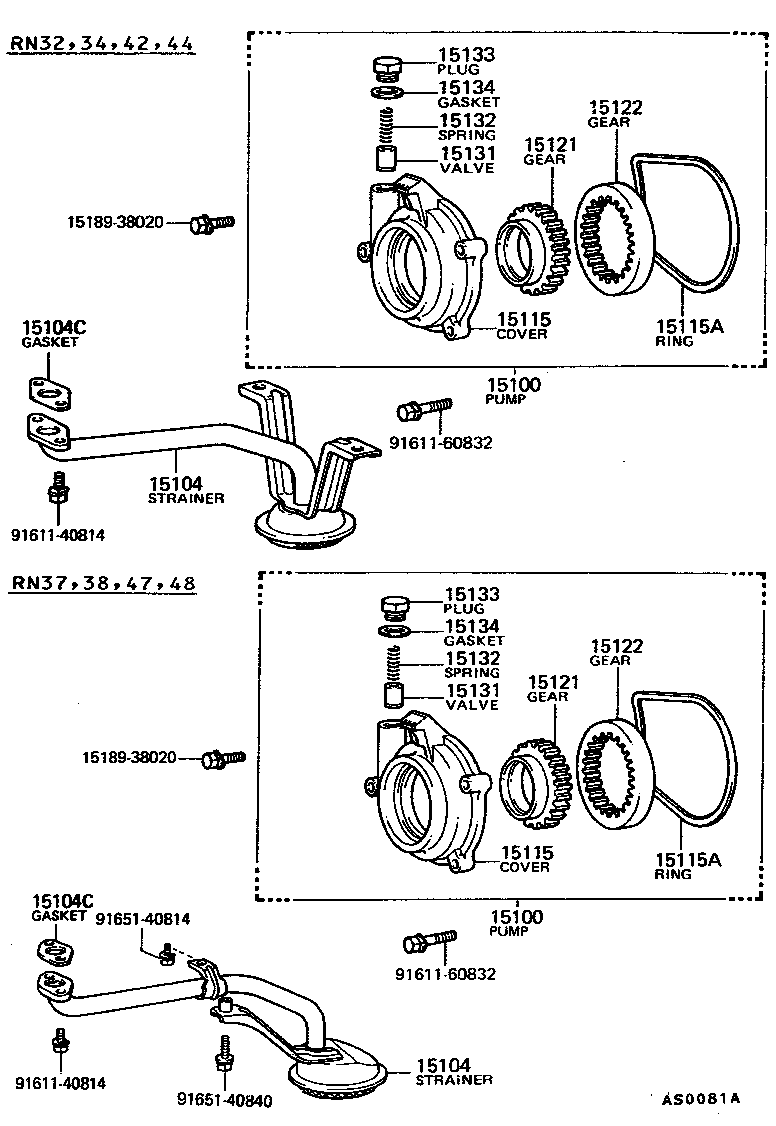

Click highlighted areas on diagram

diagram 15100 15100 15104 15104 15104C 15104C 15115 15115 15115A 15115A 15121 15121 15122 15122 15131 15131 15132 15132 15133 15133 15134 15134 1518938020 1518938020 9161140814 9161140814 9161160832 9161160832 9165140814 9165140840
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-38021

20R,22R..RN3#,4#

 1
15100 - PUMP ASSY, OIL
15100-38021

20R,22R..RN3#,4#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-38040

20R,22R..RN32,34,42,44

 1
15104 - STRAINER SUB-ASSY, OIL
15104-38040

20R,22R..RN32,34,42,44

 1
15104C - GASKET(FOR OIL STRAINER)
15147-38020

20R,22R..RN3#,4#

 1
15104C - GASKET(FOR OIL STRAINER)
15147-38020

20R,22R..RN3#,4#

 1
15115 - COVER, OIL PUMP
15115-38022

20R,22R..RN3#,4#

 1
15115 - COVER, OIL PUMP
15115-38022

20R,22R..RN3#,4#

 1
15115A - RING, O(FOR OIL PUMP COVER)
15188-38030

20R,22R..RN3#,4#

 1
15115A - RING, O(FOR OIL PUMP COVER)
15188-38030

20R,22R..RN3#,4#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-38020

20R,22R..RN3#,4#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-38020

20R,22R..RN3#,4#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-38020

20R,22R..RN3#,4#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-38020

20R,22R..RN3#,4#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

20R..RN32,42

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

20R..RN32,42

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46010

20R,22R..RN3#,4#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46010

20R,22R..RN3#,4#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

20R,22R..RN3#,4#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

20R,22R..RN3#,4#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

20R,22R..RN3#,4#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

20R,22R..RN3#,4#

 1
Common parts
15189-38020
91611-40814
91611-60832
91651-40814
91651-40840
