RN32L-HDA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

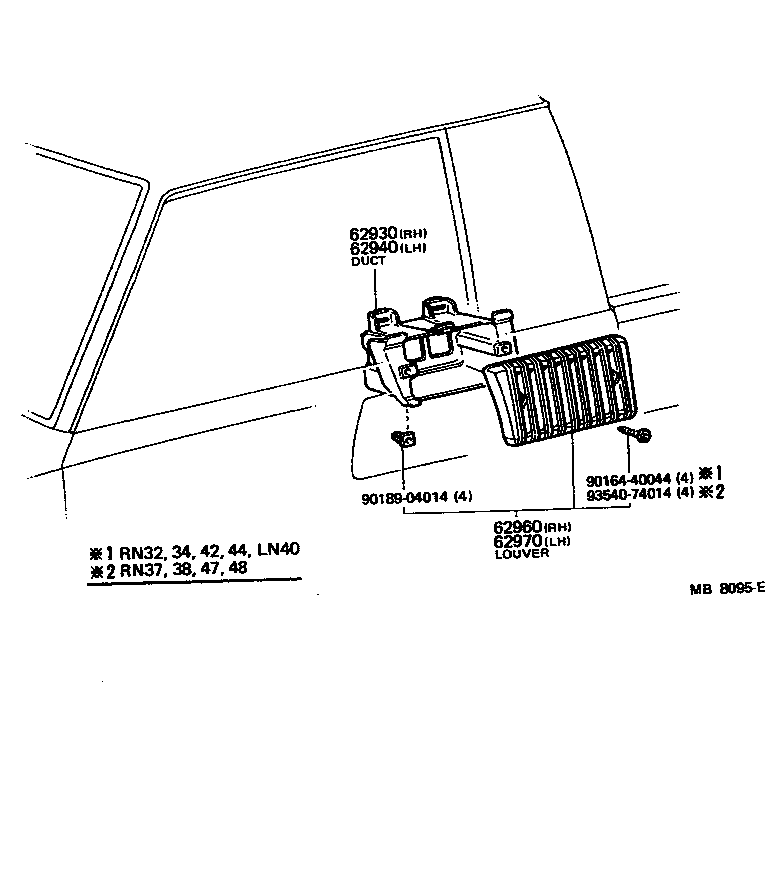

Click highlighted areas on diagram

diagram 62930 62940 62960 62970 9016440044 9018904014 9354074014
Part # Description Qty Price
62930 - DUCT ASSY, ROOF SIDE VENT, RH
62930-89105

LN40,RN3#,4#

 1
62940 - DUCT ASSY, ROOF SIDE VENT, LH
62940-89104

LN40,RN3#,4#

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62951-39045

LN40,RN32,34,42,44..DLX,STD

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62952-39045

LN40,RN32,34,42,44..DLX,STD

 1
Common parts
90164-40044
90189-04014
93540-74014
