RN32L-HDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RN3#,4#

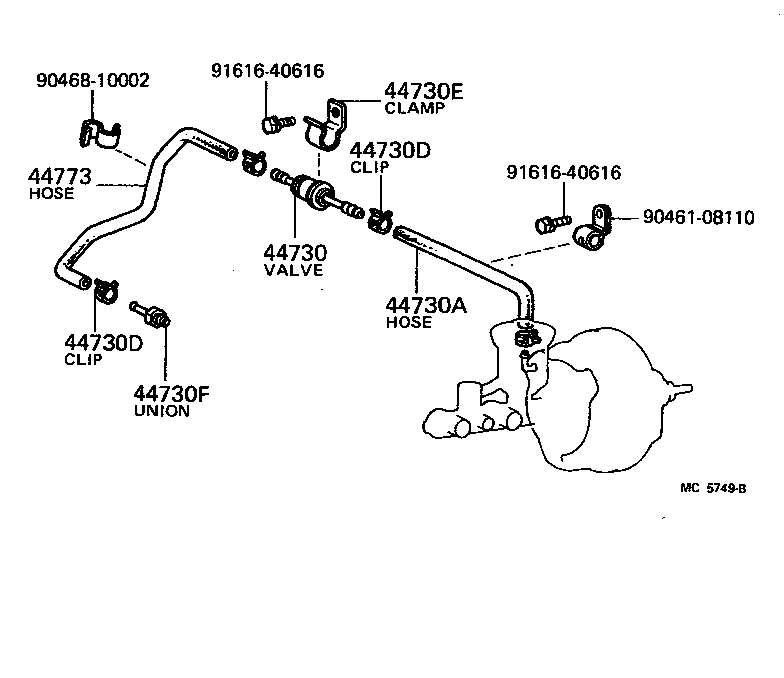

Click highlighted areas on diagram

diagram 44730 44730A 44730D 44730D 44730E 44730F 44773 9046108110 9046810002 9161640616 9161640616
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

RN3#,4#

 1
44730A - HOSE, VACUUM, NO.1
44772-35010

RN3#,4#

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

RN3#,4#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

RN3#,4#

 4
44730E - CLAMP, VACUUM CHECK VALVE
44758-12030

RN3#,4#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RN3#,4#

 1
44773 - HOSE, VACUUM, NO.2
44773-35100

RN3#,4#

 1
Common parts
90461-08110
90468-10002
91616-40616

(7808- )

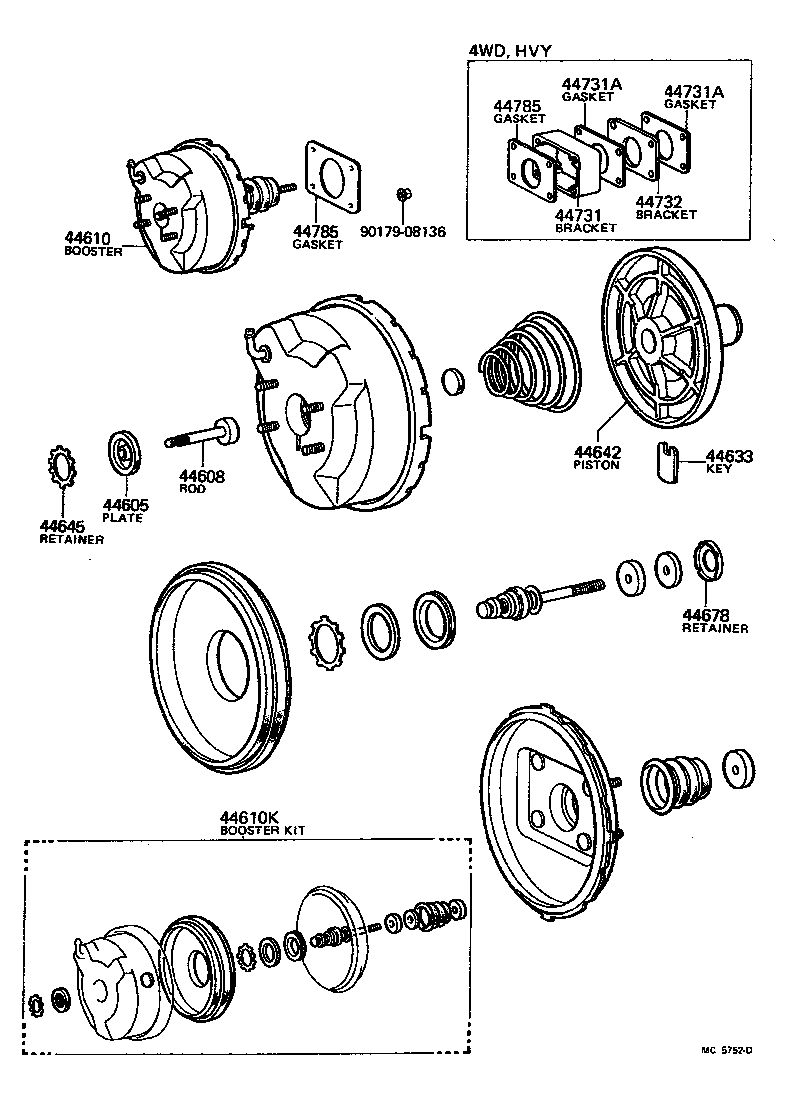

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44642 44645 44678 44731 44731A 44731A 44732 44785 44785 9017908136
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

LN40,RN3#,4#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-14040

LN40,RN3#,4#..3QT,HLF

 1
44610 - BOOSTER ASSY, BRAKE
44610-35180

RN32,34,42,44..3QT,HLF

7.5 INCHES

 1
44610K - BOOSTER KIT, BRAKE
04443-35120

RN32,34,42,44..3QT,HLF

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

LN40,RN3#,4#

 1
44642 - PISTON, BRAKE BOOSTER
44642-20140

LN40,RN32,34,42,44..3QT,HLF

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

LN40,RN3#,4#

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

LN40,RN3#,4#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35010

RN32,42..3QT,HLF

 1
44785 - GASKET, BRAKE BOOSTER
44785-35010

RN32,42..3QT,HLF

 1
Common parts
90179-08136
