LN40L-MSA3 (1982)
Toyota Pickup
Production
Aug 1982
-
Jul 1983
Engine
L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )L

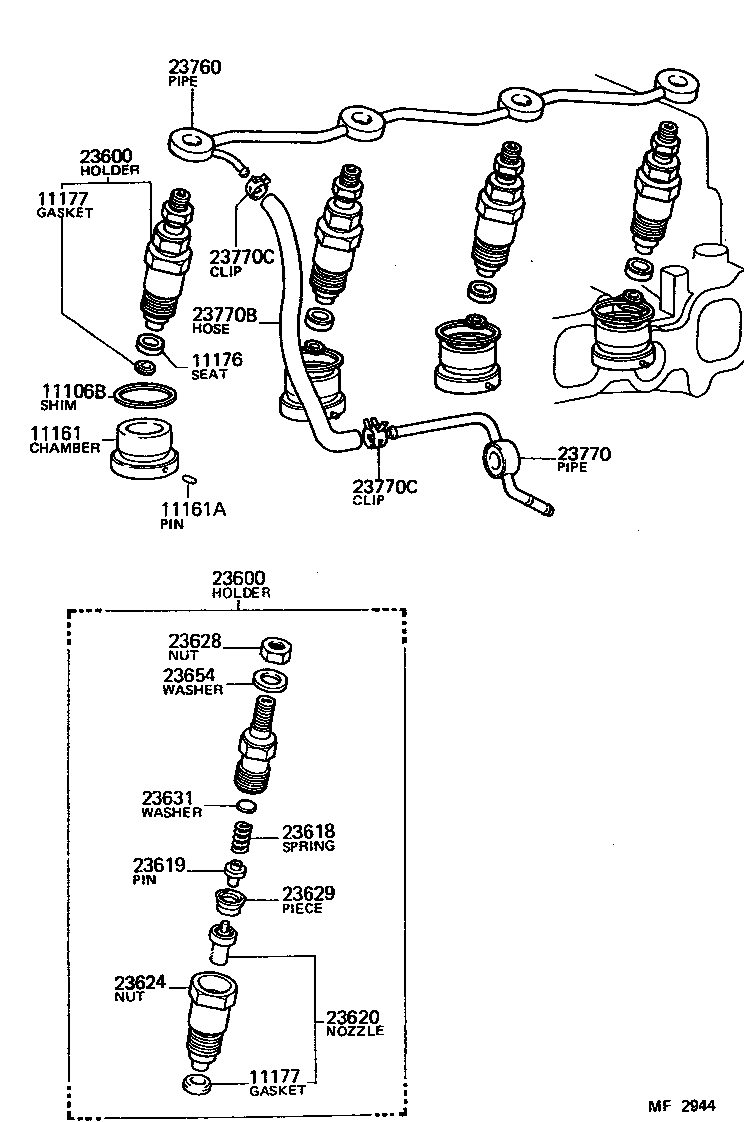

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11177 - GASKET, INJECTION NOZZLE SEAT | ||||
| 11177-54010 |
L..LN40 |
4 | ||
| 11177 - GASKET, INJECTION NOZZLE SEAT | ||||
| 11177-54010 |
L..LN40 |
4 | ||
| 23600 - HOLDER & NOZZLE SET, NOZZLE | ||||
| 23600-59025 |
L..LN40 |
4 | ||
| 23600 - HOLDER & NOZZLE SET, NOZZLE | ||||
| 23600-59025 |
L..LN40 |
4 | ||
| 23618 - SPRING, NOZZLE HOLDER PRESSURE | ||||
| 23618-54050 |
L..LN40 |
4 | ||
| 23620 - NOZZLE ASSY | ||||
| 23620-59025 |
L..LN40 |
4 | ||
| 23624 - NUT, NOZZLE RETAINING | ||||
| 23624-54050 |
L..LN40 |
4 | ||
| 23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING) | ||||
| 23631-54051 |
L..LN40 T=0.75 |
1 | ||
| 23631-54053 |
L..LN40 T=0.85 |
1 | ||
| 23631-54052 |
L..LN40 T=0.80 |
1 | ||
| 23631-54054 |
L..LN40 T=0.95 |
1 | ||
| 23631-54050 |
L..LN40 T=0.70 |
1 | ||
| 23631-54055 |
L..LN40 T=0.90 |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 95332-04020 |
L..LN40 *H,L=110 |
1 | ||
