LN40L-MSA (1982)

Toyota Pickup

Production Aug 1982 - Jul 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )LN40

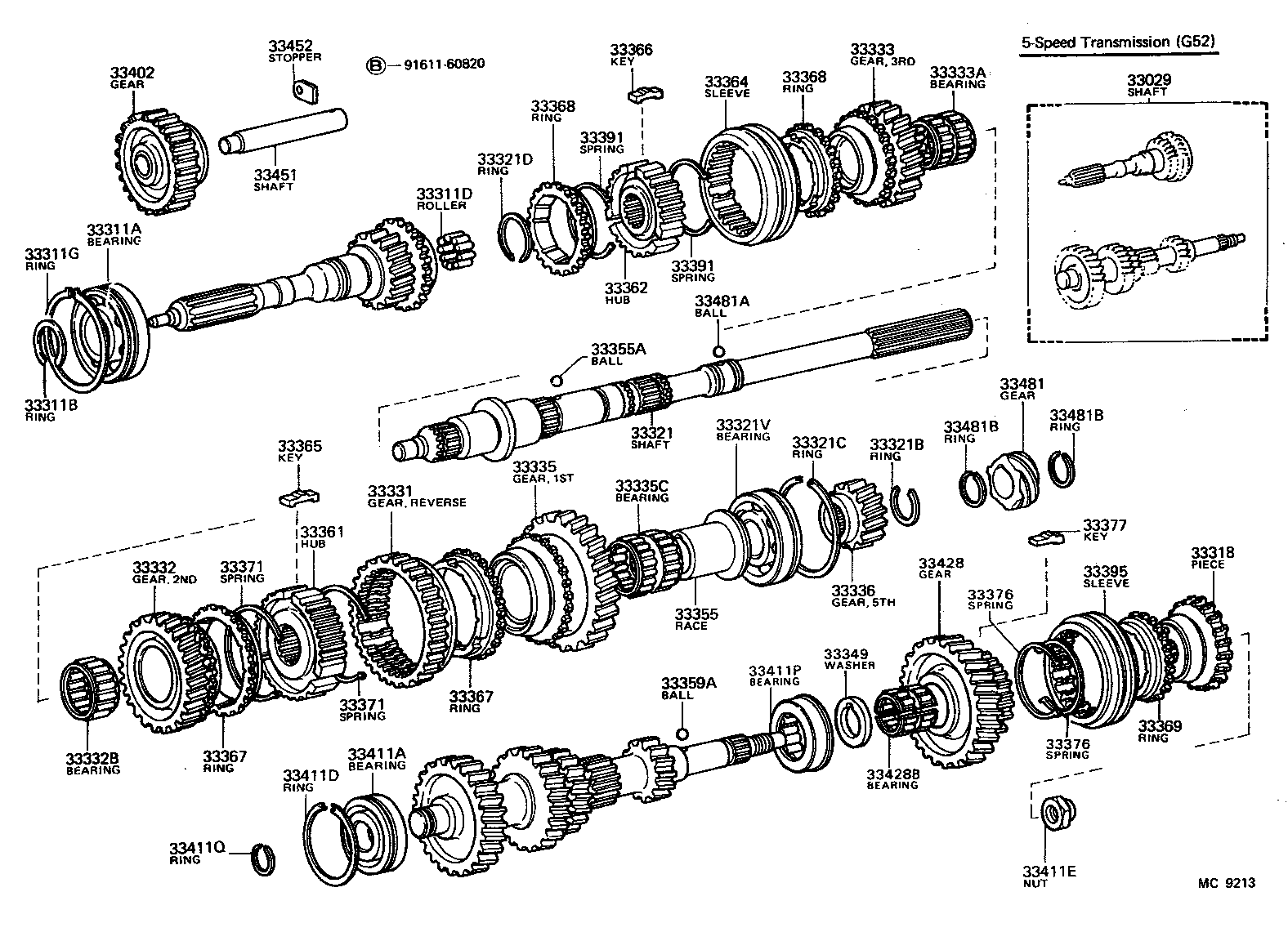

Click highlighted areas on diagram

diagram 33029 33311A 33311B 33311D 33311G 33318 33321 33321B 33321C 33321D 33321V 33331 33332 33332B 33333 33333A 33335 33335C 33336 33349 33355 33355A 33359A 33361 33362 33364 33365 33366 33367 33367 33368 33368 33369 33371 33371 33376 33376 33377 33391 33391 33395 33402 33411A 33411D 33411E 33411P 33411Q 33428 33428B 33451 33452 33481 33481A 33481B 33481B 9161160820
Part # Description Qty Price
33029 - SHAFT SET, INPUT
33029-28010

LN40

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-32016

LN40

 1
33311D - BEARING, INPUT SHAFT
90361-06047

LN40,RN38,48

 14
33311G - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-76002

LN40,RN38,48

 1
90520-76002

LN40

 1
90520-71221

RN3#,4#..MTM

 1
90520-71221

LN40,RN3#,4#..MTM

 1
33318 - PIECE, GEAR SPLINE, NO.5
33318-28010

LN40,RN38,48..5F

 1
33318-28010

LN40

 1
33321 - SHAFT, OUTPUT
33321-35091

LN40

 1
33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
90520-25006

LN40,RN38,48

T=2.73-2.78,MARK B,T=2.73-2.78

 1
90520-25005

LN40,RN38,48

T=2.67-2.72,MARK A,T=2.67-2.72

 1
90520-25010

LN40,RN38,48

T=2.85-2.90,MARK D,T=2.85-2.90

 1
90520-25012

LN40,RN38,48

T=2.97-3.02,MARK F,T=2.97-3.02

 1
90520-25015

LN40,RN38,48

T=3.15-3.20,MARK J,T=3.15-3.20

 1
90520-25013

LN40,RN38,48

T=3.03-3.08,MARK G,T=3.03-3.08

 1
90520-25016

LN40,RN38,48

T=3.21-3.26,MARK K,T=3.21-3.26

 1
90520-25011

LN40,RN38,48

T=2.91-2.96,MARK E,T=2.91-2.96

 1
90520-25017

LN40,RN38,48

T=3.27-3.32,MARK L,T=3.27-3.32

 1
90520-25009

LN40,RN38,48

T=2.79-2.84,MARK C,T=2.79-2.84

 1
90520-25014

LN40,RN38,48

T=3.09-3.14,MARK H,T=3.09-3.14

 1
33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
90520-71221

LN40,RN38,48

T=1.65,ID=71.1

 1
33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET)
90520-28248

LN40,RN38,48

T=2.00-2.05,MARK F,T=2.00-2.05

 1
90520-28245

LN40,RN38,48

T=1.80-1.85,MARK D,T=1.80-1.85

 1
90520-28013

LN40,RN38,48

T=2.05-2.10,MARK F-1,T=2.05-2.10

 1
90520-28010

LN40,RN38,48

T=1.85-1.90,MARK D-1,T=1.85-1.90

 1
90520-28011

LN40,RN38,48

T=1.95-2.00,MARK E-1,T=1.95-2.00

 1
90520-28246

LN40,RN38,48

T=1.90-1.95,MARK E,T=1.90-1.95

 1
90520-28012

LN40,RN38,48

T=1.75-1.80,MARK C-1,T=1.75-1.80

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90363-30032

LN40

 1
33331 - GEAR, REVERSE
33331-28010

LN40

N=37

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-38002

LN40,RN38,48

 1
33333 - GEAR, 3RD
33034-28010

LN40

N=27

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-35005

LN40,RN38,48

 1
33335 - GEAR, 1ST
33032-28010

LN40

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-39002

LN40,RN38,48

 1
33336 - GEAR, 5TH
33336-28020

LN40

 1
33355 - RACE, 1ST GEAR BEARING INNER
33355-35011

LN40,RN38,48

 1
33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK
90360-06004

LN40,RN32,34,38,42,44,48..5F

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-35020

LN40,RN38,48

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33362-35020

LN40,RN38,48

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-35010

LN40,RN38,48

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-35020

LN40,RN38,48

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33366-35020

LN40,RN38,48

 3
33368 - RING, SYNCHRONIZER, NO.2
33367-14010

LN40,RN38,48

 2
33368 - RING, SYNCHRONIZER, NO.2
33367-14010

LN40,RN38,48

 2
33369 - RING, SYNCHRONIZER, NO.3
33367-14010

LN40,RN32,34,38,42,44,48..5F

 1
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-14010

LN40,RN38,48

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-14010

LN40,RN38,48

 2
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-28010

LN40

 1
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-28010

LN40

N=29

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-25004

LN40

 1
33411E - NUT(FOR COUNTER GEAR SHAFT)
90179-20002

LN40,RN38,48

 1
33411P - BEARING, COUNTER SHAFT CENTER
90365-31002

LN40,RN38,48

 1
33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
90520-23090

LN40,RN38,48

T=2.20-2.25,T=2.20-2.25

 1
90520-23145

LN40,RN38,48

T=2.30-2.35,T=2.30-2.35

 1
90520-23115

LN40,RN38,48

T=2.05-2.10,T=2.05-2.10

 1
90520-23144

LN40,RN38,48

T=2.25-2.30,T=2.25-2.30

 1
90520-23143

LN40,RN38,48

T=2.15-2.20,T=2.15-2.20

 1
90520-23089

LN40,RN38,48

T=2.10-2.15,T=2.10-2.15

 1
33428 - GEAR, COUNTERSHAFT 5TH
33046-28020

LN40

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-28010

LN40

 1
33452 - STOPPER, REVERSE IDLER GEAR SHAFT
33452-36020

LN40,RN38,48

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-22010

LN40,RN34,44..5F..HLF

N=6,MARK 6X18-20,N=6(DRIVEN GEAR N=18,19 OR 20)

 1
Common parts
91611-60820
