LN40L-MSA (1982)
Toyota Pickup
Production
Aug 1982
-
Jul 1983
Engine
L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )LN40

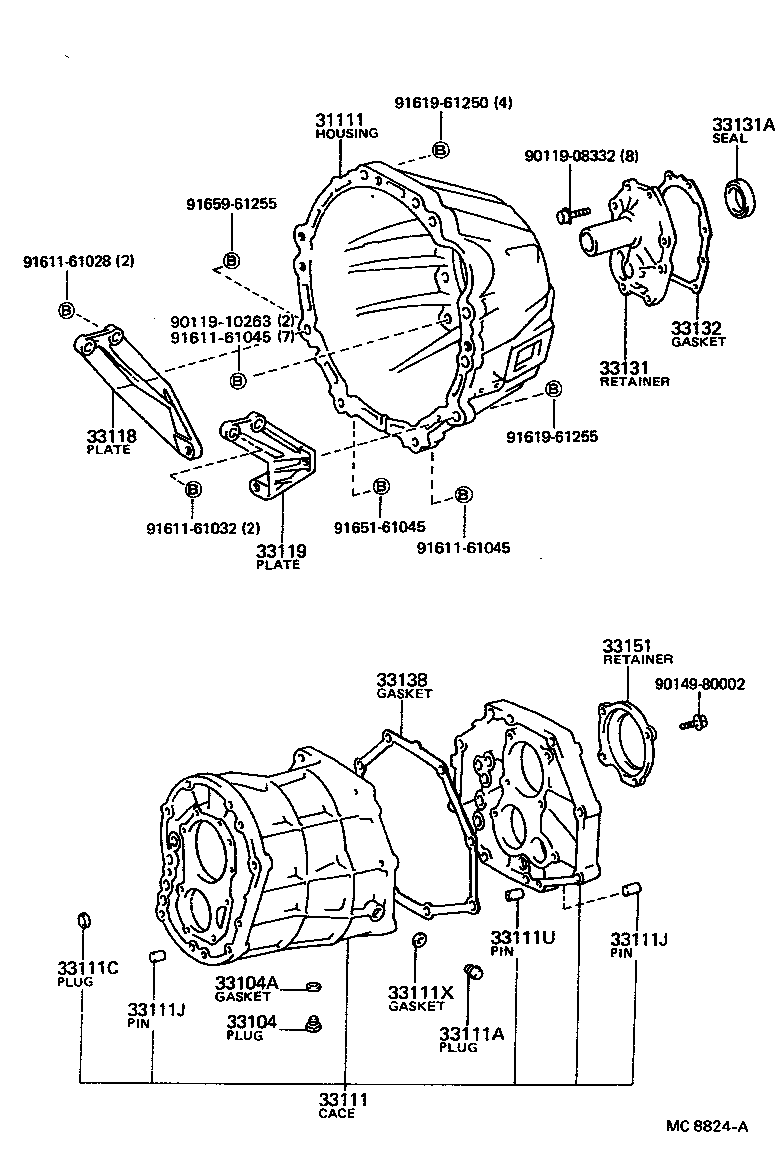

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22111 |
LN40 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LN40,RN3#,4#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
LN40,RN3#,4#..MTM |
1 | ||
| 90430-18007 |
LN40,RN38,48 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-35010 |
LN40 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
RN3#,4#..MTM |
1 | ||
| 90341-18002 |
LN40,RN3#,4#..MTM |
1 | ||
| 90341-18006 |
LN40,RN3#,4#..MTM |
1 | ||
| 90341-18002 |
LN40 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LN40 OD=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN40,RN38,48 L=16,OD=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN40,RN38,48 L=16,OD=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LN40 L=14,OD=15 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
LN40,RN3#,4#..MTM |
1 | ||
| 90430-18007 |
LN40,RN38,48 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-28010 |
LN40 |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
LN40 |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33138-28010 |
LN40 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-28010 |
LN40 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10263 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61032 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
| 91651-61045 | ||||
| 91659-61255 | ||||
