LN40L-MDK (1981)

Toyota Pickup

Production Jan 1981 - Jul 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )CBU

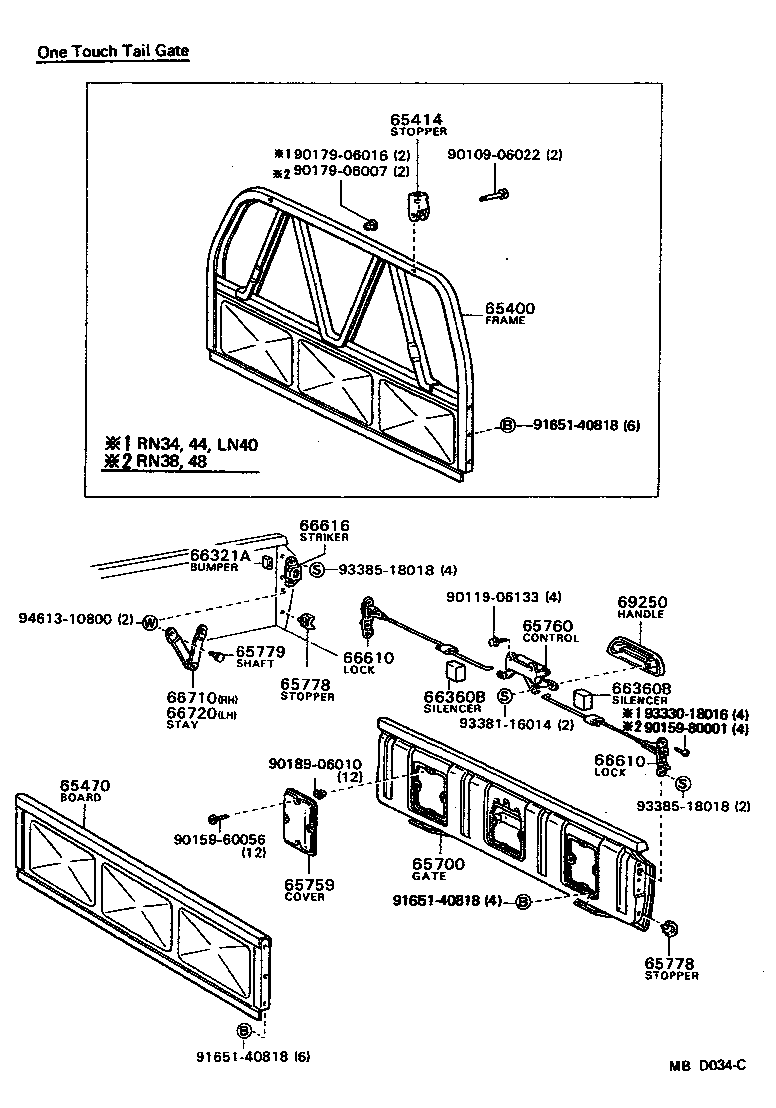

Click highlighted areas on diagram

diagram 65400 65414 65470 65700 65759 65760 65778 65778 65779 66321A 66360B 66360B 66610 66610 66616 66710 66720 69250 9010906022 9011906133 9015960056 9015980001 9017906007 9017906016 9018906010 9165140818 9165140818 9165140818 9333018016 9338116014 9338518018 9338518018 9461310800
Part # Description Qty Price
65700 - GATE ASSY, REAR BODY TAIL
65700-89122

LN40,RN3#,4#..CBU

ONE TOUCH TAIL GATE,TOYOTA

 1
65759 - COVER, TAIL GATE SERVICE HOLE
65759-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 3
65760 - CONTROL ASSY,TAIL GATE LOCK
65760-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 1
65760-89102

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 1
65778 - STOPPER, TAIL GATE STAY
65778-89102

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 4
65778 - STOPPER, TAIL GATE STAY
65778-89102

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 4
65779 - SHAFT, TAIL GATE STAY, UPPER
65779-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 2
66321A - BUMPER, GATE RUBBER
66321-89107

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 2
66360B - SILENCER, DOOR LOCK LINK
69759-89105

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 2
66360B - SILENCER, DOOR LOCK LINK
69759-89105

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 2
66610 - LOCK ASSY, TAIL GATE
65790-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE,LH

 1
65780-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE,RH

 1
66610 - LOCK ASSY, TAIL GATE
65790-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE,LH

 1
65780-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE,RH

 1
66616 - STRIKER, TAIL GATE LOCK
65768-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 2
66710 - STAY ASSY, TAIL GATE, RH
65770-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 1
66720 - STAY ASSY, TAIL GATE, LH
65770-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 1
69250 - HANDLE ASSY, TAIL GATE LOCK
65755-89101

LN40,RN3#,4#..3QT,HLF

ONE TOUCH TAIL GATE

 1
Common parts
90109-06022
90119-06133
90159-60056
90159-80001
90179-06007
90179-06016
90189-06010
91651-40818
93330-18016
93381-16014
93385-18018
94613-10800
