LN40L-MDK (1981)
Toyota Pickup
Production
Jan 1981
-
Jul 1983
Engine
L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8101- )L

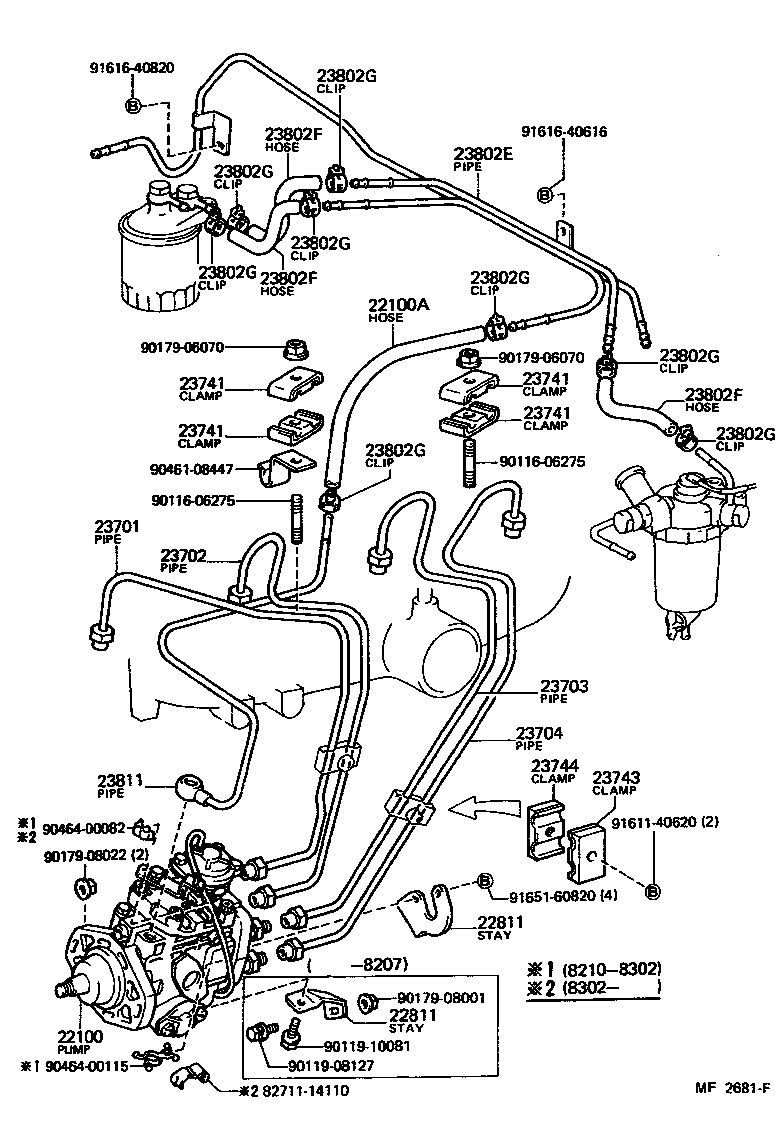

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-54300 |
L..LN40..DLX |
1 | ||
| 22100-54170 |
L..LN40 |
1 | ||
| 22100-54250 |
L..LN40 |
1 | ||
| 22100-54171 |
L..LN40 |
1 | ||
| 22100-54250 |
L..LN40 HAC |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 95332-08040 |
L..LN40 *H,L=320,ID=7.6 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-54030 |
L..LN40 |
1 | ||
| 22811-54040 |
L..LN40 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-54030 |
L..LN40 |
1 | ||
| 22811-54040 |
L..LN40 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-54051 |
L..LN40 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-54050 |
L..LN40 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-54050 |
L..LN40 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-54050 |
L..LN40 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L..LN40 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L..LN40 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L..LN40 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L..LN40 |
4 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23741-54010 |
L..LN40 |
2 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23742-54010 |
L..LN40 |
2 | ||
| 23802E - PIPE SUB-ASSY, FUEL | ||||
| 23801-54010 |
L..LN40 |
1 | ||
| 23802F - HOSE, FUEL | ||||
| 95332-08020 |
L..LN40 *H,L=140 |
3 | ||
| 23802F - HOSE, FUEL | ||||
| 95332-08020 |
L..LN40 *H,L=140 |
3 | ||
| 23802F - HOSE, FUEL | ||||
| 95332-08020 |
L..LN40 *H,L=140 |
3 | ||
| 23802G - CLIP | ||||
| 90467-13001 |
L..LN40 |
8 | ||
| 23802G - CLIP | ||||
| 90467-13001 |
L..LN40 |
8 | ||
| 23802G - CLIP | ||||
| 90467-13001 |
L..LN40 |
8 | ||
| 23802G - CLIP | ||||
| 90467-13001 |
L..LN40 |
8 | ||
| 23802G - CLIP | ||||
| 90467-13001 |
L..LN40 |
8 | ||
| 23802G - CLIP | ||||
| 90467-13001 |
L..LN40 |
8 | ||
| 23802G - CLIP | ||||
| 90467-13001 |
L..LN40 |
8 | ||
| 23802G - CLIP | ||||
| 90467-13001 |
L..LN40 |
8 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-54051 |
L..LN40 |
1 | ||
| 23811-54050 |
L..LN40 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90116-06275 | ||||
| 90119-08127 | ||||
| 90119-10081 | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90179-08022 | ||||
| 90461-08447 | ||||
| 90464-00082 | ||||
| 90464-00115 | ||||
| 91611-40620 | ||||
| 91616-40616 | ||||
| 91616-40820 | ||||
| 91651-60820 | ||||
