EL54L-DCPSKA (1995)

Toyota Paseo

Production Aug 1995 - Jul 1999
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

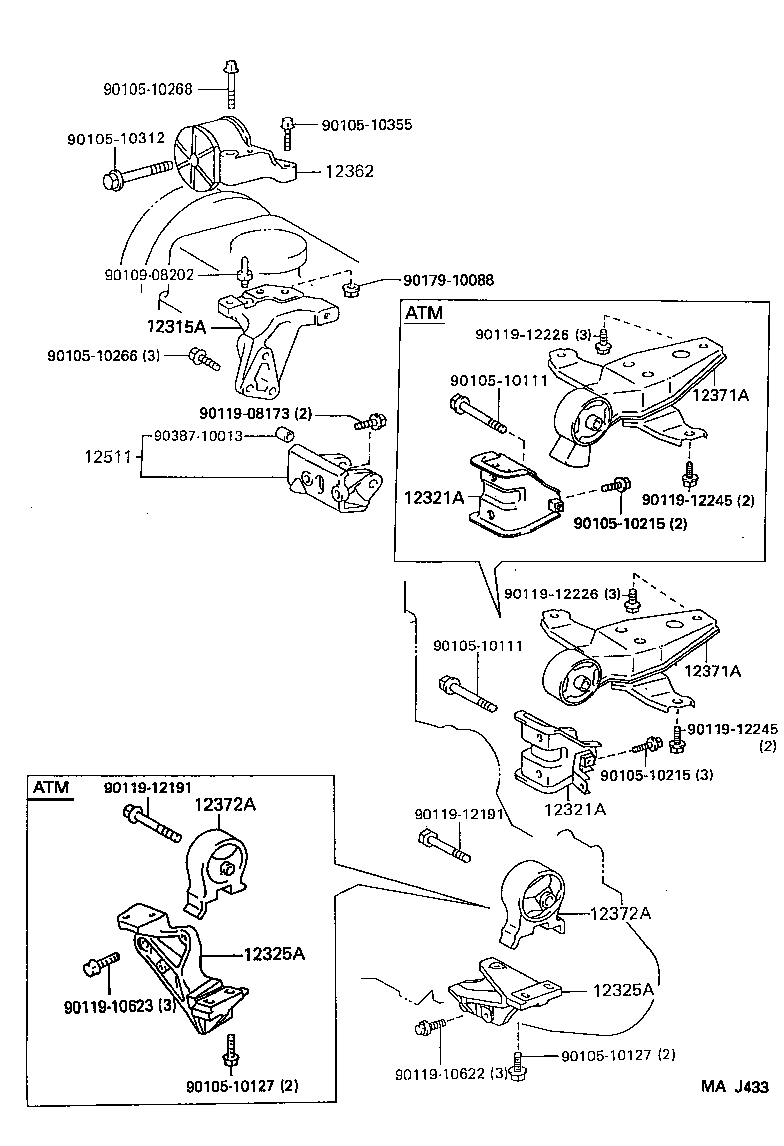

Click highlighted areas on diagram

diagram 12315A 12321A 12321A 12325A 12325A 12362 12371A 12371A 12372A 12372A 12511 9010510111 9010510111 9010510127 9010510127 9010510215 9010510215 9010510266 9010510268 9010510312 9010510355 9010908202 9011908173 9011910622 9011910623 9011912191 9011912191 9011912226 9011912226 9011912245 9011912245 9017910088 9038710013
Part # Description Qty Price
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-11040

5EFE..EL54

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12303-11070

5EFE..EL54..ATM

 1
12303-11072

5EFE..EL54..ATM

 1
12303-11072

5EFE..EL54..CP..ATM

 1
12303-11071

5EFE..EL54..ATM

 1
12303-11072

5EFE..EL54..ATM

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12303-11070

5EFE..EL54..ATM

 1
12303-11072

5EFE..EL54..ATM

 1
12303-11072

5EFE..EL54..CP..ATM

 1
12303-11071

5EFE..EL54..ATM

 1
12303-11072

5EFE..EL54..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11030

5EFE..EL54..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11030

5EFE..EL54..ATM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-11180

5EFE..EL54..ATM

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-11510

5EFE..EL54..ATM

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-11510

5EFE..EL54..ATM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-11220

5EFE..EL54..ATM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-11220

5EFE..EL54..ATM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-11020

5EFE..EL54

 1
Common parts
90105-10111
90105-10127
90105-10215
90105-10266
90105-10268
90105-10312
90105-10355
90109-08202
90119-08173
90119-10622
90119-10623
90119-12191
90119-12226
90119-12245
90179-10088
90387-10013
