EL54L-DCMSKK (1995)
Toyota Paseo
(9608- )
12V 70A(CND,COLD SPEC)

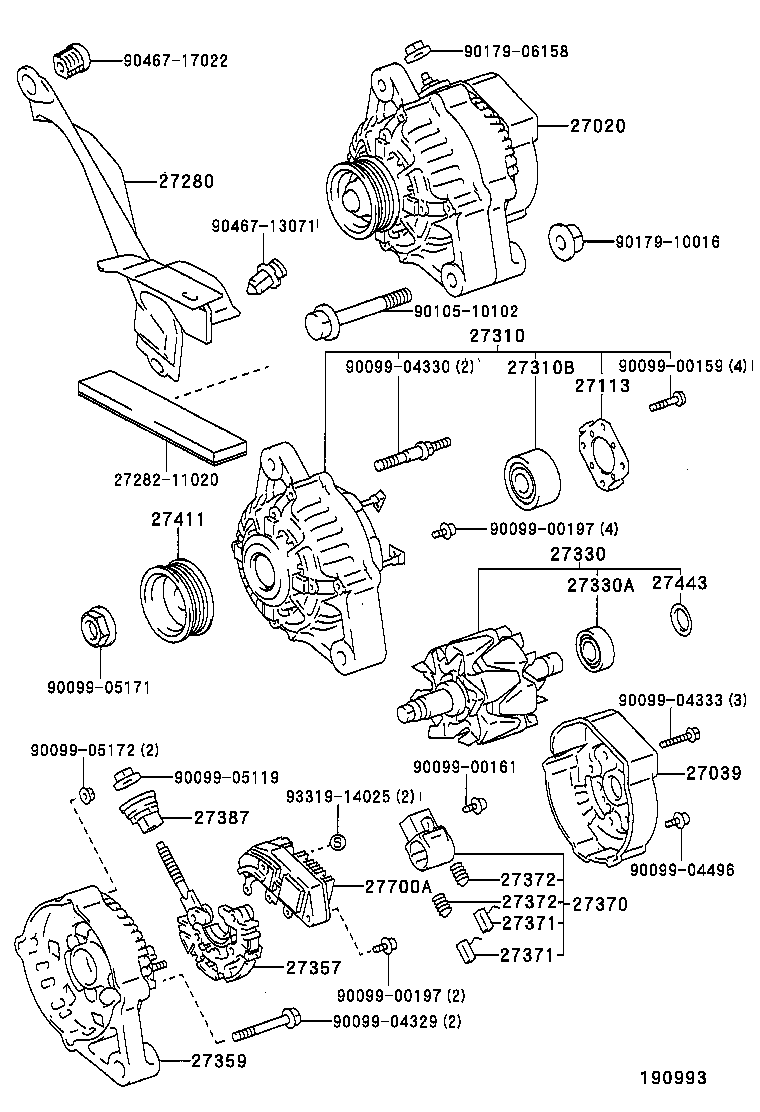

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-11250 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27060-11300 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11190 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27039-11100 |
5EFE..EL54..CP..MTM COLD SPEC,NO.2 |
1 | ||
| 27039-55080 |
5EFE..EL54..CP..MTM NO.1 |
1 | ||
| 27039-55080 |
5EFE..EL54..MTM..CND NO.1 |
1 | ||
| 27039-55080 |
5EFE..EL54..CND NO.1 |
1 | ||
| 27039-11100 |
5EFE..EL54..CND NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11190 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27039-11100 |
5EFE..EL54..CP..MTM COLD SPEC,NO.2 |
1 | ||
| 27039-55080 |
5EFE..EL54..CP..MTM NO.1 |
1 | ||
| 27039-55080 |
5EFE..EL54..MTM..CND NO.1 |
1 | ||
| 27039-55080 |
5EFE..EL54..CND NO.1 |
1 | ||
| 27039-11100 |
5EFE..EL54..CND NO.2 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
5EFE..EL54 |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-72120 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27312-42010 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27280 - COVER ASSY, ALTERNATOR SPLASH GUARD | ||||
| 27280-11010 |
5EFE..EL54 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-11160 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27310-11150 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 90099-10198 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-11150 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27330-11160 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 90099-10154 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 90099-10140 |
5EFE..EL54..ATM;5EFE..EL54..MTM..CND 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11170 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27357-55080 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72150 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27359-11150 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
5EFE..EL54 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
5EFE..EL54 |
1 | ||
| 27370-75060 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27370-54450 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
5EFE..EL54 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
5EFE..EL54 |
2 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
5EFE..EL54 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27387-42021 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27387-10080 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
5EFE..EL54 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-11060 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27411-11160 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
5EFE..EL54 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-11080 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27700-11060 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| Common parts | ||||
| 27282-11020 | ||||
| 27389-42010 | ||||
| 90091-40604 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10102 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90467-13071 | ||||
| 90467-17022 | ||||
| 93319-14025 | ||||
(9508- )5EFE..MTM
12V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-11250 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27060-11300 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11190 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27039-11100 |
5EFE..EL54..CP..MTM COLD SPEC,NO.2 |
1 | ||
| 27039-55080 |
5EFE..EL54..CP..MTM NO.1 |
1 | ||
| 27039-55080 |
5EFE..EL54..MTM..CND NO.1 |
1 | ||
| 27039-55080 |
5EFE..EL54..CND NO.1 |
1 | ||
| 27039-11100 |
5EFE..EL54..CND NO.2 |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-72120 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27312-42010 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27280 - COVER ASSY, ALTERNATOR SPLASH GUARD | ||||
| 27280-11010 |
5EFE..EL54 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-11160 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27310-11150 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 90099-10198 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-11150 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27330-11160 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 90099-10154 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 90099-10140 |
5EFE..EL54..ATM;5EFE..EL54..MTM..CND 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11170 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27357-55080 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72150 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27359-11150 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
5EFE..EL54 |
1 | ||
| 27370-75060 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27370-54450 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
5EFE..EL54 |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
5EFE..EL54 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
5EFE..EL54 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
5EFE..EL54 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27387-42021 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27387-10080 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-11060 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27411-11160 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
5EFE..EL54 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-11080 |
5EFE..EL54..CND 12V 70A |
1 | ||
| 27700-11060 |
5EFE..EL54..MTM 12V 60A |
1 | ||
| Common parts | ||||
| 27282-11020 | ||||
| 90099-00159 | ||||
| 90099-00161 | ||||
| 90099-00197 | ||||
| 90099-04329 | ||||
| 90099-04330 | ||||
| 90099-04333 | ||||
| 90099-04496 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10102 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90467-13071 | ||||
| 90467-17022 | ||||
| 93319-14025 | ||||
