EL54L-DCMSKA (1995)
Toyota Paseo
(9508- )
| Part # | Description | Qty | Price |
|---|

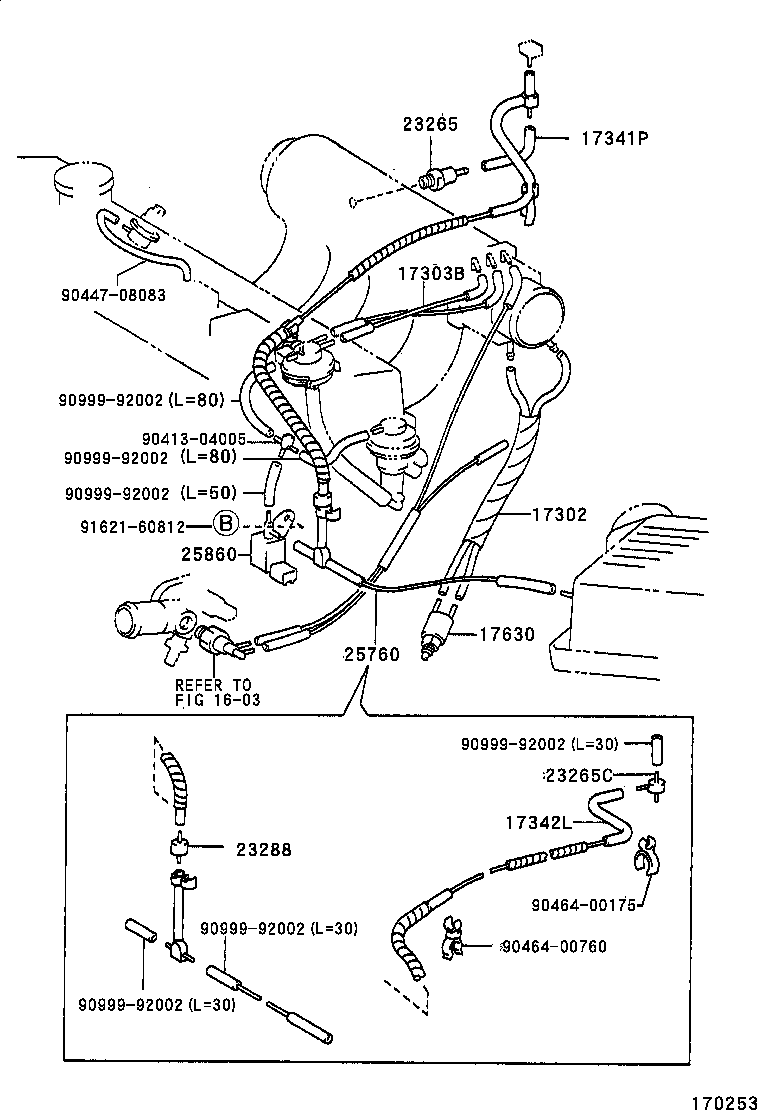

(9603-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11011 |
5EFE..EL54 NO.1 |
1 | ||
| 17302-11090 |
5EFE..EL54 NO.2 |
2 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11820 |
5EFE..EL54 |
1 | ||
| 17303-11861 |
5EFE..EL54 |
1 | ||
| 17341P - HOSE, AIR | ||||
| 17341-11380 |
5EFE..EL54 |
1 | ||
| 17342L - HOSE, AIR, NO.2 | ||||
| 17342-11210 |
5EFE..EL54 |
1 | ||
| 17342-11200 |
5EFE..EL54 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11070 |
5EFE..EL54 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11037 |
5EFE..EL54 |
1 | ||
| 23265C - FILTER, GAS | ||||
| 90917-11040 |
5EFE..EL54 |
1 | ||
| 90917-11040 |
5EFE..EL54 |
1 | ||
| 90917-11030 |
5EFE..EL54 |
1 | ||
| 90917-11040 |
5EFE..EL54..CP |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04004 |
5EFE..EL54 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25860-11330 |
5EFE..EL54 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11330 |
5EFE..EL54 |
1 | ||
| 25860-11361 |
5EFE..EL54 |
1 | ||
| 25860-11360 |
5EFE..EL54 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90447-08083 | ||||
| 90464-00175 | ||||
| 90464-00760 | ||||
| 90999-92002 | ||||
| 91621-60812 | ||||
| Linked diagrams | ||||
| 1603 | ||||

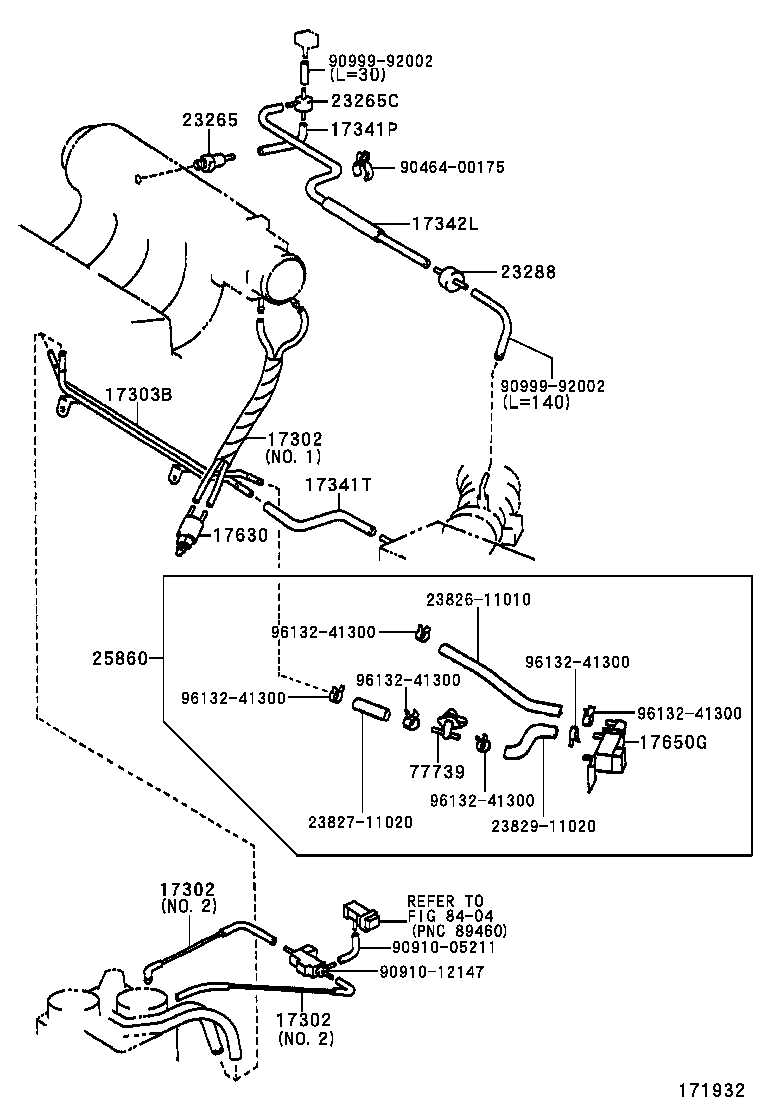

(9608-9808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11011 |
5EFE..EL54 NO.1 |
1 | ||
| 17302-11090 |
5EFE..EL54 NO.2 |
2 | ||
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11011 |
5EFE..EL54 NO.1 |
1 | ||
| 17302-11090 |
5EFE..EL54 NO.2 |
2 | ||
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11011 |
5EFE..EL54 NO.1 |
1 | ||
| 17302-11090 |
5EFE..EL54 NO.2 |
2 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11820 |
5EFE..EL54 |
1 | ||
| 17303-11861 |
5EFE..EL54 |
1 | ||
| 17341P - HOSE, AIR | ||||
| 17341-11380 |
5EFE..EL54 |
1 | ||
| 17341T - HOSE, AIR, NO.1 | ||||
| 17341-11420 |
5EFE..EL54 |
1 | ||
| 17342L - HOSE, AIR, NO.2 | ||||
| 17342-11210 |
5EFE..EL54 |
1 | ||
| 17342-11200 |
5EFE..EL54 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11070 |
5EFE..EL54 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12178 |
5EFE..EL54 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11037 |
5EFE..EL54 |
1 | ||
| 23265C - FILTER, GAS | ||||
| 90917-11040 |
5EFE..EL54 |
1 | ||
| 90917-11040 |
5EFE..EL54 |
1 | ||
| 90917-11030 |
5EFE..EL54 |
1 | ||
| 90917-11040 |
5EFE..EL54..CP |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04004 |
5EFE..EL54 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-11010 |
5EFE..EL54 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-11010 |
5EFE..EL54 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11330 |
5EFE..EL54 |
1 | ||
| 25860-11361 |
5EFE..EL54 |
1 | ||
| 25860-11360 |
5EFE..EL54 |
1 | ||
| Common parts | ||||
| 90464-00175 | ||||
| 90910-05211 | ||||
| 90910-12147 | ||||
| 90999-92002 | ||||
| 96132-41300 | ||||
| Linked diagrams | ||||
| 8404 | ||||
(9808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11011 |
5EFE..EL54 NO.1 |
1 | ||
| 17302-11090 |
5EFE..EL54 NO.2 |
2 | ||
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11011 |
5EFE..EL54 NO.1 |
1 | ||
| 17302-11090 |
5EFE..EL54 NO.2 |
2 | ||
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11011 |
5EFE..EL54 NO.1 |
1 | ||
| 17302-11090 |
5EFE..EL54 NO.2 |
2 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11820 |
5EFE..EL54 |
1 | ||
| 17303-11861 |
5EFE..EL54 |
1 | ||
| 17341P - HOSE, AIR | ||||
| 17341-11380 |
5EFE..EL54 |
1 | ||
| 17341T - HOSE, AIR, NO.1 | ||||
| 17341-11420 |
5EFE..EL54 |
1 | ||
| 17342L - HOSE, AIR, NO.2 | ||||
| 17342-11210 |
5EFE..EL54 |
1 | ||
| 17342-11200 |
5EFE..EL54 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11070 |
5EFE..EL54 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12178 |
5EFE..EL54 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11037 |
5EFE..EL54 |
1 | ||
| 23265C - FILTER, GAS | ||||
| 90917-11040 |
5EFE..EL54 |
1 | ||
| 90917-11040 |
5EFE..EL54 |
1 | ||
| 90917-11030 |
5EFE..EL54 |
1 | ||
| 90917-11040 |
5EFE..EL54..CP |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04004 |
5EFE..EL54 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11330 |
5EFE..EL54 |
1 | ||
| 25860-11361 |
5EFE..EL54 |
1 | ||
| 25860-11360 |
5EFE..EL54 |
1 | ||
| 77739 - VALVE, EVAP SERVICE PORT | ||||
| 77739-33010 |
EL54 |
1 | ||
| Common parts | ||||
| 23826-11010 | ||||
| 23827-11020 | ||||
| 23829-11020 | ||||
| 90464-00175 | ||||
| 90910-05211 | ||||
| 90910-12147 | ||||
| 90999-92002 | ||||
| 96132-41300 | ||||
| Linked diagrams | ||||
| 8404 | ||||

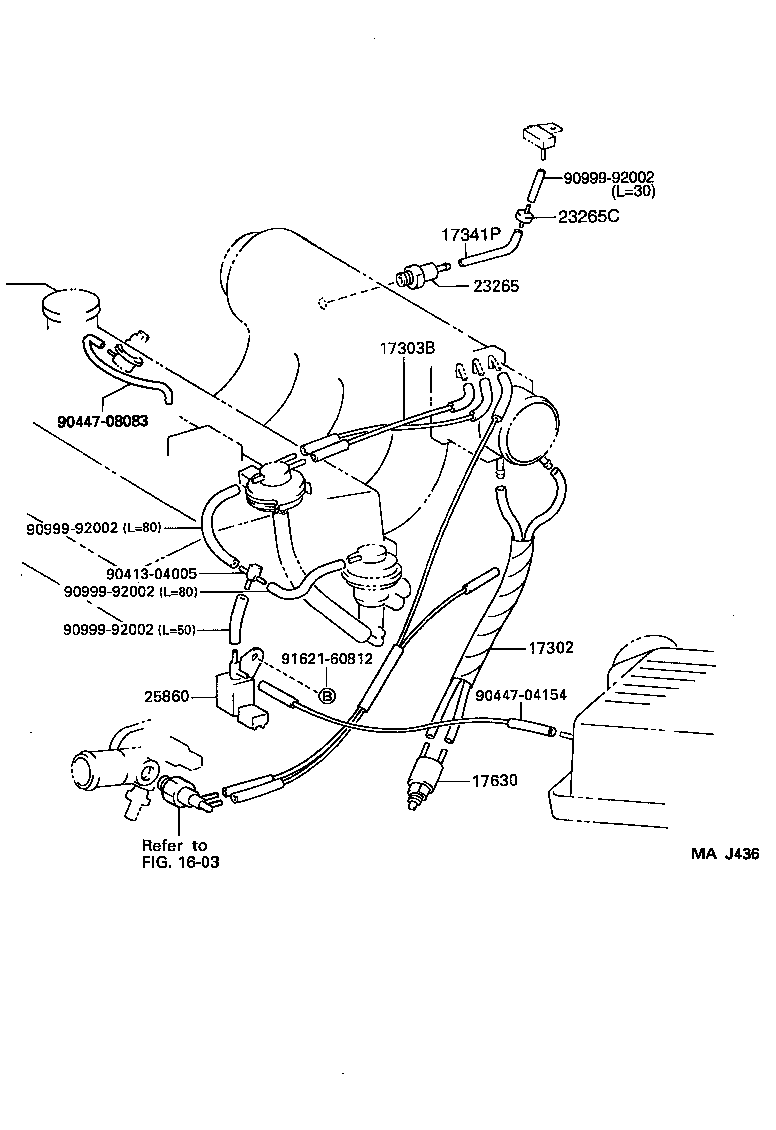

(9508-9603)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11011 |
5EFE..EL54 NO.1 |
1 | ||
| 17302-11090 |
5EFE..EL54 NO.2 |
2 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11820 |
5EFE..EL54 |
1 | ||
| 17303-11861 |
5EFE..EL54 |
1 | ||
| 17341P - HOSE, AIR | ||||
| 17341-11380 |
5EFE..EL54 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11070 |
5EFE..EL54 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11037 |
5EFE..EL54 |
1 | ||
| 23265C - FILTER, GAS | ||||
| 90917-11040 |
5EFE..EL54 |
1 | ||
| 90917-11040 |
5EFE..EL54 |
1 | ||
| 90917-11030 |
5EFE..EL54 |
1 | ||
| 90917-11040 |
5EFE..EL54..CP |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11330 |
5EFE..EL54 |
1 | ||
| 25860-11361 |
5EFE..EL54 |
1 | ||
| 25860-11360 |
5EFE..EL54 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90447-04154 | ||||
| 90447-08083 | ||||
| 90999-92002 | ||||
| 91621-60812 | ||||
| Linked diagrams | ||||
| 1603 | ||||
