Toyota Mr2 ZZW30 WIRING & CLAMP - JDM Part Detective

ZZW30R-AKLQHW (2002)

Toyota Mr2

Production Aug 2002 - Sep 2005

Engine 1ZZFE

Transmission 6FS MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 7(9912-0509)

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07156	ZZW30	12/1999 - 08/2002	1
90980-07156	ZZW30	08/2002 - 09/2005	1
82121 - WIRE, ENGINE
82121-17551	ZZW30..6F	08/2002 - 09/2005	1
82121-17521	ZZW30..6FS..EUR	08/2002 - 09/2005	1
82123 - WIRE, ENGINE, NO.3
82123-17100	ZZW30	08/2002 - 09/2005	1
82123-17100	ZZW30	12/1999 - 08/2002	1
82124 - WIRE, ENGINE, NO.4
82124-32050	ZZW30	12/1999 - 08/2002	1
82124-32050	ZZW30	08/2002 - 09/2005	1
82823S - CAP, STARTER TERMINAL
82823-35040	ZZW30	08/2002 - 09/2005	1
82823-35040	ZZW30	12/1999 - 08/2002	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	ZZW30	12/1999 - 08/2002	1
82823-22050	ZZW30	08/2002 - 09/2005	1
82824D - CONNECTOR, WIRING HARNESS
82824-22120	ZZW30..6FS	08/2002 - 09/2005	1
82824-50110	ZZW30..6F	08/2002 - 09/2005	1
Common parts
90116-06127
90119-06390
90179-06158
91611-B0816
91612-B1014
91621-J0612
91622-61014
91635-G0616
91651-60618
94150-80640

ILLUST NO. 4 OF 7(9912-0509)

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-17470	ZZW30..RHD..EUR	08/2002 - 09/2005	1
82151-17470	ZZW30..RHD..EUR	12/1999 - 08/2002	1
82152 - WIRE, FRONT DOOR, LH
82152-17420	ZZW30..RHD..EUR	12/1999 - 08/2002	1
82152-17420	ZZW30..RHD..EUR	08/2002 - 09/2005	1

ILLUST NO. 5 OF 7(9912-0509)

Click highlighted areas on diagram

FLOOR & REAR WINDOW

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-17471	ZZW30..6FS..EUR	08/2002 - 02/2004	1
82161-17511	ZZW30..6F	08/2002 - 02/2004	1
82161-17512	ZZW30..6F	02/2004 - 09/2005	1
82161-17472	ZZW30..6FS..EUR	02/2004 - 09/2005	1
82186 - WIRE, REAR WINDOW, NO.1
82186-17010	ZZW30	12/1999 - 08/2002	1
82186-17010	ZZW30	08/2002 - 09/2005	1
82187 - WIRE, REAR WINDOW, NO.2
82187-17030	ZZW30	12/1999 - 08/2002	1
82187-17030	ZZW30	08/2002 - 09/2005	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12400	ZZW30	08/2002 - 09/2005	2
82817-12400	ZZW30	12/1999 - 08/2002	2
Common parts
90119-06390
91631-J0612

ILLUST NO. 6 OF 7(9912-0509)

Click highlighted areas on diagram

LUGGAGE

Part #	Description	Period	Qty
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-17621	ZZW30..RHD..6F	08/2002 - 02/2004	1
82181-17620	ZZW30..RHD	12/1999 - 08/2002	1
82181-17660	ZZW30..RHD..6FS..EUR	08/2002 - 02/2004	1
82181-17661	ZZW30..RHD..6FS..EUR	02/2004 - 09/2005	1
82181-17622	ZZW30..RHD..6F	02/2004 - 09/2005	1
82210C - FUSIBLE LINK
90982-08282	ZZW30 50A,TERM.:FEMALE,RED	12/1999 - 08/2002	1
90982-08281	ZZW30 40A,TERM.:FEMALE,GRN	08/2002 - 09/2005	2
90982-08246	ZZW30 100A,TERM.:MALE,BLUE	12/1999 - 08/2002	1
90982-08281	ZZW30 40A,TERM.:FEMALE,GRN	12/1999 - 08/2002	1
90982-08282	ZZW30 50A,TERM.:FEMALE,RED	08/2002 - 09/2005	2
90982-08246	ZZW30 100A,TERM.:MALE,BLUE	08/2002 - 09/2005	1
82666E - HOLDER, CONNECTOR NO.6
82666-16030	ZZW30	12/1999 - 08/2002	1
82666-16030	ZZW30	08/2002 - 09/2005	1
82821A - COVER, CONNECTOR
82821-10050	ZZW30	08/2002 - 09/2005	1
82821-10050	ZZW30	12/1999 - 08/2002	1
Common parts
90119-06390
Linked diagrams
8401

ILLUST NO. 7 OF 7(9912-0509)

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-1E350
82711-24420
82711-3F040
82711-3F230
82715-17080
82715-17120
82715-17150
82715-17160
82715-17170
82715-32390
82715-32400
82715-47190
82729-20010
88267-17140
88267-17150
90179-06159
91511-B0614
91621-J0612

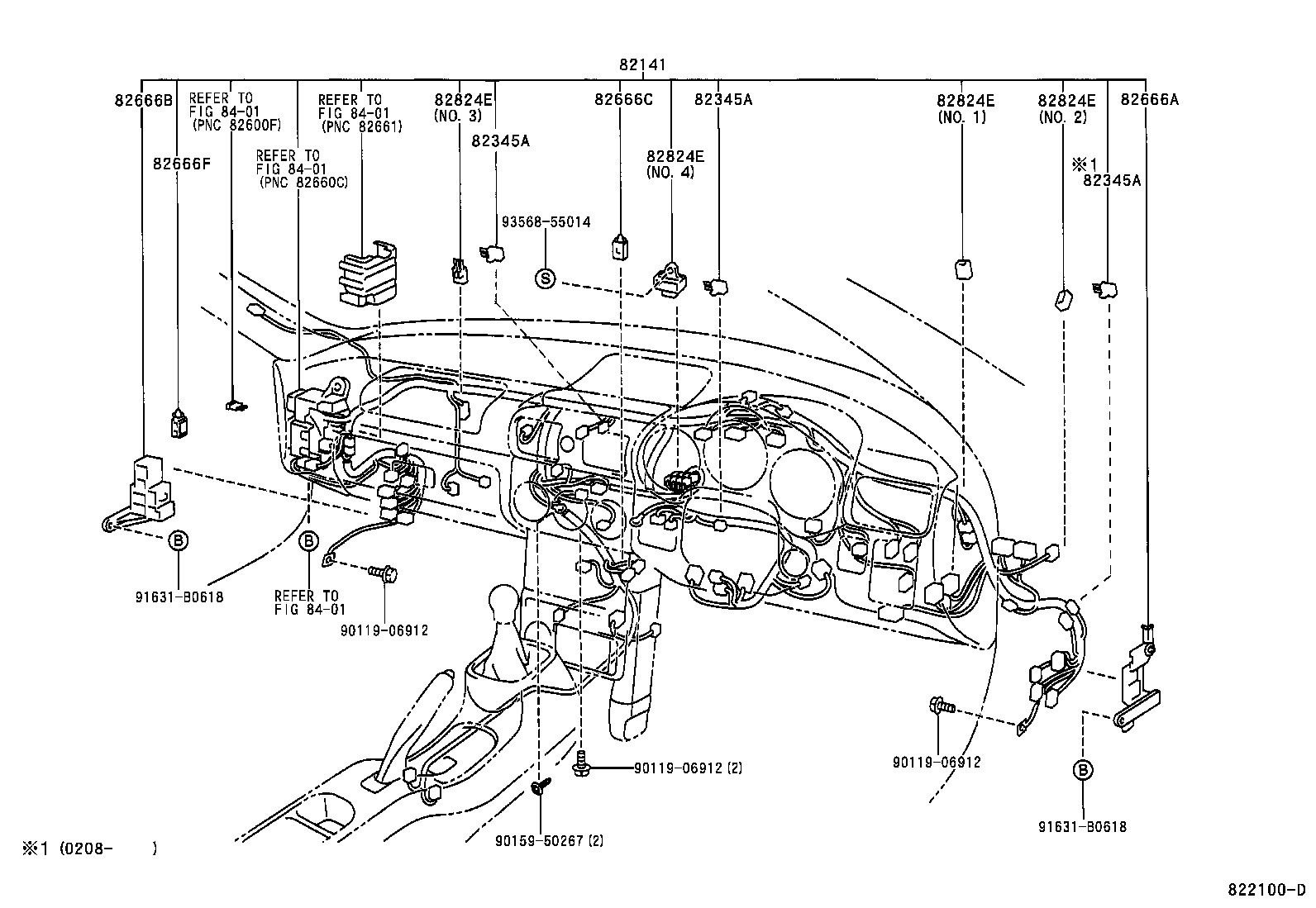

ILLUST NO. 3 OF 7(9912-0509)RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-17040	ZZW30..RHD	12/1999 - 08/2000	1
82141-17042	ZZW30..RHD..6F	08/2002 - 02/2004	1
82141-17110	ZZW30..RHD..6FS..EUR	08/2002 - 02/2004	1
82141-17111	ZZW30..RHD..6FS..EUR	02/2004 - 09/2005	1
82141-17043	ZZW30..RHD..6F	02/2004 - 09/2005	1
82345A - DIODE
82345-12050	ZZW30..RHD..6F;ZZW30..6FS..EUR	08/2002 - 09/2005	3
82345-12050	ZZW30..EUR	12/1999 - 08/2002	2
82345A - DIODE
82345-12050	ZZW30..RHD..6F;ZZW30..6FS..EUR	08/2002 - 09/2005	3
82345-12050	ZZW30..EUR	12/1999 - 08/2002	2
82345A - DIODE
82345-12050	ZZW30..RHD..6F;ZZW30..6FS..EUR	08/2002 - 09/2005	3
82345-12050	ZZW30..EUR	12/1999 - 08/2002	2
82666A - HOLDER, CONNECTOR NO.2
82666-17070	ZZW30	12/1999 - 08/2002	1
82666-17070	ZZW30	08/2002 - 09/2005	1
82666B - HOLDER, CONNECTOR NO.3
82666-17080	ZZW30	08/2002 - 09/2005	1
82666-17080	ZZW30	12/1999 - 08/2002	1
82666C - HOLDER, CONNECTOR NO.4
82666-17090	ZZW30	12/1999 - 08/2002	1
82666-17090	ZZW30	08/2002 - 09/2005	1
82666F - HOLDER, CONNECTOR NO.7
82666-16030	ZZW30..EUR	08/2002 - 09/2005	1
82666-16030	ZZW30..EUR	12/1999 - 08/2002	1
82824E - CONNECTOR, WIRING HARNESS
82824-30210	ZZW30 NO.4	12/1999 - 08/2002	1
82824-12220	ZZW30 NO.1	12/1999 - 08/2002	1
82824-22120	ZZW30 NO.2	12/1999 - 08/2002	1
82824-22070	ZZW30..6FS NO.2	08/2002 - 09/2005	1
82824-30210	ZZW30 NO.4	08/2002 - 09/2005	1
82824-12220	ZZW30 NO.1	08/2002 - 09/2005	1
82824-30130	ZZW30 NO.3	08/2002 - 09/2005	1
82824-30130	ZZW30 NO.3	12/1999 - 08/2002	1
82824E - CONNECTOR, WIRING HARNESS
82824-30210	ZZW30 NO.4	12/1999 - 08/2002	1
82824-12220	ZZW30 NO.1	12/1999 - 08/2002	1
82824-22120	ZZW30 NO.2	12/1999 - 08/2002	1
82824-22070	ZZW30..6FS NO.2	08/2002 - 09/2005	1
82824-30210	ZZW30 NO.4	08/2002 - 09/2005	1
82824-12220	ZZW30 NO.1	08/2002 - 09/2005	1
82824-30130	ZZW30 NO.3	08/2002 - 09/2005	1
82824-30130	ZZW30 NO.3	12/1999 - 08/2002	1
82824E - CONNECTOR, WIRING HARNESS
82824-30210	ZZW30 NO.4	12/1999 - 08/2002	1
82824-12220	ZZW30 NO.1	12/1999 - 08/2002	1
82824-22120	ZZW30 NO.2	12/1999 - 08/2002	1
82824-22070	ZZW30..6FS NO.2	08/2002 - 09/2005	1
82824-30210	ZZW30 NO.4	08/2002 - 09/2005	1
82824-12220	ZZW30 NO.1	08/2002 - 09/2005	1
82824-30130	ZZW30 NO.3	08/2002 - 09/2005	1
82824-30130	ZZW30 NO.3	12/1999 - 08/2002	1
82824E - CONNECTOR, WIRING HARNESS
82824-30210	ZZW30 NO.4	12/1999 - 08/2002	1
82824-12220	ZZW30 NO.1	12/1999 - 08/2002	1
82824-22120	ZZW30 NO.2	12/1999 - 08/2002	1
82824-22070	ZZW30..6FS NO.2	08/2002 - 09/2005	1
82824-30210	ZZW30 NO.4	08/2002 - 09/2005	1
82824-12220	ZZW30 NO.1	08/2002 - 09/2005	1
82824-30130	ZZW30 NO.3	08/2002 - 09/2005	1
82824-30130	ZZW30 NO.3	12/1999 - 08/2002	1
Common parts
90119-06912
90159-50267
91631-B0618
93568-55014
Linked diagrams
8401

ILLUST NO. 1 OF 7(9912-0509)

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-17672	ZZW30..6FS..EUR	02/2004 - 09/2005	1
82111-17711	ZZW30..6F	08/2002 - 02/2004	1
82111-17671	ZZW30..6FS..EUR	08/2002 - 02/2004	1
82111-17712	ZZW30..6F	02/2004 - 09/2005	1
82210C - FUSIBLE LINK
90982-08282	ZZW30 50A,TERM.:FEMALE,RED	12/1999 - 08/2002	1
90982-08281	ZZW30 40A,TERM.:FEMALE,GRN	08/2002 - 09/2005	2
90982-08246	ZZW30 100A,TERM.:MALE,BLUE	12/1999 - 08/2002	1
90982-08281	ZZW30 40A,TERM.:FEMALE,GRN	12/1999 - 08/2002	1
90982-08282	ZZW30 50A,TERM.:FEMALE,RED	08/2002 - 09/2005	2
90982-08246	ZZW30 100A,TERM.:MALE,BLUE	08/2002 - 09/2005	1
82821E - COVER, CONNECTOR
82821-17020	ZZW30	08/2002 - 09/2005	1
82821-17020	ZZW30	12/1999 - 08/2002	1
Common parts
82821-35050
90119-05021
90119-06390
90119-06651
Linked diagrams
8401
