ZZW30R-AKLQHW (2002)

Toyota Mr2

Production Aug 2002 - Sep 2005
Engine 1ZZFE
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

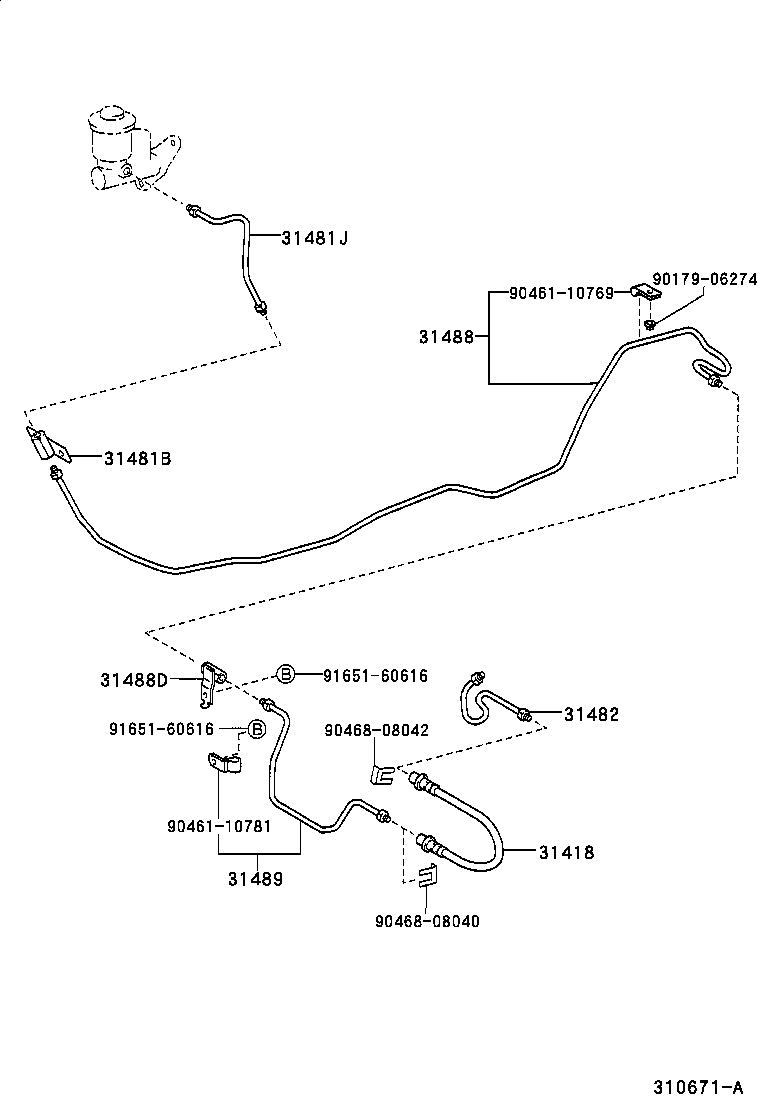

ILLUST NO. 2 OF 2(9912-0509)RHD..5F,6F

Click highlighted areas on diagram

diagram 31418 31481B 31481J 31482 31488 31488D 31489 9017906274 9046110769 9046110781 9046808040 9046808042 9165160616 9165160616
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01144

ZZW30..6F

 1
31481B - WAY(FOR CLUTCH TUBE)
90412-12050

ZZW30..6F

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-17090

ZZW30..RHD..6F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-17050

ZZW30..6F

 1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-17011

ZZW30..6F

 1
31488D - WAY, 2(FOR CLUTCH TUBE TO RELEASE CYLINDER)
90412-12048

ZZW30..6F

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-17040

ZZW30..6F

 1
Common parts
90179-06274
90461-10769
90461-10781
90468-08040
90468-08042
91651-60616

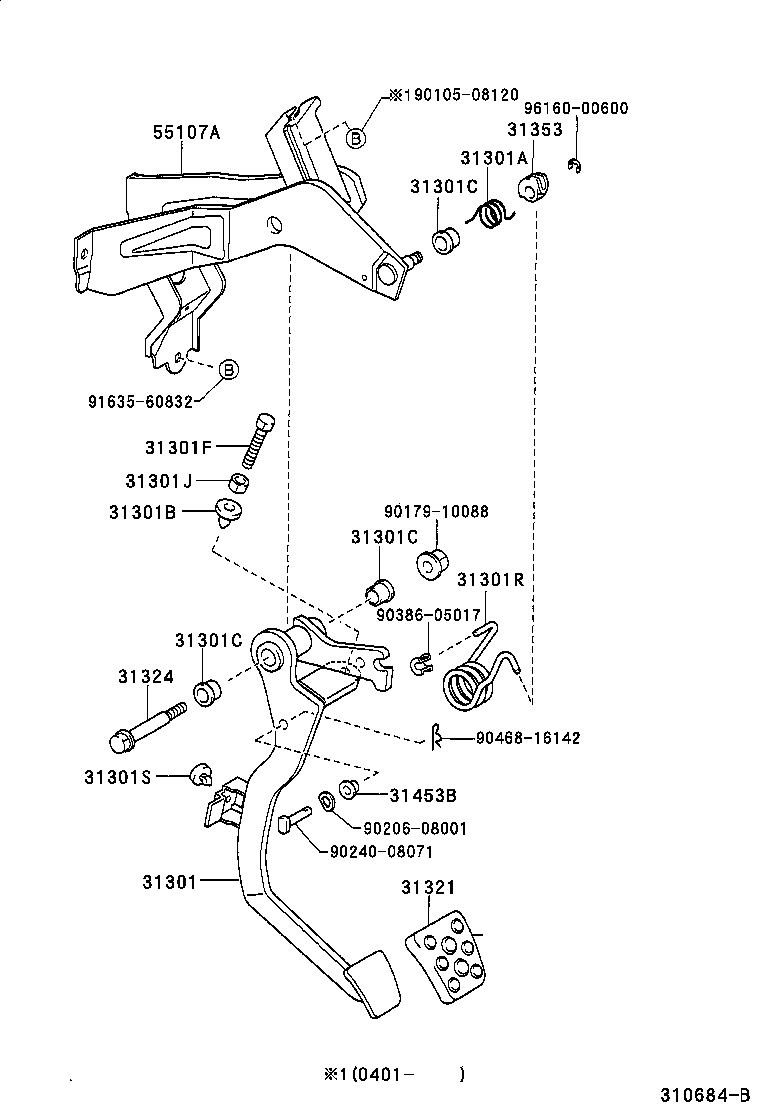

ILLUST NO. 1 OF 2(9912-0509)RHD..5F,6F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301C 31301F 31301J 31301R 31301S 31321 31324 31353 31453B 55107A 9010508120 9017910088 9020608001 9024008071 9038605017 9046816142 9163560832 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-17090

ZZW30..RHD..6F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03038

ZZW30..6F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZZW30..6F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZZW30..RHD..6F

 3
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZZW30..RHD..6F

 3
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZZW30..RHD..6F

 3
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ZZW30..6F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-61000

ZZW30..6F

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03094

ZZW30..RHD..6F

 1
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06047

ZZW30..6F

 1
31321 - PAD, CLUTCH PEDAL
31321-53010

ZZW30..6F

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10167

ZZW30..6F

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-14010

ZZW30..6F

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08054

ZZW30..6F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-17080

ZZW30..RHD..6F

 1
55107-17060

ZZW30..RHD..6F

 1
Common parts
90105-08120
90179-10088
90206-08001
90240-08071
90386-05017
90468-16142
91635-60832
96160-00600
