Toyota Mr2 ZZW30 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
US
MR2
ZZW30R-AKFQHW (2002)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ZZW30R-AKFQHW (2002)

Toyota Mr2

Production Aug 2002 - Sep 2005

Engine 1ZZFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

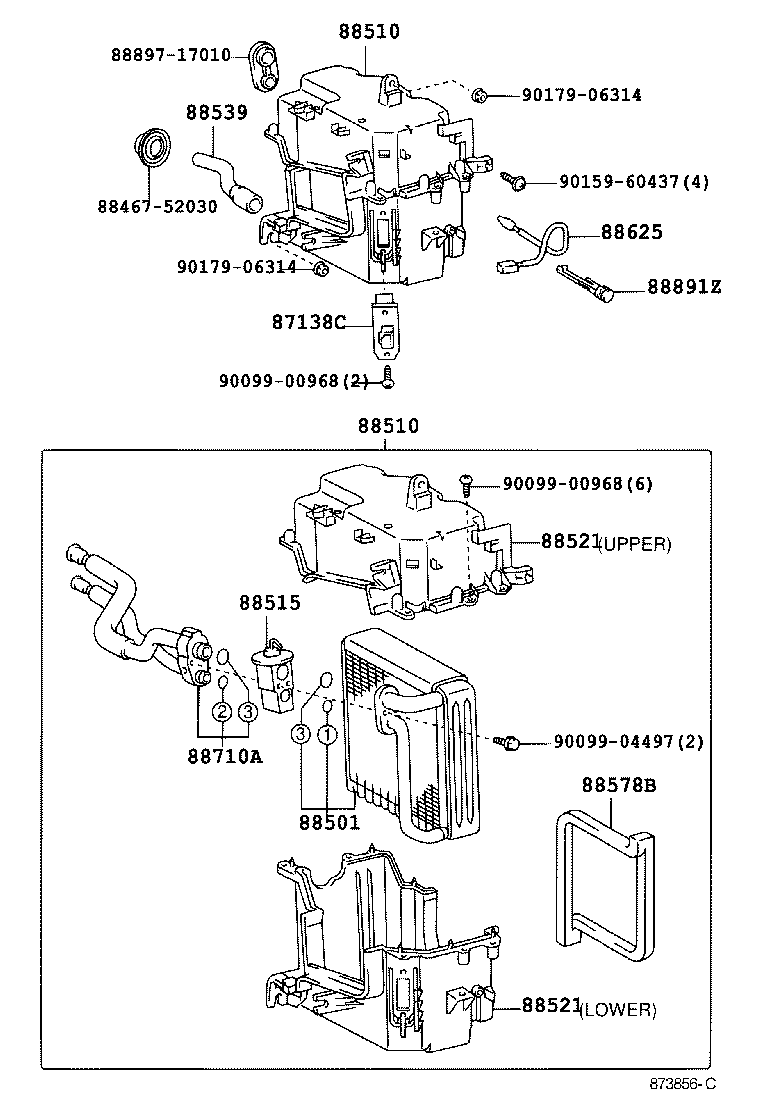

ILLUST NO. 2 OF 2(9912-0509)

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(9912-0509)RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-17050	ZZW30	08/2002 - 09/2005	1
87138-16140	ZZW30	12/1999 - 06/2000	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-17070	ZZW30..RHD	12/1999 - 08/2002	1
88501-17070	ZZW30..RHD	08/2002 - 09/2005	1
88510 - UNIT ASSY, COOLER
88510-17290	ZZW30..RHD	12/1999 - 08/2002	1
88510-17290	ZZW30..RHD	08/2002 - 09/2005	1
88510 - UNIT ASSY, COOLER
88510-17290	ZZW30..RHD	12/1999 - 08/2002	1
88510-17290	ZZW30..RHD	08/2002 - 09/2005	1
88515 - VALVE, COOLER EXPANSION
88515-16060	ZZW30..EUR DEALER OPITON	08/2002 - 02/2004	1
88515-16060	ZZW30	12/1999 - 08/2002	1
88515-28160	ZZW30..EUR DEALER OPITON	02/2004 - 09/2005	1
88515-16060	ZZW30	08/2002 - 10/2003	1
88515-28160	ZZW30	11/2003 - 09/2005	1
88521 - CASE, COOLER UNIT
88521-17010	ZZW30..RHD UPPER	08/2002 - 09/2005	1
88521-17020	ZZW30..RHD LOWER	12/1999 - 08/2002	1
88521-17020	ZZW30..RHD LOWER	08/2002 - 09/2005	1
88521-17010	ZZW30..RHD UPPER	12/1999 - 08/2002	1
88521 - CASE, COOLER UNIT
88521-17010	ZZW30..RHD UPPER	08/2002 - 09/2005	1
88521-17020	ZZW30..RHD LOWER	12/1999 - 08/2002	1
88521-17020	ZZW30..RHD LOWER	08/2002 - 09/2005	1
88521-17010	ZZW30..RHD UPPER	12/1999 - 08/2002	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-17050	ZZW30..RHD	12/1999 - 08/2002	1
88539-17050	ZZW30..RHD	08/2002 - 09/2005	1
88578B - PACKING, COOLING UNIT, NO.1
88578-22210	ZZW30	12/1999 - 08/2002	1
88578-22210	ZZW30	08/2002 - 09/2005	1
88625 - THERMISTOR, COOLER, NO.1
88625-17130	ZZW30	08/2002 - 09/2005	1
88625-17130	ZZW30	12/1999 - 08/2002	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-17140	ZZW30..RHD	08/2002 - 09/2005	1
88710-17140	ZZW30..RHD	12/1999 - 08/2002	1
88891Z - BRACKET, COOLER THERMISTOR
88891-20240	ZZW30	08/2002 - 09/2005	1
88891-20240	ZZW30	12/1999 - 08/2002	1
Common parts
88467-52030
88897-17010
90099-00968
90099-04497
90159-60437
90179-06314

ILLUST NO. 2 OF 2(9912-0501)

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(9912-0501)

Click highlighted areas on diagram

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-17050	ZZW30	08/2002 - 09/2005	1
87138-16140	ZZW30	12/1999 - 06/2000	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-17070	ZZW30..RHD	12/1999 - 08/2002	1
88501-17070	ZZW30..RHD	08/2002 - 09/2005	1
88510 - UNIT ASSY, COOLER
88510-17290	ZZW30..RHD	12/1999 - 08/2002	1
88510-17290	ZZW30..RHD	08/2002 - 09/2005	1
88510 - UNIT ASSY, COOLER
88510-17290	ZZW30..RHD	12/1999 - 08/2002	1
88510-17290	ZZW30..RHD	08/2002 - 09/2005	1
88515 - VALVE, COOLER EXPANSION
88515-16060	ZZW30..EUR DEALER OPITON	08/2002 - 02/2004	1
88515-16060	ZZW30	12/1999 - 08/2002	1
88515-28160	ZZW30..EUR DEALER OPITON	02/2004 - 09/2005	1
88515-16060	ZZW30	08/2002 - 10/2003	1
88515-28160	ZZW30	11/2003 - 09/2005	1
88521 - CASE, COOLER UNIT
88521-17010	ZZW30..RHD UPPER	08/2002 - 09/2005	1
88521-17020	ZZW30..RHD LOWER	12/1999 - 08/2002	1
88521-17020	ZZW30..RHD LOWER	08/2002 - 09/2005	1
88521-17010	ZZW30..RHD UPPER	12/1999 - 08/2002	1
88521 - CASE, COOLER UNIT
88521-17010	ZZW30..RHD UPPER	08/2002 - 09/2005	1
88521-17020	ZZW30..RHD LOWER	12/1999 - 08/2002	1
88521-17020	ZZW30..RHD LOWER	08/2002 - 09/2005	1
88521-17010	ZZW30..RHD UPPER	12/1999 - 08/2002	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-17050	ZZW30..RHD	12/1999 - 08/2002	1
88539-17050	ZZW30..RHD	08/2002 - 09/2005	1
88578B - PACKING, COOLING UNIT, NO.1
88578-22210	ZZW30	12/1999 - 08/2002	1
88578-22210	ZZW30	08/2002 - 09/2005	1
88625 - THERMISTOR, COOLER, NO.1
88625-17130	ZZW30	08/2002 - 09/2005	1
88625-17130	ZZW30	12/1999 - 08/2002	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-17140	ZZW30..RHD	12/1999 - 08/2002	1
88710-17140	ZZW30..RHD	08/2002 - 09/2005	1
88891Z - BRACKET, COOLER THERMISTOR
88891-20240	ZZW30	08/2002 - 09/2005	1
88891-20240	ZZW30	12/1999 - 08/2002	1
Common parts
88467-52030
88897-17010
90099-00968
90099-04497
90159-60437
90179-06314

ZZW30R-AKFQHW (2002)

ILLUST NO. 2 OF 2(9912-0509)

ILLUST NO. 1 OF 2(9912-0509)RHD

ILLUST NO. 2 OF 2(9912-0501)

ILLUST NO. 1 OF 2(9912-0501)

Part Price Details
