ZZW30R-AKFQHW (2002)
Toyota Mr2

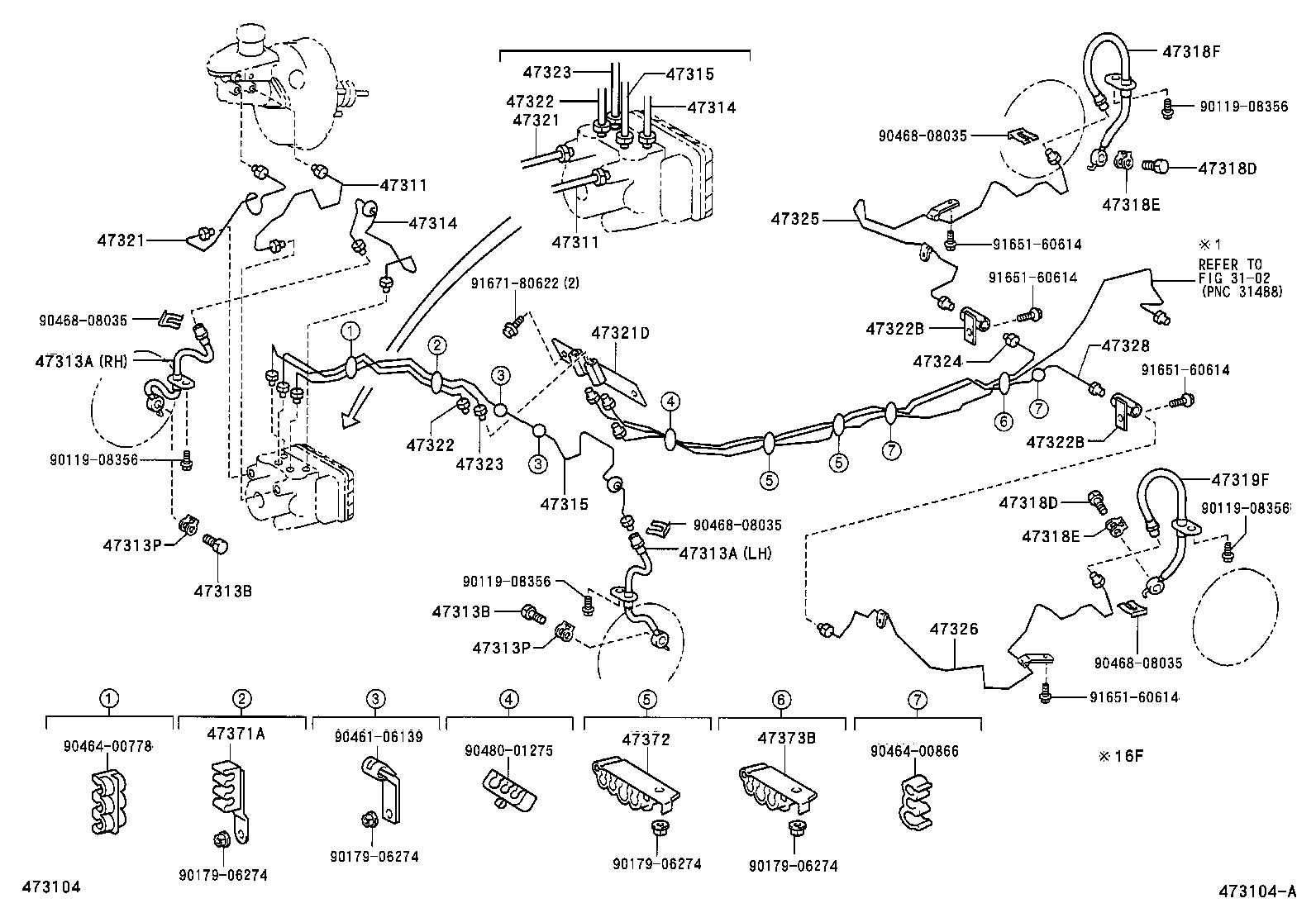

ILLUST NO. 1 OF 2(0208- )RHD..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-17150 |
ZZW30..RHD |
1 | ||
| 47311-17170 |
ZZW30..RHD..6F |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-17150 |
ZZW30..RHD |
1 | ||
| 47311-17170 |
ZZW30..RHD..6F |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B63 |
ZZW30 RH |
1 | ||
| 90947-02B64 |
ZZW30 LH |
1 | ||
| 90947-02B64 |
ZZW30 LH |
1 | ||
| 90947-02B63 |
ZZW30 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B63 |
ZZW30 RH |
1 | ||
| 90947-02B64 |
ZZW30 LH |
1 | ||
| 90947-02B64 |
ZZW30 LH |
1 | ||
| 90947-02B63 |
ZZW30 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
ZZW30 |
2 | ||
| 90401-10015 |
ZZW30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
ZZW30 |
2 | ||
| 90401-10015 |
ZZW30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZW30 |
2 | ||
| 47389-50020 |
ZZW30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZW30 |
2 | ||
| 47389-50020 |
ZZW30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-17160 |
ZZW30..RHD |
1 | ||
| 47314-17220 |
ZZW30..RHD..6F |
1 | ||
| 47314-17180 |
ZZW30..RHD..6F |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-17160 |
ZZW30..RHD |
1 | ||
| 47314-17220 |
ZZW30..RHD..6F |
1 | ||
| 47314-17180 |
ZZW30..RHD..6F |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-17040 |
ZZW30..RHD |
1 | ||
| 47315-17060 |
ZZW30..RHD..6F |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-17040 |
ZZW30..RHD |
1 | ||
| 47315-17060 |
ZZW30..RHD..6F |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ZZW30 |
2 | ||
| 90401-10015 |
ZZW30 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ZZW30 |
2 | ||
| 90401-10015 |
ZZW30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZW30 |
2 | ||
| 47389-50020 |
ZZW30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZW30 |
2 | ||
| 47389-50020 |
ZZW30 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02B61 |
ZZW30 |
1 | ||
| 90947-02B61 |
ZZW30 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02B62 |
ZZW30 |
1 | ||
| 90947-02B62 |
ZZW30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-17190 |
ZZW30..RHD..6F |
1 | ||
| 47321-17170 |
ZZW30..RHD |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-17190 |
ZZW30..RHD..6F |
1 | ||
| 47321-17170 |
ZZW30..RHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10231 |
ZZW30..6F |
1 | ||
| 90412-10231 |
ZZW30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-17130 |
ZZW30..RHD |
1 | ||
| 47322-17150 |
ZZW30..RHD..6F |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-17130 |
ZZW30..RHD |
1 | ||
| 47322-17150 |
ZZW30..RHD..6F |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-10144 |
ZZW30 |
2 | ||
| 90412-10144 |
ZZW30 |
2 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-10144 |
ZZW30 |
2 | ||
| 90412-10144 |
ZZW30 |
2 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-17100 |
ZZW30..RHD |
1 | ||
| 47323-17130 |
ZZW30..RHD..6F |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-17100 |
ZZW30..RHD |
1 | ||
| 47323-17130 |
ZZW30..RHD..6F |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-17041 |
ZZW30 |
1 | ||
| 47324-17040 |
ZZW30 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-17040 |
ZZW30 |
1 | ||
| 47325-17030 |
ZZW30 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-17030 |
ZZW30 |
1 | ||
| 47326-17040 |
ZZW30 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-17030 |
ZZW30 |
1 | ||
| 47328-17031 |
ZZW30 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-12010 |
ZZW30 |
1 | ||
| 47373-12010 |
ZZW30 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-17030 |
ZZW30 |
2 | ||
| 47371-17030 |
ZZW30 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-17010 |
ZZW30 |
1 | ||
| 47371-17010 |
ZZW30 |
1 | ||
| Common parts | ||||
| 90119-08356 | ||||
| 90179-06274 | ||||
| 90461-06139 | ||||
| 90464-00778 | ||||
| 90464-00866 | ||||
| 90468-08035 | ||||
| 90480-01275 | ||||
| 91651-60614 | ||||
| 91671-80622 | ||||
| Linked diagrams | ||||
| 3102 | ||||

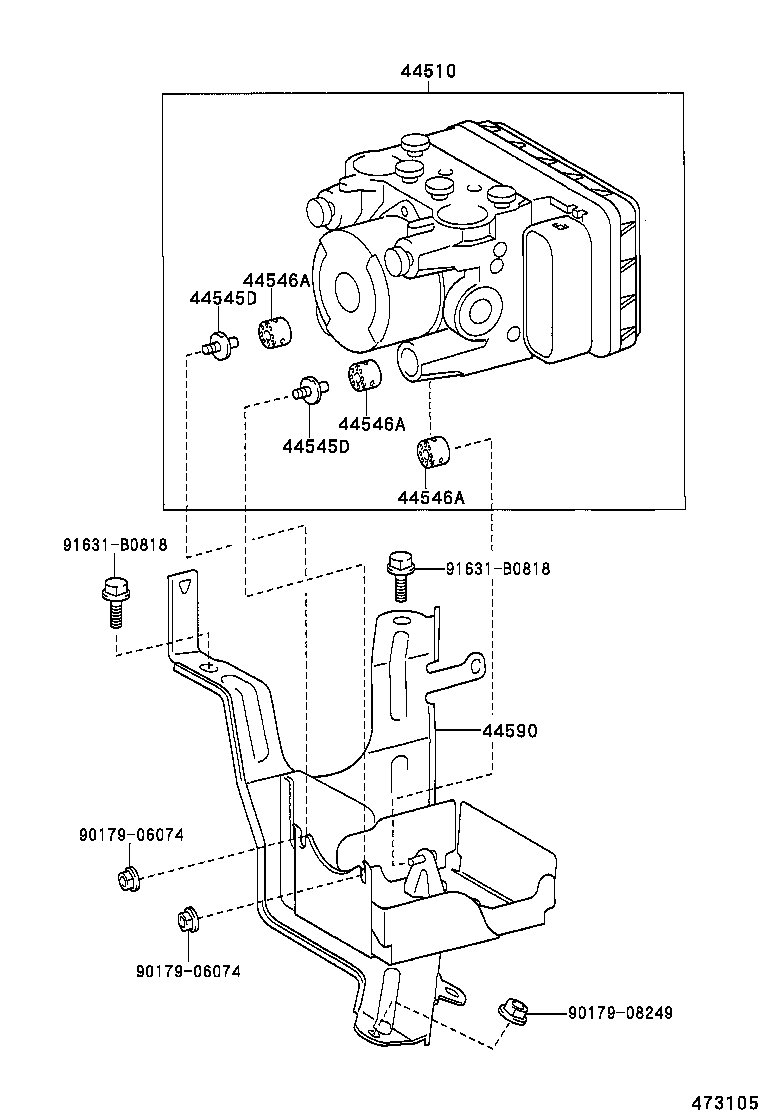

ILLUST NO. 2 OF 2(0208- )RHD..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-17040 |
ZZW30..6F |
1 | ||
| 44050-17030 |
ZZW30 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ZZW30..6F |
2 | ||
| 44545-42020 |
ZZW30 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ZZW30..6F |
2 | ||
| 44545-42020 |
ZZW30 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZZW30..6F |
3 | ||
| 44546-42020 |
ZZW30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZZW30..6F |
3 | ||
| 44546-42020 |
ZZW30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZZW30..6F |
3 | ||
| 44546-42020 |
ZZW30 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-17040 |
ZZW30..RHD |
1 | ||
| 44590-17080 |
ZZW30..RHD..6F |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08249 | ||||
| 91631-B0818 | ||||

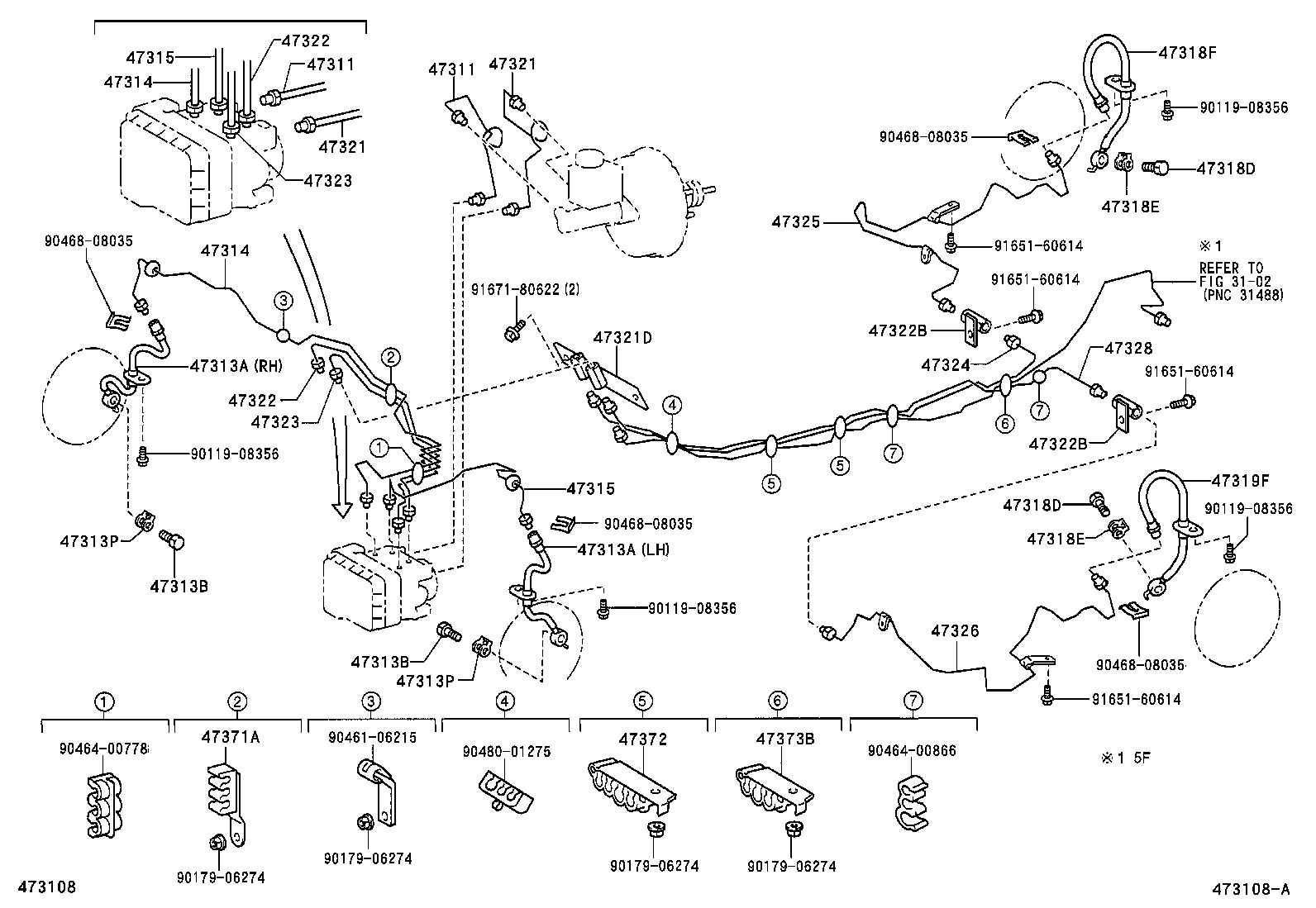

ILLUST NO. 1 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08356 | ||||
| 90179-06274 | ||||
| 90461-06215 | ||||
| 90464-00778 | ||||
| 90464-00866 | ||||
| 90468-08035 | ||||
| 90480-01275 | ||||
| 91651-60614 | ||||
| 91671-80622 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-17040 |
ZZW30..6F |
1 | ||
| 44050-17030 |
ZZW30 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ZZW30..6F |
2 | ||
| 44545-42020 |
ZZW30 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ZZW30..6F |
2 | ||
| 44545-42020 |
ZZW30 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZZW30..6F |
3 | ||
| 44546-42020 |
ZZW30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZZW30..6F |
3 | ||
| 44546-42020 |
ZZW30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZZW30..6F |
3 | ||
| 44546-42020 |
ZZW30 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-17040 |
ZZW30..RHD |
1 | ||
| 44590-17080 |
ZZW30..RHD..6F |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08249 | ||||
| 91631-B0818 | ||||
