ZZW30L-AKLQHW (2002)
Toyota Mr2

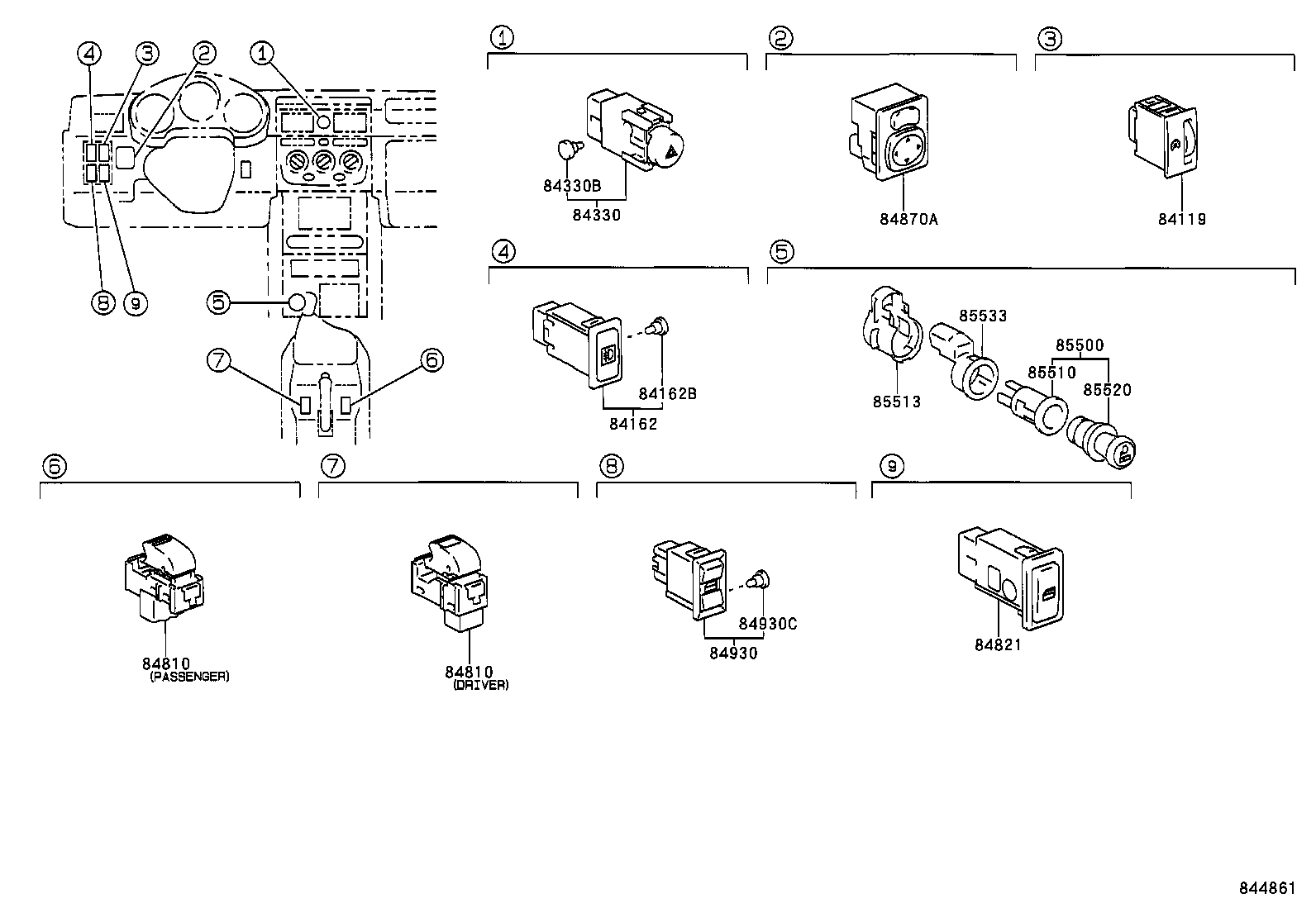

ILLUST NO. 5 OF 7(0208- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-17050 |
ZZW30 |
1 | ||
| 84119-17050 |
ZZW30 |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-44010 |
ZZW30..EUR |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
ZZW30..EUR 14V 0.84W |
2 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
ZZW30..EUR 14V 0.84W |
2 | ||
| 84162E - CAP, FOG LAMP BULB | ||||
| 84998-10090 |
ZZW30..EUR |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20340 |
ZZW30 |
1 | ||
| 84332-20340 |
ZZW30 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
ZZW30 14V 0.84W |
1 | ||
| 84999-10320 |
ZZW30 14V 0.84W |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-17040 |
ZZW30 PASSENGER |
1 | ||
| 84810-17040 |
ZZW30 PASSENGER |
1 | ||
| 84810-17050 |
ZZW30 DRIVER |
1 | ||
| 84810-17050 |
ZZW30 DRIVER |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-17040 |
ZZW30 PASSENGER |
1 | ||
| 84810-17040 |
ZZW30 PASSENGER |
1 | ||
| 84810-17050 |
ZZW30 DRIVER |
1 | ||
| 84810-17050 |
ZZW30 DRIVER |
1 | ||
| 84821 - SWITCH, POWER WINDOW LOCK | ||||
| 84821-20020 |
ZZW30 |
1 | ||
| 84821-20020 |
ZZW30 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ZZW30 |
1 | ||
| 84870-34010 |
ZZW30 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-52010 |
ZZW30 |
1 | ||
| 84930-52010 |
ZZW30 |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10310 |
ZZW30 14V 0.91W |
1 | ||
| 84999-10310 |
ZZW30 14V 0.91W |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-33040 |
ZZW30..6FS |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
ZZW30 |
1 | ||
| 85500-12240 |
ZZW30 |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
ZZW30 |
1 | ||
| 85510-16040 |
ZZW30 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
ZZW30 |
1 | ||
| 85513-12020 |
ZZW30 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZZW30 |
1 | ||
| 85520-28010 |
ZZW30 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
ZZW30 |
1 | ||
| 85533-26010 |
ZZW30 |
1 | ||

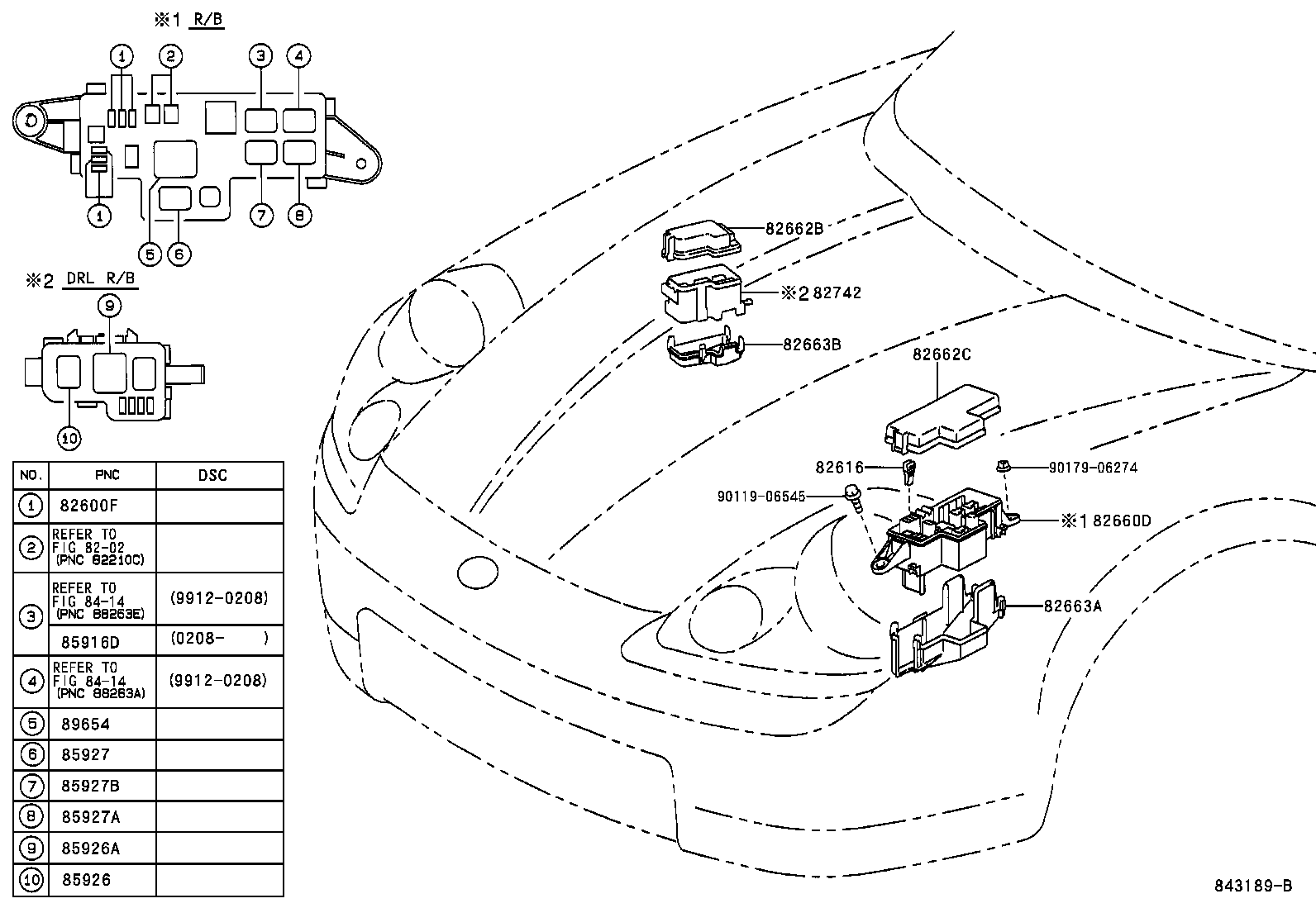

ILLUST NO. 2 OF 7(9912-0501)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1ZZFE..ZZW30 |
1 | ||
| 28300-10020 |
1ZZFE..ZZW30 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02012 |
1ZZFE..ZZW30 |
1 | ||
| 90987-02027 |
1ZZFE..ZZW30 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
ZZW30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
ZZW30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
ZZW30 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ZZW30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ZZW30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
ZZW30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
ZZW30 25A,MINI FUSE |
1 | ||
| 90982-09009 |
ZZW30 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
ZZW30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
ZZW30 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
ZZW30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
ZZW30 15A,MINI FUSE,BLUE |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-17010 |
ZZW30 |
1 | ||
| 82610-17010 |
ZZW30 |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-17020 |
ZZW30 UPPER |
1 | ||
| 82611-17010 |
ZZW30 LOWER |
1 | ||
| 82611-17031 |
ZZW30 UPPER |
1 | ||
| 82611-17010 |
ZZW30 LOWER |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-17020 |
ZZW30 UPPER |
1 | ||
| 82611-17010 |
ZZW30 LOWER |
1 | ||
| 82611-17031 |
ZZW30 UPPER |
1 | ||
| 82611-17010 |
ZZW30 LOWER |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
ZZW30 |
1 | ||
| 82616-20010 |
ZZW30 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-17010 |
ZZW30 |
1 | ||
| 82662-17050 |
ZZW30 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33010 |
ZZW30 |
1 | ||
| 82663-33010 |
ZZW30 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-17010 |
ZZW30 |
1 | ||
| 82741-17010 |
ZZW30 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ZZW30 |
1 | ||
| 90987-02016 |
ZZW30 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
ZZW30 PART NUMBER LABEL=90987-02012 |
1 | ||
| 90987-02012 |
ZZW30..ARL;ZZW30..LHD PART NUMBER LABEL=90987-02012 |
1 | ||
| 90987-02028 |
ZZW30 P/N LABEL=9098702028 |
1 | ||
| 90987-02027 |
ZZW30 PART NUMBER LABEL=90987-02027 |
1 | ||
| 90987-02022 |
ZZW30..LHD P/N LABEL=9098702022 |
1 | ||
| 90987-02022 |
ZZW30 P/N LABEL=9098702022 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
ZZW30 |
1 | ||
| 90987-02027 |
ZZW30 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-17180 |
ZZW30 EXHAUST MANIFOLD |
2 | ||
| 89465-17200 |
ZZW30..EUR EXHAUST PIPE |
1 | ||
| 89465-17180 |
ZZW30..EUR EXHAUST MANIFOLD |
2 | ||
| 89465-17200 |
ZZW30..EUR EXHAUST PIPE |
1 | ||
| 89465-17201 |
ZZW30..EUR EXHAUST PIPE |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-17180 |
ZZW30 EXHAUST MANIFOLD |
2 | ||
| 89465-17200 |
ZZW30..EUR EXHAUST PIPE |
1 | ||
| 89465-17180 |
ZZW30..EUR EXHAUST MANIFOLD |
2 | ||
| 89465-17200 |
ZZW30..EUR EXHAUST PIPE |
1 | ||
| 89465-17201 |
ZZW30..EUR EXHAUST PIPE |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-17180 |
ZZW30 EXHAUST MANIFOLD |
2 | ||
| 89465-17200 |
ZZW30..EUR EXHAUST PIPE |
1 | ||
| 89465-17180 |
ZZW30..EUR EXHAUST MANIFOLD |
2 | ||
| 89465-17200 |
ZZW30..EUR EXHAUST PIPE |
1 | ||
| 89465-17201 |
ZZW30..EUR EXHAUST PIPE |
1 | ||
| 89531A - RELAY, TRANSMISSION CONTROL | ||||
| 89531-17010 |
ZZW30..6FS |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 91511-80614 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 3 OF 7(9912-0501)
FRONT LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06545 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8414 | ||||

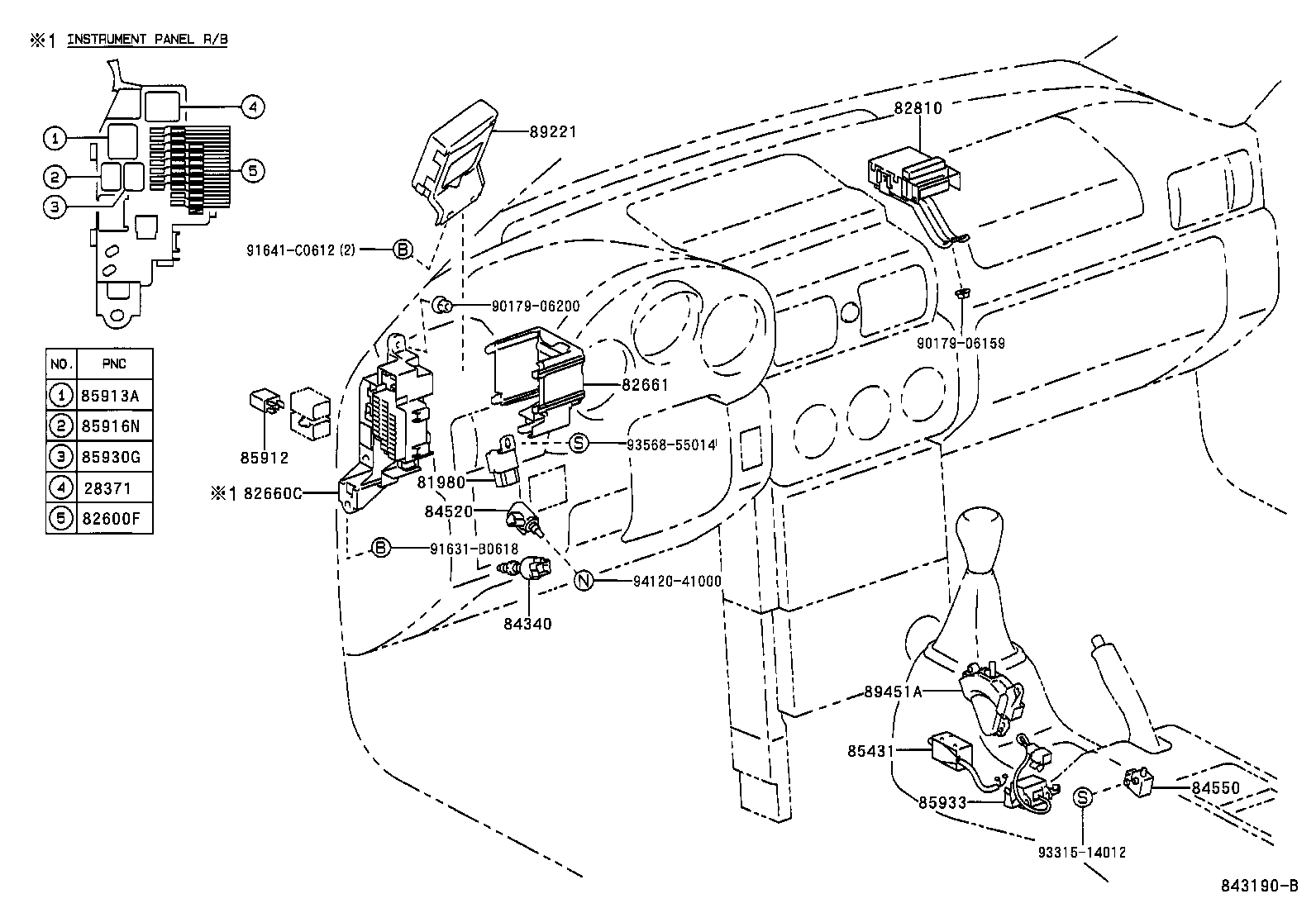

ILLUST NO. 4 OF 7(9912-0501)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06159 | ||||
| 90179-06200 | ||||
| 91631-B0618 | ||||
| 91641-C0612 | ||||
| 93315-14012 | ||||
| 93568-55014 | ||||
| 94120-41000 | ||||

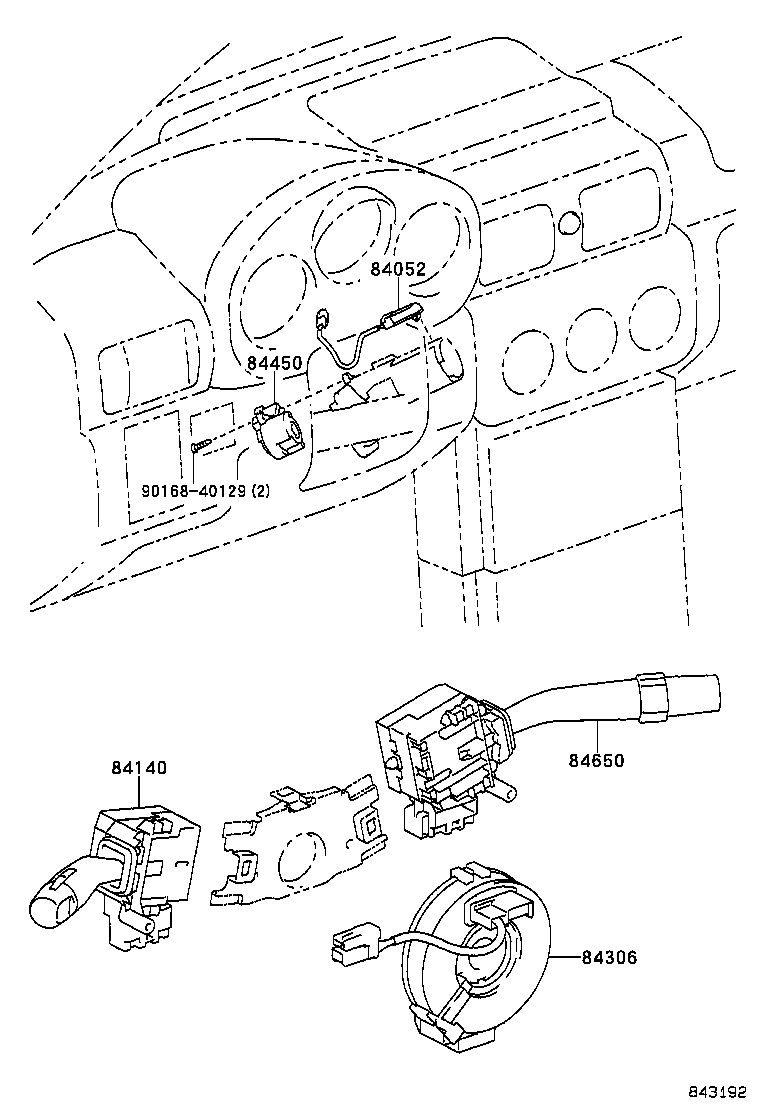

ILLUST NO. 6 OF 7(9912-0501)
IGNITION & COMBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90168-40129 | ||||

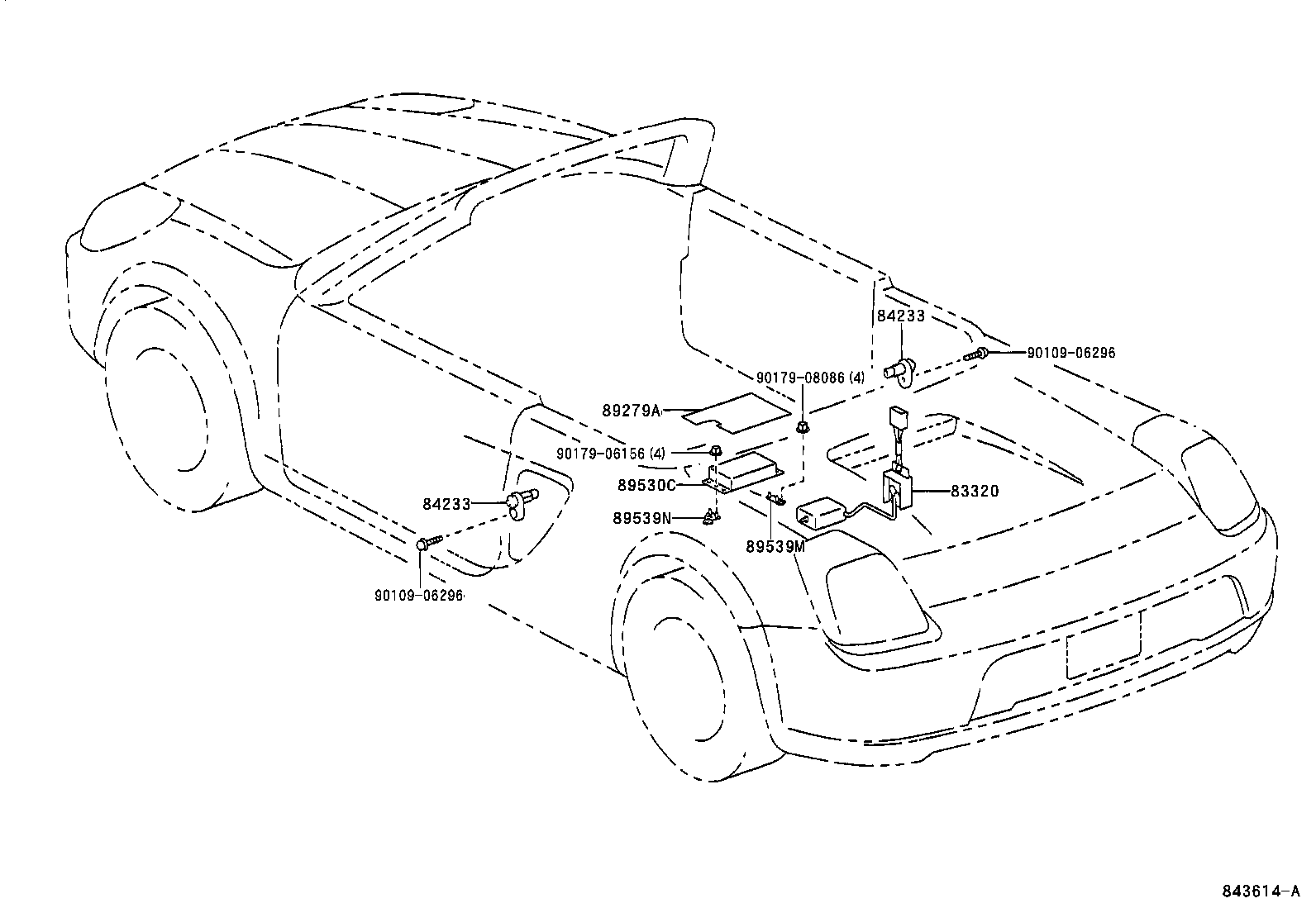

ILLUST NO. 7 OF 7(9912-0501)
DOOR & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06296 | ||||
| 90179-06156 | ||||
| 90179-08086 | ||||
ILLUST NO. 1 OF 7(9912-0501)
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ZZW30 YAZAKI |
1 | ||
| 83530-60020 |
ZZW30 YAZAKI |
1 | ||
| 83530-28020 |
ZZW30 DENSO |
1 | ||
| 83530-28020 |
ZZW30 DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14040 |
ZZW30..6F |
1 | ||
| 84210-12040 |
ZZW30..6FS |
2 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14040 |
ZZW30..6F |
1 | ||
| 84210-12040 |
ZZW30..6FS |
2 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14040 |
ZZW30..6F |
1 | ||
| 84210-12040 |
ZZW30..6FS |
2 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-17010 |
ZZW30..6FS |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12120 |
ZZW30 |
1 | ||
| 89615-12120 |
ZZW30 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90430-18008 | ||||
| 90959-01369 | ||||
| Linked diagrams | ||||
| 3307 | ||||
ILLUST NO. 5 OF 7(0208-0501)
INSTRUMENT PANEL
| Part # | Description | Qty | Price |
|---|
