SW21L-AJMZKA (1990)
Toyota Mr2
Production
Jan 1990
-
Jun 1995
Engine
5SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )SW21..5F

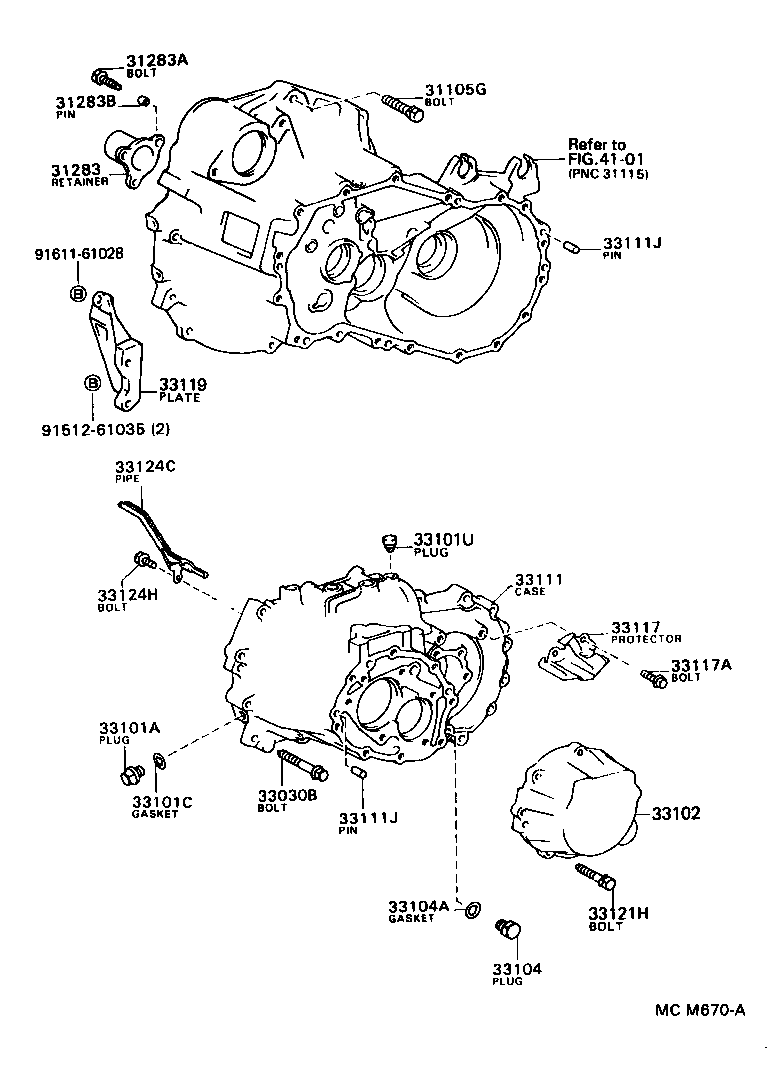

Click highlighted areas on diagram
S54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 91651-41022 |
SW2#..5F *10-1.25PX22-22 |
1 | ||
| 90105-08040 |
SW2#..5F *8-1.25PX18-15 |
1 | ||
| 90105-10077 |
SW2#..5F *10-1.25PX43-26 |
1 | ||
| 90119-12168 |
SW2#..5F *12-1.25PX55-30 |
3 | ||
| 91651-41022 |
SW21..5F *10-1.25PX22-22 |
1 | ||
| 31283 - RETAINER, CLUTCH RELEASE BEARING HUB | ||||
| 31283-32010 |
SW21..5F |
1 | ||
| 31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90105-06023 |
SW21..5F |
3 | ||
| 31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90253-08002 |
SW21..5F |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08042 |
SW21..5F *8-1.25PX45-27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
SW2#..5F |
1 | ||
| 90341-18006 |
SW21..5F |
1 | ||
| 90341-18002 |
SW21..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
SW2#..5F |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
SW21..5F |
1 | ||
| 90930-03080 |
SW21..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-33020 |
SW21..5F |
1 | ||
| 33102-32012 |
SW21..5F |
1 | ||
| 33102-32011 |
SW21..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
SW2#..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
SW2#..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-17050 |
SW21..5F |
1 | ||
| 33111-17030 |
SW21..5F |
1 | ||
| 33111-17070 |
SW21..5F |
1 | ||
| 33111-17071 |
SW21..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
SW2#..5F L=23,OD=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
SW2#..5F L=23,OD=8 |
6 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-32011 |
SW21..5F |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
SW2#..5F |
2 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-32020 |
SW21..5F |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90105-08089 |
SW21..5F |
8 | ||
| 90105-08273 |
SW21..5F |
8 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-32012 |
SW21..5F |
1 | ||
| 33124-33010 |
SW21..5F |
1 | ||
| 33124-32011 |
SW21..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91651-60618 |
SW21..5F |
1 | ||
| Common parts | ||||
| 91512-61035 | ||||
| 91611-61028 | ||||
| Linked diagrams | ||||
| 4101 | ||||
