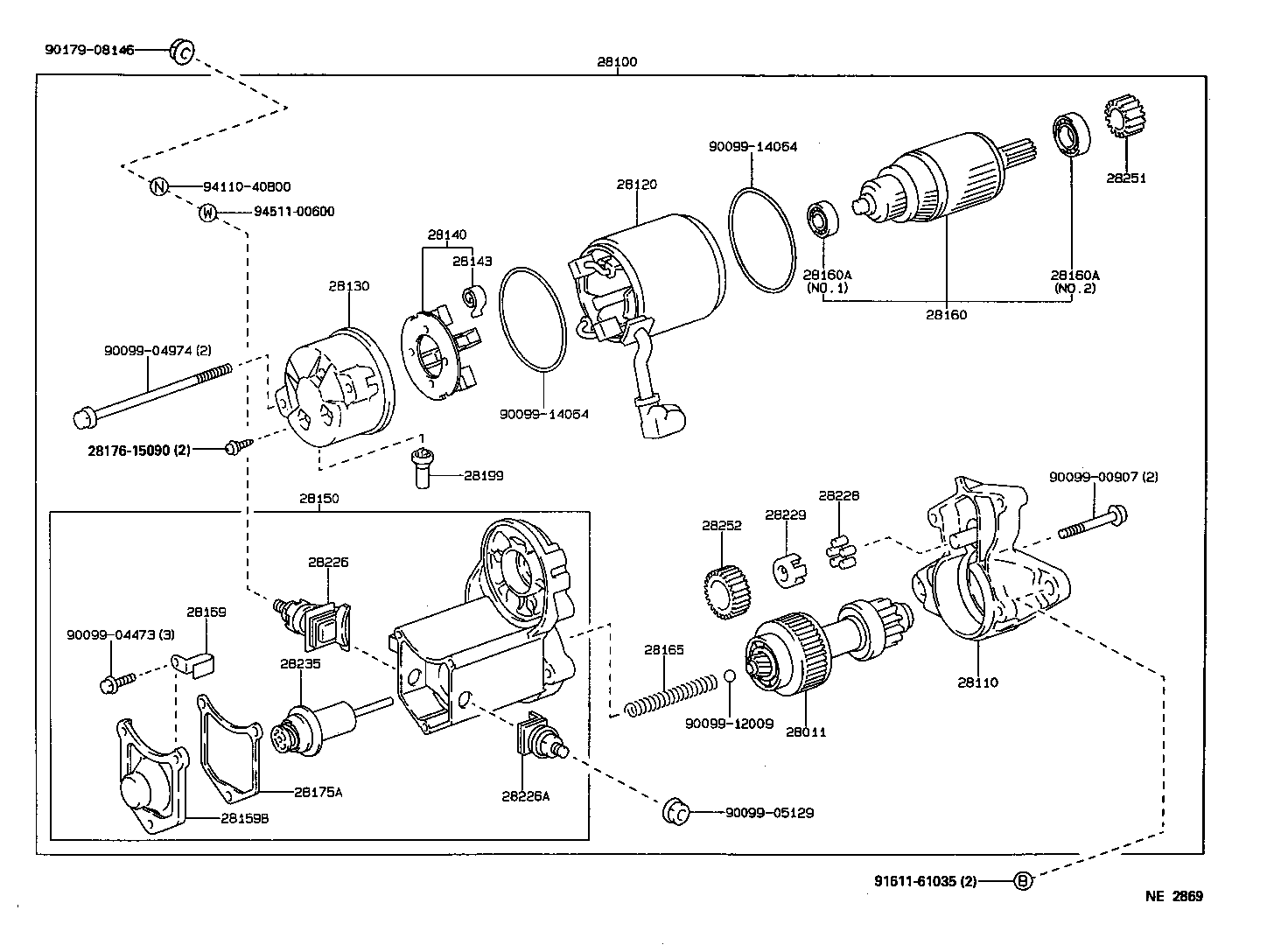

SW21L-AJMZKA (1990)
Toyota Mr2
(9001- )
12V 1.4KW,1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74011 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28011-74070 |
5SFE..SW21..USA |
1 | ||
| 28011-74060 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-74050 |
5SFE..SW21..USA 12V 1.6KW |
1 | ||
| 28100-74070 |
5SFE..SW21..USA 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-74070 |
5SFE..SW21..USA |
1 | ||
| 28110-62020 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-65030 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28120-74070 |
5SFE..SW21..USA |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-74070 |
5SFE..SW21..USA |
1 | ||
| 28130-62020 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74020 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28140-74070 |
5SFE..SW21..USA |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3SGTE,5SFE..SW2# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74070 |
5SFE..SW21..USA |
1 | ||
| 28150-74020 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28159-55050 |
5SFE..SW21..USA |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-65031 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28160-74070 |
5SFE..SW21..USA |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
5SFE..SW21..USA NO.1 |
1 | ||
| 90099-65030 |
5SFE..SW21..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10197 |
5SFE..SW21..USA NO.2 |
1 | ||
| 90099-10144 |
5SFE..SW21..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10143 |
5SFE..SW21..USA COLD SPEC,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
5SFE..SW21..USA NO.1 |
1 | ||
| 90099-65030 |
5SFE..SW21..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10197 |
5SFE..SW21..USA NO.2 |
1 | ||
| 90099-10144 |
5SFE..SW21..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10143 |
5SFE..SW21..USA COLD SPEC,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-74070 |
5SFE..SW21..USA |
1 | ||
| 28165-74010 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28169-55050 |
5SFE..SW21..USA |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28175-55050 |
5SFE..SW21..USA |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-74070 |
5SFE..SW21..USA |
1 | ||
| 28199-15090 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28199-74110 |
5SFE..SW21..USA |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-16130 |
5SFE..SW21..USA |
1 | ||
| 28226-72080 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28226-16130 |
5SFE..SW21..USA |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-74070 |
5SFE..SW21..USA |
1 | ||
| 28226-72010 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28226-74070 |
5SFE..SW21..USA |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
3SGTE,5SFE..SW2# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28229-74070 |
5SFE..SW21..USA |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-74130 |
5SFE..SW21..USA |
1 | ||
| 28235-74060 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
5SFE..SW21..USA |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-74070 |
5SFE..SW21..USA |
1 | ||
| 28254-54070 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08146 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||

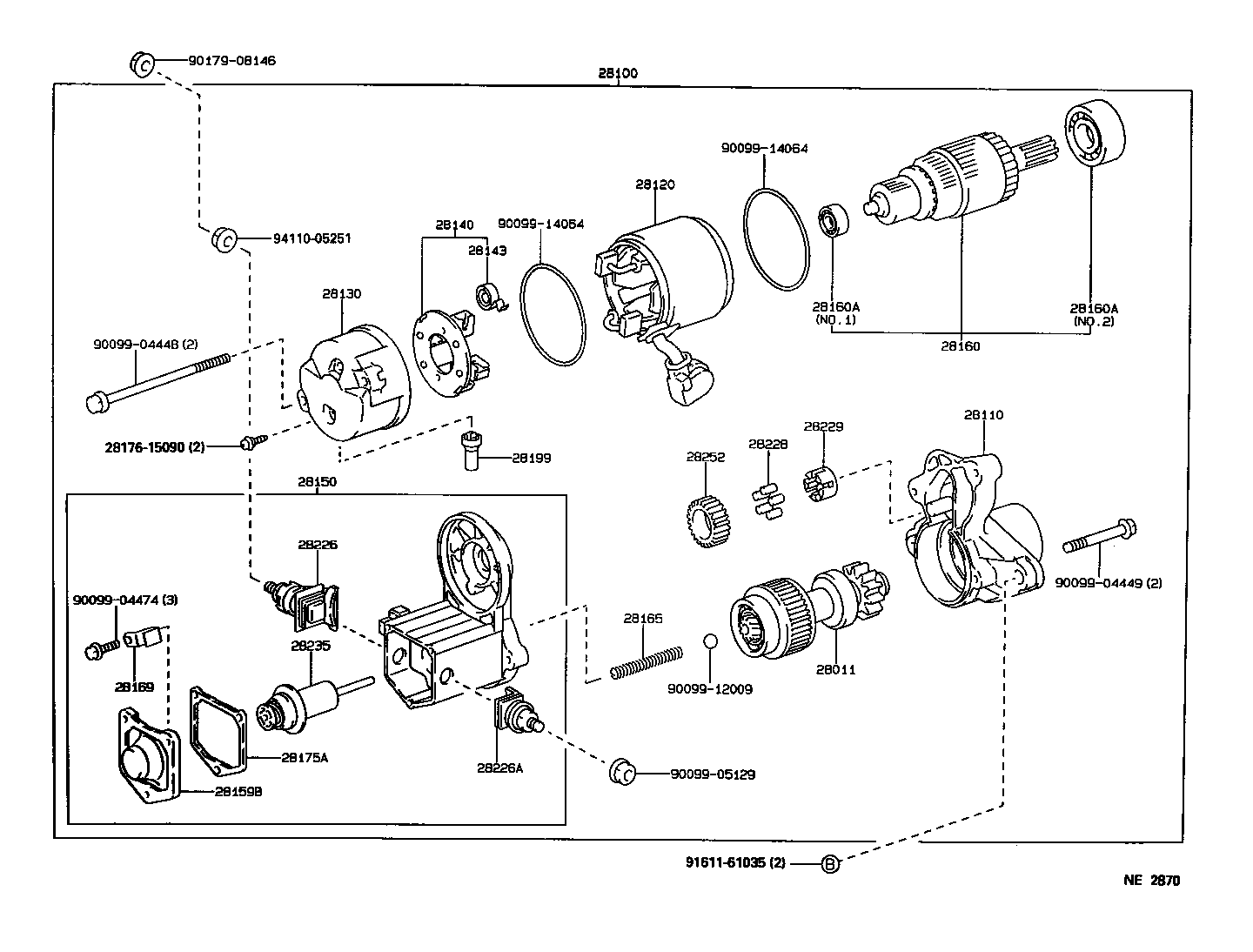

(9001- )5SFE
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74011 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28011-74070 |
5SFE..SW21..USA |
1 | ||
| 28011-74060 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-74050 |
5SFE..SW21..USA 12V 1.6KW |
1 | ||
| 28100-74070 |
5SFE..SW21..USA 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-74070 |
5SFE..SW21..USA |
1 | ||
| 28110-62020 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-65030 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28120-74070 |
5SFE..SW21..USA |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-74070 |
5SFE..SW21..USA |
1 | ||
| 28130-62020 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74020 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28140-74070 |
5SFE..SW21..USA |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3SGTE,5SFE..SW2# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74070 |
5SFE..SW21..USA |
1 | ||
| 28150-74020 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28159-55050 |
5SFE..SW21..USA |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-65031 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28160-74070 |
5SFE..SW21..USA |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
5SFE..SW21..USA NO.1 |
1 | ||
| 90099-65030 |
5SFE..SW21..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10197 |
5SFE..SW21..USA NO.2 |
1 | ||
| 90099-10144 |
5SFE..SW21..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10143 |
5SFE..SW21..USA COLD SPEC,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
5SFE..SW21..USA NO.1 |
1 | ||
| 90099-65030 |
5SFE..SW21..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10197 |
5SFE..SW21..USA NO.2 |
1 | ||
| 90099-10144 |
5SFE..SW21..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10143 |
5SFE..SW21..USA COLD SPEC,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-74070 |
5SFE..SW21..USA |
1 | ||
| 28165-74010 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28169-55050 |
5SFE..SW21..USA |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28175-55050 |
5SFE..SW21..USA |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-74070 |
5SFE..SW21..USA |
1 | ||
| 28199-15090 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28199-74110 |
5SFE..SW21..USA |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-16130 |
5SFE..SW21..USA |
1 | ||
| 28226-72080 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28226-16130 |
5SFE..SW21..USA |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-74070 |
5SFE..SW21..USA |
1 | ||
| 28226-72010 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28226-74070 |
5SFE..SW21..USA |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
3SGTE,5SFE..SW2# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28229-74070 |
5SFE..SW21..USA |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-74130 |
5SFE..SW21..USA |
1 | ||
| 28235-74060 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-74070 |
5SFE..SW21..USA |
1 | ||
| 28254-54070 |
5SFE..SW21..USA COLD SPEC |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08146 | ||||
| 91611-61035 | ||||
| 94110-05251 | ||||
