SW21L-AJMZKA (1990)

Toyota Mr2

Production Jan 1990 - Jun 1995
Engine 5SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )5SFE

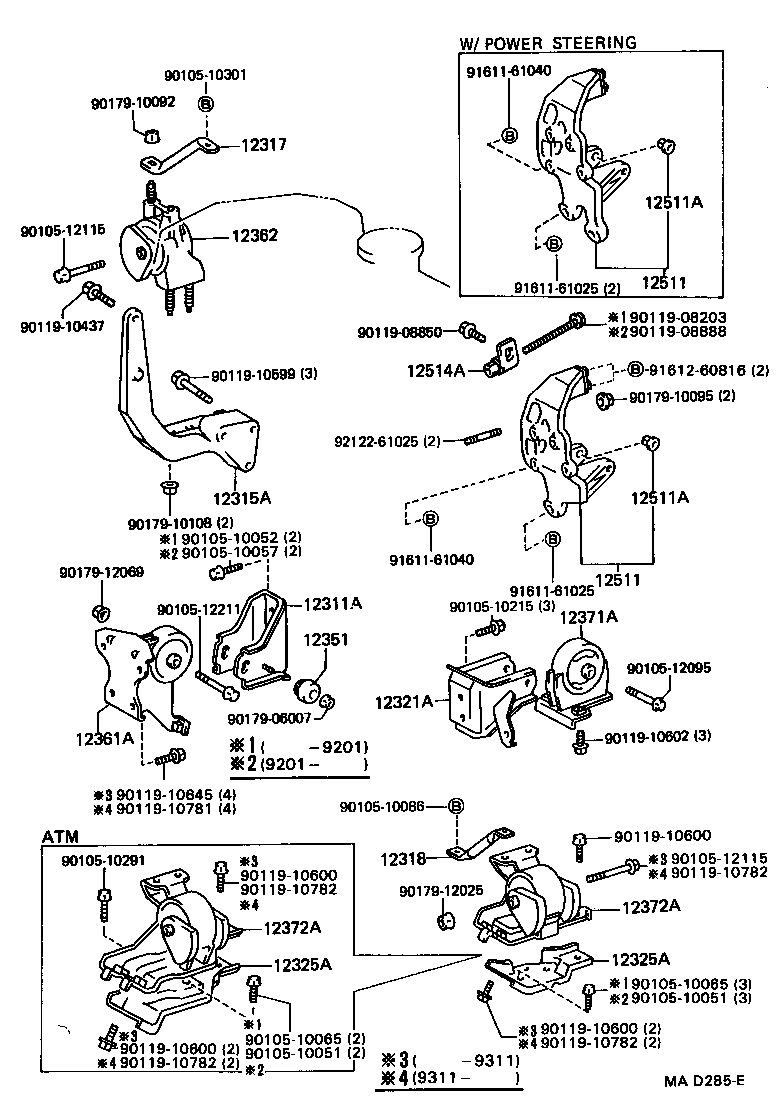

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12321A 12325A 12325A 12351 12361A 12362 12371A 12372A 12372A 12511 12511 12511A 12511A 12514A 9010510051 9010510051 9010510052 9010510057 9010510065 9010510065 9010510086 9010510215 9010510291 9010510301 9010512095 9010512115 9010512115 9010512211 9011908203 9011908850 9011908888 9011910437 9011910599 9011910600 9011910600 9011910600 9011910600 9011910602 9011910645 9011910781 9011910782 9011910782 9011910782 9011910782 9017906007 9017910092 9017910095 9017910108 9017912025 9017912069 9161161025 9161161025 9161161040 9161161040 9161260816 9212261025
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74090

3SGTE,5SFE..SW2#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74080

5SFE..SW21

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-74100

5SFE..SW21

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-74120

5SFE..SW21..5F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74190

5SFE..SW21..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74120

5SFE..SW21..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74120

5SFE..SW21..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-74060

3SGTE,5SFE..SW2#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74160

5SFE..SW21..5F

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74170

5SFE..SW21..5F

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74230

5SFE..SW21

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74260

5SFE..SW21..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74260

5SFE..SW21..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-74020

3SGTE,5SFE..SW2#..USA

W(POWER STEERING)

 1
12501-74030

5SFE..SW21

 1
12501-74050

3SGTE,5SFE..SW2#..USA

W(POWER STEERING)

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-74020

3SGTE,5SFE..SW2#..USA

W(POWER STEERING)

 1
12501-74030

5SFE..SW21

 1
12501-74050

3SGTE,5SFE..SW2#..USA

W(POWER STEERING)

 1
12511A - BUSH, ALTERNATOR BRACKET
27351-70010

3SGTE,5SFE..SW2#

 1
12511A - BUSH, ALTERNATOR BRACKET
27351-70010

3SGTE,5SFE..SW2#

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-74020

3SGTE,5SFE..SW2#

 1
Common parts
90105-10051
90105-10052
90105-10057
90105-10065
90105-10086
90105-10215
90105-10291
90105-10301
90105-12095
90105-12115
90105-12211
90119-08203
90119-08850
90119-08888
90119-10437
90119-10599
90119-10600
90119-10602
90119-10645
90119-10781
90119-10782
90179-06007
90179-10092
90179-10095
90179-10108
90179-12025
90179-12069
91611-61025
91611-61040
91612-60816
92122-61025
