SW21L-ACPZKA (1990)
Toyota Mr2
Production
Jan 1990
-
Jun 1995
Engine
5SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

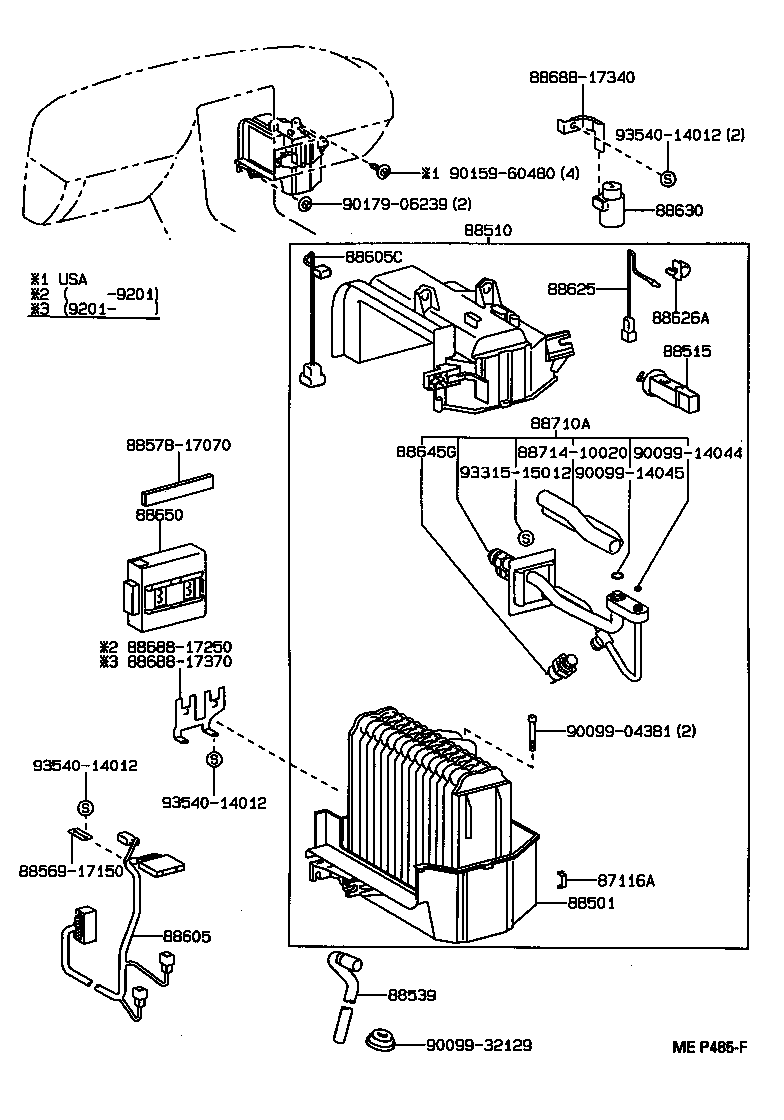

(9001-9311)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
SW2# |
2 | ||
| 87116-14010 |
SW2# |
4 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-17030 |
SW2# |
1 | ||
| 88501-17061 |
SW2# |
1 | ||
| 88501-17060 |
SW2# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-17250 |
SW2# |
1 | ||
| 88510-17141 |
SW2# |
1 | ||
| 88510-17140 |
SW2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14060 |
SW2# |
1 | ||
| 88515-14062 |
SW2#..USA |
1 | ||
| 88515-14062 |
SW21..CP |
1 | ||
| 88515-14061 |
SW2# |
1 | ||
| 88515-20100 |
SW2# |
1 | ||
| 88515-14062 |
SW2#..USA |
1 | ||
| 88515-33010 |
SW2# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-17040 |
SW2#..USA |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-17271 |
SW2# |
1 | ||
| 88605-17340 |
SW2# |
1 | ||
| 88605-17270 |
SW2# |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-17330 |
SW2# |
1 | ||
| 88648-17030 |
SW2# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-24050 |
SW2# |
1 | ||
| 88625-20350 |
SW2# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
SW2# |
1 | ||
| 88626-28010 |
SW2# |
2 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95702 |
SW2# |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30281 |
SW2#..USA |
1 | ||
| 88645-30281 |
SW2# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-17120 |
SW2# |
1 | ||
| 88650-17130 |
SW2# |
1 | ||
| 88650-17130 |
SW2# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-17110 |
SW2# |
1 | ||
| 88710-17070 |
SW2# |
1 | ||
| Common parts | ||||
| 88569-17150 | ||||
| 88578-17070 | ||||
| 88688-17250 | ||||
| 88688-17340 | ||||
| 88688-17370 | ||||
| 88714-10020 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-32129 | ||||
| 90159-60480 | ||||
| 90179-06239 | ||||
| 93315-15012 | ||||
| 93540-14012 | ||||

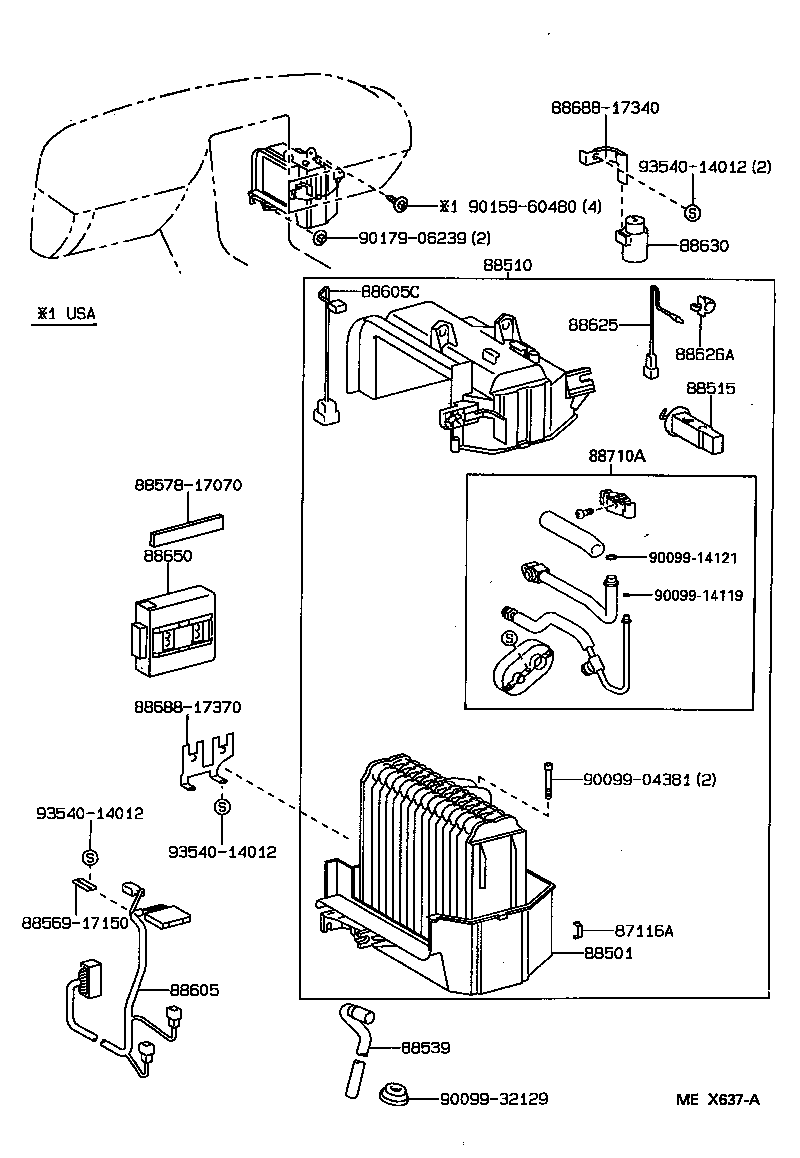

(9311- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
SW2# |
2 | ||
| 87116-14010 |
SW2# |
4 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-17030 |
SW2# |
1 | ||
| 88501-17061 |
SW2# |
1 | ||
| 88501-17060 |
SW2# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-17250 |
SW2# |
1 | ||
| 88510-17141 |
SW2# |
1 | ||
| 88510-17140 |
SW2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14060 |
SW2# |
1 | ||
| 88515-14062 |
SW2#..USA |
1 | ||
| 88515-14062 |
SW21..CP |
1 | ||
| 88515-14061 |
SW2# |
1 | ||
| 88515-20100 |
SW2# |
1 | ||
| 88515-14062 |
SW2#..USA |
1 | ||
| 88515-33010 |
SW2# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-17040 |
SW2#..USA |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-17271 |
SW2# |
1 | ||
| 88605-17340 |
SW2# |
1 | ||
| 88605-17270 |
SW2# |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-17330 |
SW2# |
1 | ||
| 88648-17030 |
SW2# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-24050 |
SW2# |
1 | ||
| 88625-20350 |
SW2# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
SW2# |
1 | ||
| 88626-28010 |
SW2# |
2 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95702 |
SW2# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-17120 |
SW2# |
1 | ||
| 88650-17130 |
SW2# |
1 | ||
| 88650-17130 |
SW2# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-17110 |
SW2# |
1 | ||
| 88710-17070 |
SW2# |
1 | ||
| Common parts | ||||
| 88569-17150 | ||||
| 88578-17070 | ||||
| 88688-17340 | ||||
| 88688-17370 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90099-32129 | ||||
| 90159-60480 | ||||
| 90179-06239 | ||||
| 93540-14012 | ||||
