SW21L-ACPZKA (1990)

Toyota Mr2

Production Jan 1990 - Jun 1995
Engine 5SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9311)

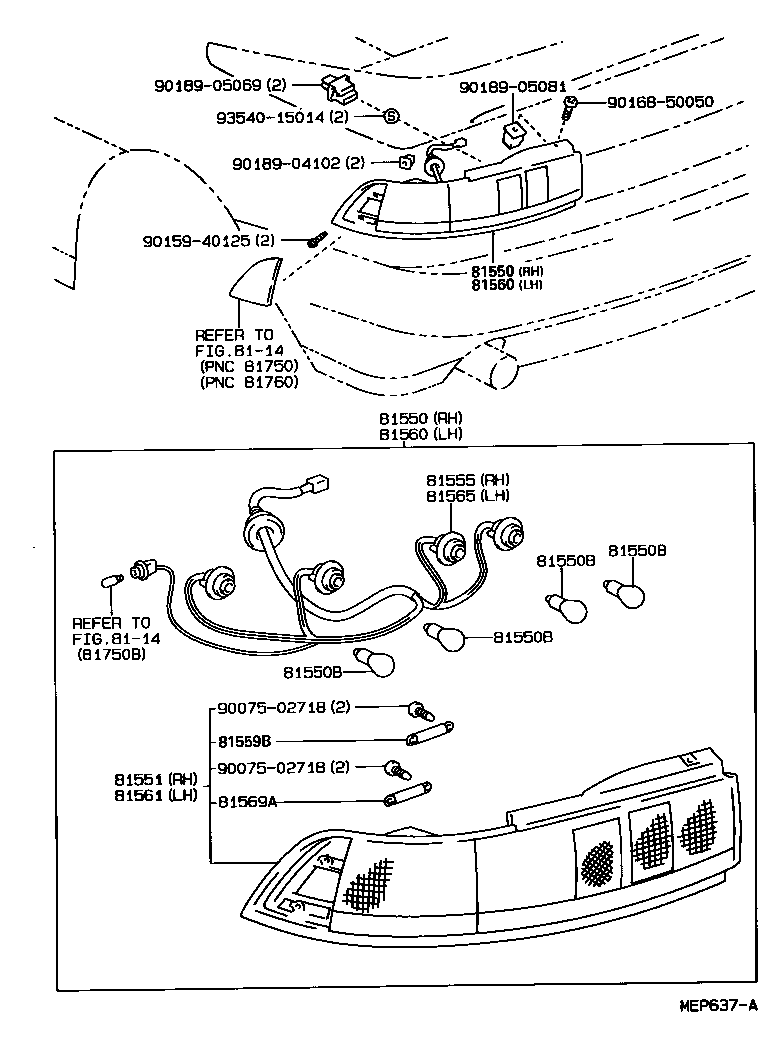

Click highlighted areas on diagram

diagram 8114 8114 81550 81550 81550B 81550B 81550B 81550B 81551 81555 81559B 81560 81560 81561 81565 81569A 9007502718 9007502718 9015940125 9016850050 9018904102 9018905069 9018905081 9354015014
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-17110

SW2#

 1
81550-17070

SW2#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-17110

SW2#

 1
81550-17070

SW2#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

SW2#

12V 27/8W

 4
99132-11270

SW2#

12V 27W

 4
99132-21270

SW2#

12V 27/8W

 2
90981-11020

SW2#

12V 3.8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

SW2#

12V 27/8W

 4
99132-11270

SW2#

12V 27W

 4
99132-21270

SW2#

12V 27/8W

 2
90981-11020

SW2#

12V 3.8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

SW2#

12V 27/8W

 4
99132-11270

SW2#

12V 27W

 4
99132-21270

SW2#

12V 27/8W

 2
90981-11020

SW2#

12V 3.8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

SW2#

12V 27/8W

 4
99132-11270

SW2#

12V 27W

 4
99132-21270

SW2#

12V 27/8W

 2
90981-11020

SW2#

12V 3.8W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-17070

SW2#

 1
81551-17060

SW2#

 1
81551-17100

SW2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-17070

SW2#

 1
81555-17110

SW2#

 1
81559B - BRACKET, REAR COMBINATION LAMP, RH
81559-17060

SW2#

 2
90904-62001

SW2#

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-17110

SW2#

 1
81560-17150

SW2#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-17110

SW2#

 1
81560-17150

SW2#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-17100

SW2#

 1
81561-17140

SW2#

 1
81561-17110

SW2#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-17070

SW2#

 1
81555-17110

SW2#

 1
81569A - BRACKET, REAR COMBINATION LAMP, LH
90904-62001

SW2#

 2
81559-17060

SW2#

 2
Common parts
90075-02718
90159-40125
90168-50050
90189-04102
90189-05069
90189-05081
93540-15014
Linked diagrams
8114

(9311- )

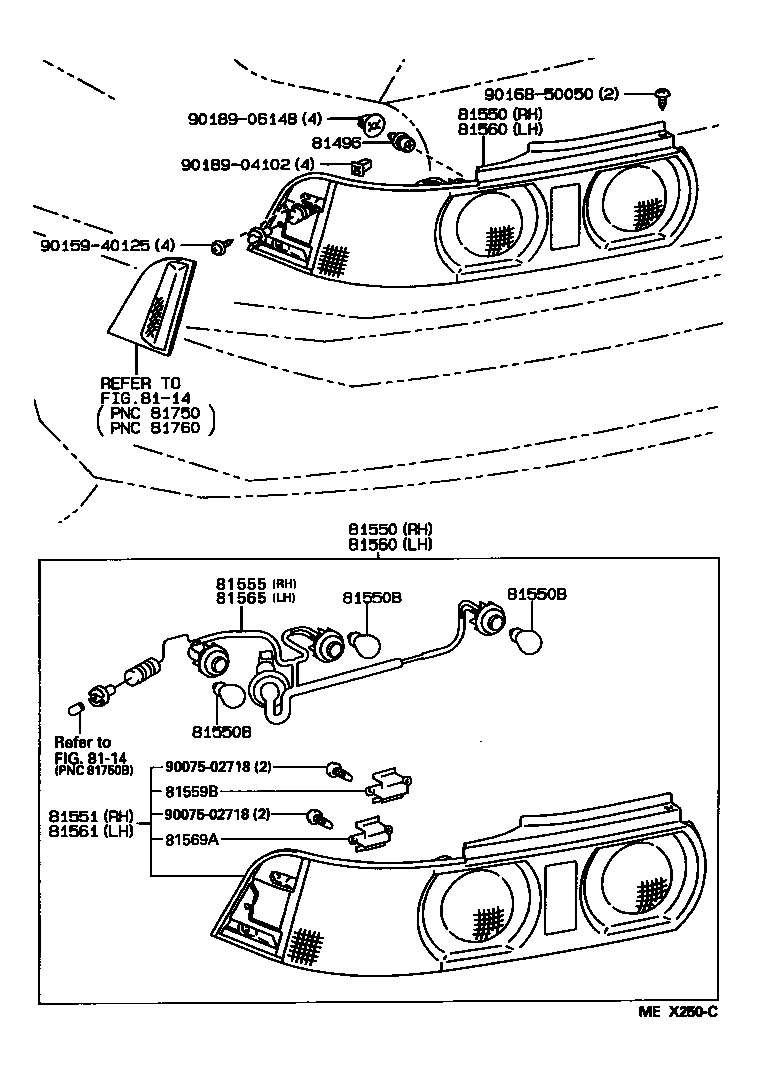

Click highlighted areas on diagram

diagram 8114 8114 81496 81550 81550 81550B 81550B 81550B 81551 81555 81559B 81560 81560 81561 81565 81569A 9007502718 9007502718 9015940125 9016850050 9018904102 9018906148
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-20010

SW2#

 4
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-17110

SW2#

 1
81550-17070

SW2#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-17110

SW2#

 1
81550-17070

SW2#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

SW2#

12V 27/8W

 4
99132-11270

SW2#

12V 27W

 4
99132-21270

SW2#

12V 27/8W

 2
90981-11020

SW2#

12V 3.8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

SW2#

12V 27/8W

 4
99132-11270

SW2#

12V 27W

 4
99132-21270

SW2#

12V 27/8W

 2
90981-11020

SW2#

12V 3.8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

SW2#

12V 27/8W

 4
99132-11270

SW2#

12V 27W

 4
99132-21270

SW2#

12V 27/8W

 2
90981-11020

SW2#

12V 3.8W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-17070

SW2#

 1
81551-17060

SW2#

 1
81551-17100

SW2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-17070

SW2#

 1
81555-17110

SW2#

 1
81559B - BRACKET, REAR COMBINATION LAMP, RH
81559-17060

SW2#

 2
90904-62001

SW2#

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-17110

SW2#

 1
81560-17150

SW2#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-17110

SW2#

 1
81560-17150

SW2#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-17100

SW2#

 1
81561-17140

SW2#

 1
81561-17110

SW2#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-17070

SW2#

 1
81555-17110

SW2#

 1
81569A - BRACKET, REAR COMBINATION LAMP, LH
90904-62001

SW2#

 2
81559-17060

SW2#

 2
Common parts
90075-02718
90159-40125
90168-50050
90189-04102
90189-06148
Linked diagrams
8114
