SW21L-ACPZKA (1990)

Toyota Mr2

Production Jan 1990 - Jun 1995
Engine 5SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

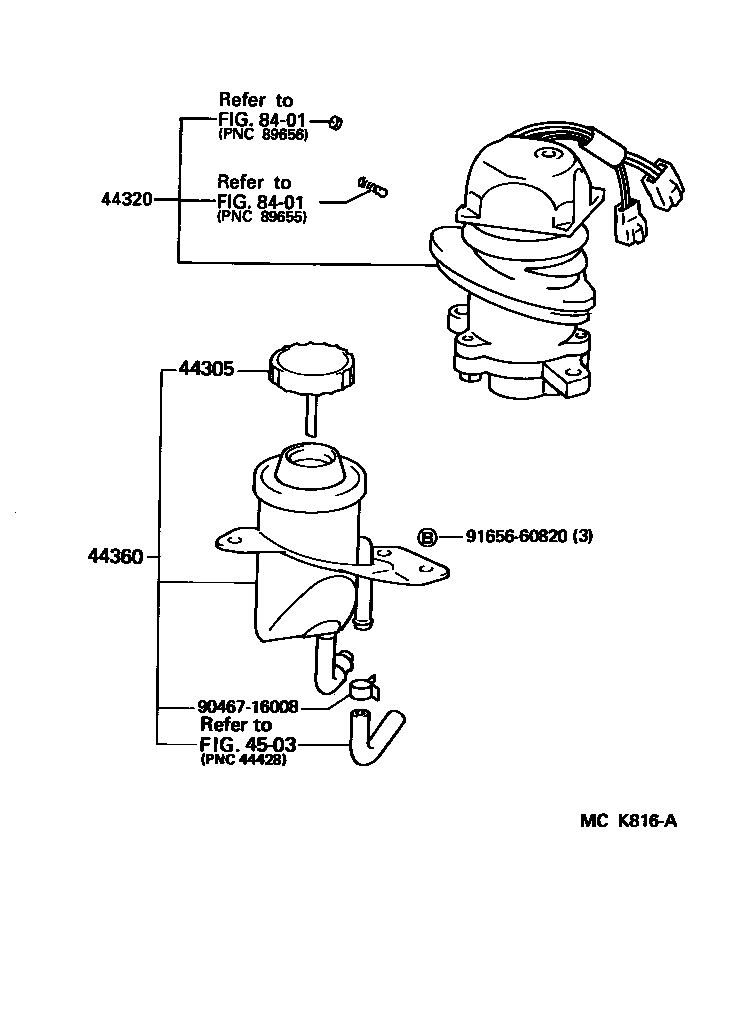

Click highlighted areas on diagram

diagram 44305 44320 44360 4503 8401 8401 9046716008 9165660820
Part # Description Qty Price
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-17010

SW2#..USA

 1
44320 - PUMP ASSY, VANE
44310-17011

SW2#

 1
44310-17010

SW2#..USA

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-17020

SW2#..USA

 1
Common parts
90467-16008
91656-60820
Linked diagrams
4503
8401
