SW21L-ACPZKA (1990)

Toyota Mr2

Production Jan 1990 - Jun 1995
Engine 5SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

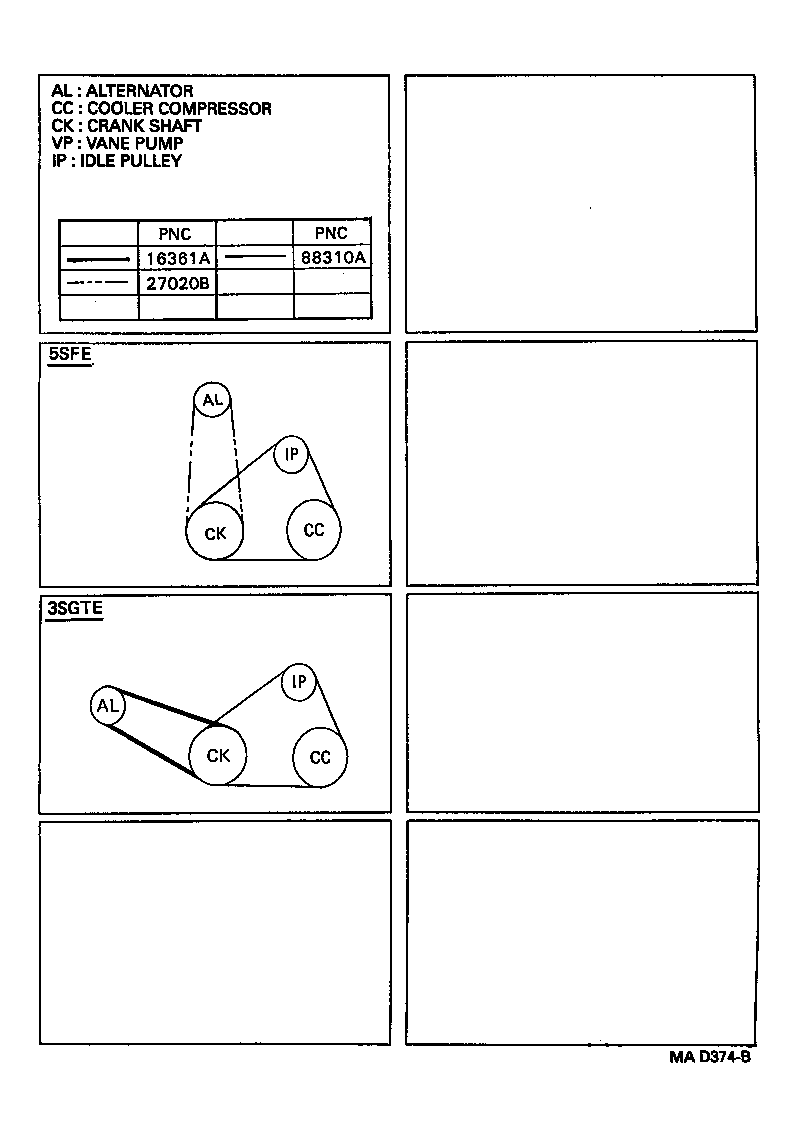

Click highlighted areas on diagram

diagram 16361A 27020B 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
90916-02265

5SFE..SW21

 1
99364-80830

5SFE..SW21

W(POWER STEERING)

 1
99364-80820

5SFE..SW21

 1
90916-02267

5SFE..SW21..USA

W(POWER STEERING)

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-00890

SW21..USA

MITSUBOSHI

 1
99364-50890

SW21..USA

BANDO

 1
99364-70890

SW21..USA

BANDO

 1
99364-20890

SW21..USA

L=890,MISTUBOSHI

 1
99364-20890

SW21..USA

L=890,MITSUBOSHI

 1
