SW20L-AJMZZK (1990)

Toyota Mr2

Production Jan 1990 - Nov 1993
Engine 3SGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

diagram 88301 88301 88302 88302 88320 88320 88330A 88330A 88403 88403 88410 88410 9009907087 9009907087 9009907114 9009907114 9009907127 9009910133 9411040800 9411040800 9451100800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-17010

SW2#

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-17010

SW2#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-17060

SW2#

 1
88411-17060

SW2#..CND

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-17060

SW2#

 1
88411-17060

SW2#..CND

 1
88320 - COMPRESSOR ASSY, COOLER
88320-17091

SW2#

 1
88320-17090

SW2#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-17091

SW2#

 1
88320-17090

SW2#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

SW2#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

SW2#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

SW2#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

SW2#

 1
88410 - CLUTCH ASSY, MAGNET
88410-17060

SW2#

 1
88410-17070

SW2#

 1
88410 - CLUTCH ASSY, MAGNET
88410-17060

SW2#

 1
88410-17070

SW2#

 1
Common parts
90099-07087
90099-07114
90099-07127
90099-10133
94110-40800
94511-00800

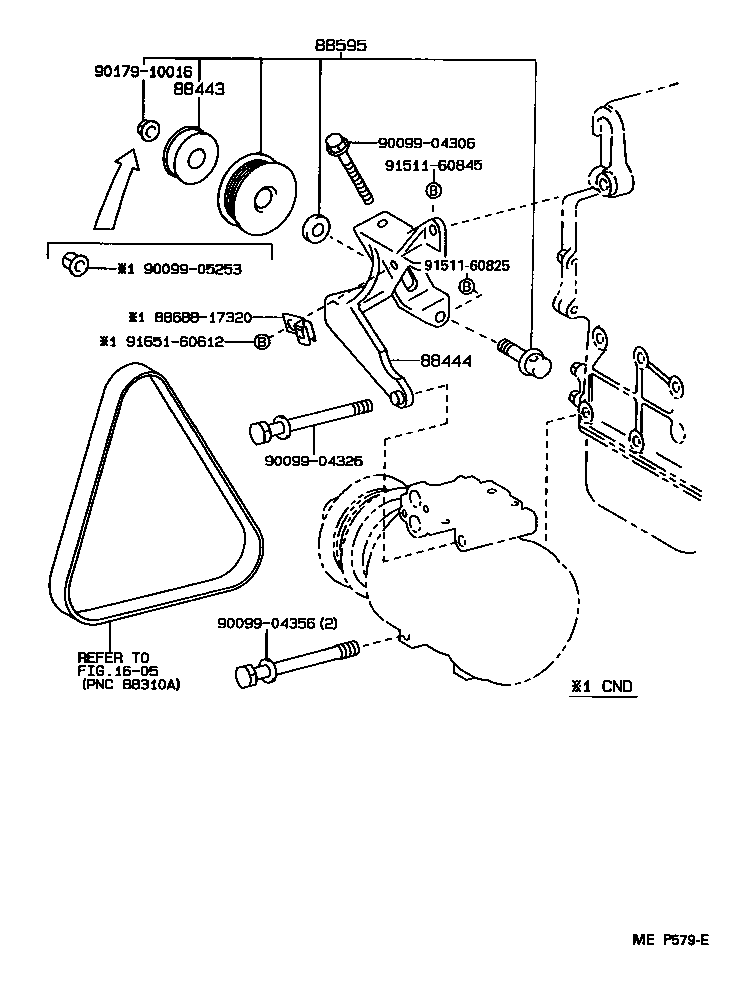

ILLUST NO. 2 OF 3(9001- )SW20

Click highlighted areas on diagram

diagram 1605 88443 88444 88595 8868817320 9009904306 9009904326 9009904356 9009905253 9017910016 9151160825 9151160845 9165160612
Part # Description Qty Price
88443 - COLLAR, IDLE PULLEY
88443-36010

SW2#

 1
88444 - BRACKET, IDLE PULLEY
88444-17020

SW20

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-26100

SW2#..CND

 1
Common parts
88688-17320
90099-04306
90099-04326
90099-04356
90099-05253
90179-10016
91511-60825
91511-60845
91651-60612
Linked diagrams
1605

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

diagram 88321 88321 88321A 88321A 88335 88343B 88343B 88344C 88344C 88356 88360A 88360C 88371A 88376 88376 9009904255 9009904968 9009908058 9009908058 9009913024
Part # Description Qty Price
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32030

SW2#

REAR

 1
88321-14011

SW2#

FRONT

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32030

SW2#

REAR

 1
88321-14011

SW2#

FRONT

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

SW2#

FRONT

 1
88342-14010

SW2#

REAR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

SW2#

FRONT

 1
88342-14010

SW2#

REAR

 1
88335 - GASKET KIT, OVERHAUL
88335-12030

SW2#

 1
88343B - REED, SUCTION VALVE
88343-14011

SW2#

 2
88343B - REED, SUCTION VALVE
88343-14011

SW2#

 2
88344C - REED, DISCHARGE VALVE
88344-14011

SW2#

 2
88344C - REED, DISCHARGE VALVE
88344-14011

SW2#

 2
88356 - LABEL, COMPRESSOR CAUTION
88356-12010

SW2#

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

SW2#

 1
88360C - SEAL ASSY, SHAFT
88360-30290

SW2#

 1
88360-40010

SW2#

 1
88371A - VALVE, SUCTION
88371-17100

SW2#

 1
88376 - CAP, BLIND
88376-17020

SW2#

SUCTION

 1
88376-22020

SW2#

DISCHARGE

 1
88376 - CAP, BLIND
88376-17020

SW2#

SUCTION

 1
88376-22020

SW2#

DISCHARGE

 1
Common parts
90099-04255
90099-04968
90099-08058
90099-13024
