SW20L-AJMZZA (1990)

Toyota Mr2

Production Jan 1990 - Jun 1995
Engine 3SGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )SW20

Click highlighted areas on diagram

E153

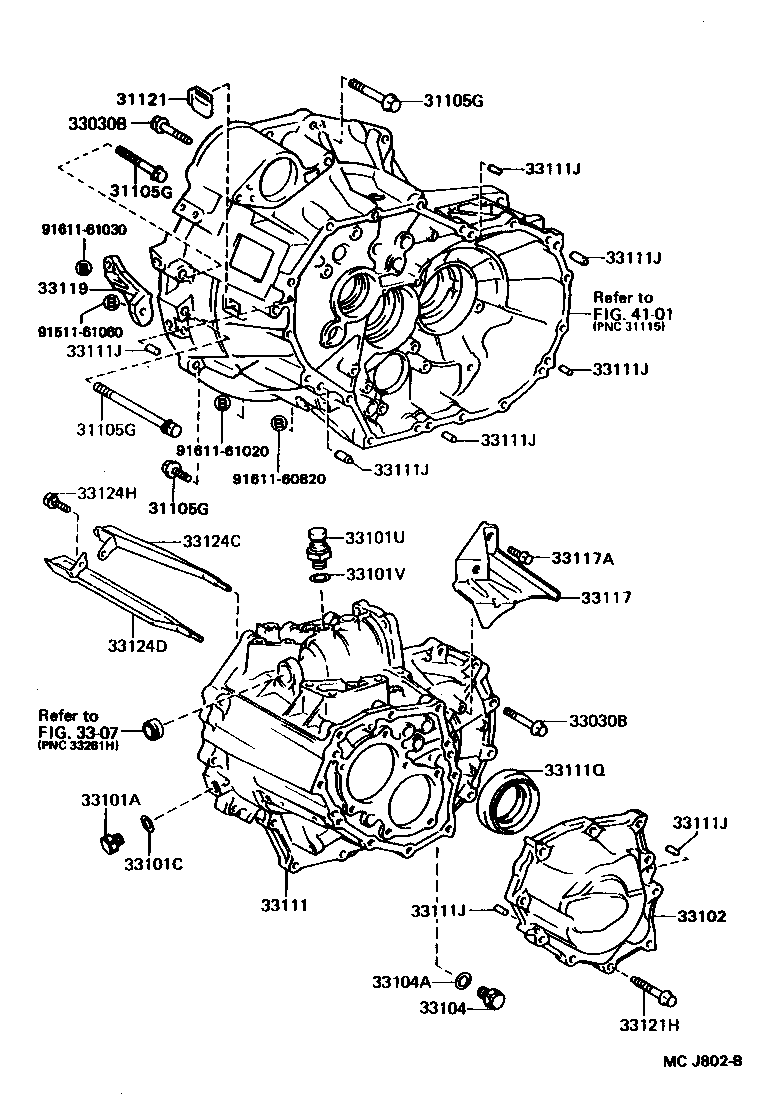

diagram 31105G 31105G 31105G 31105G 31121 33030B 33030B 3307 33101A 33101C 33101U 33101V 33102 33104 33104A 33111 33111J 33111J 33111J 33111J 33111J 33111J 33111J 33111J 33111Q 33117 33117A 33119 33121H 33124C 33124D 33124H 4101 9151161060 9161160820 9161161020 9161161030
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91651-41022

SW2#..5F

*10-1.25PX22-22

 1
91651-41022

SW20

*10-1.25PX22-22

 2
90105-08040

SW2#..5F

*8-1.25PX18-15

 1
90105-10077

SW2#..5F

*10-1.25PX43-26

 1
90119-12168

SW2#..5F

*12-1.25PX55-30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91651-41022

SW2#..5F

*10-1.25PX22-22

 1
91651-41022

SW20

*10-1.25PX22-22

 2
90105-08040

SW2#..5F

*8-1.25PX18-15

 1
90105-10077

SW2#..5F

*10-1.25PX43-26

 1
90119-12168

SW2#..5F

*12-1.25PX55-30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91651-41022

SW2#..5F

*10-1.25PX22-22

 1
91651-41022

SW20

*10-1.25PX22-22

 2
90105-08040

SW2#..5F

*8-1.25PX18-15

 1
90105-10077

SW2#..5F

*10-1.25PX43-26

 1
90119-12168

SW2#..5F

*12-1.25PX55-30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91651-41022

SW2#..5F

*10-1.25PX22-22

 1
91651-41022

SW20

*10-1.25PX22-22

 2
90105-08040

SW2#..5F

*8-1.25PX18-15

 1
90105-10077

SW2#..5F

*10-1.25PX43-26

 1
90119-12168

SW2#..5F

*12-1.25PX55-30

 3
31121 - COVER, CLUTCH HOUSING, NO.1
31121-20010

SW20

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126

SW20

*8-1.25PX45-27.5

 17
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126

SW20

*8-1.25PX45-27.5

 17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

SW2#..5F

 1
90341-18033

SW20

 1
90341-18033

SW20

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

SW2#..5F

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03111

SW20

 1
33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)
90430-18008

SW20

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-33010

SW20

 1
33102-20040

SW20

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

SW2#..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

SW2#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-17030

SW20

 1
33101-17040

SW20

 1
33101-17031

SW20

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW2#..5F

L=23,OD=8

 6
90250-12005

SW20

L=24,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW2#..5F

L=23,OD=8

 6
90250-12005

SW20

L=24,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW2#..5F

L=23,OD=8

 6
90250-12005

SW20

L=24,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW2#..5F

L=23,OD=8

 6
90250-12005

SW20

L=24,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW2#..5F

L=23,OD=8

 6
90250-12005

SW20

L=24,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW2#..5F

L=23,OD=8

 6
90250-12005

SW20

L=24,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW2#..5F

L=23,OD=8

 6
90250-12005

SW20

L=24,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SW2#..5F

L=23,OD=8

 6
90250-12005

SW20

L=24,OD=12

 2
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-50010

SW20

 1
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-20020

SW20

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

SW2#..5F

 2
33119 - PLATE, STIFFENER, LH(MTM)
33119-17021

SW20

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90105-08273

SW20

 10
90105-08089

SW20

 10
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20020

SW20

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-20030

SW20

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
90119-08648

SW20

 1
Common parts
91511-61060
91611-60820
91611-61020
91611-61030
Linked diagrams
3307
4101
