SW20L-AJMZZA (1990)
Toyota Mr2
Production
Jan 1990
-
Jun 1995
Engine
3SGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )3SGTE

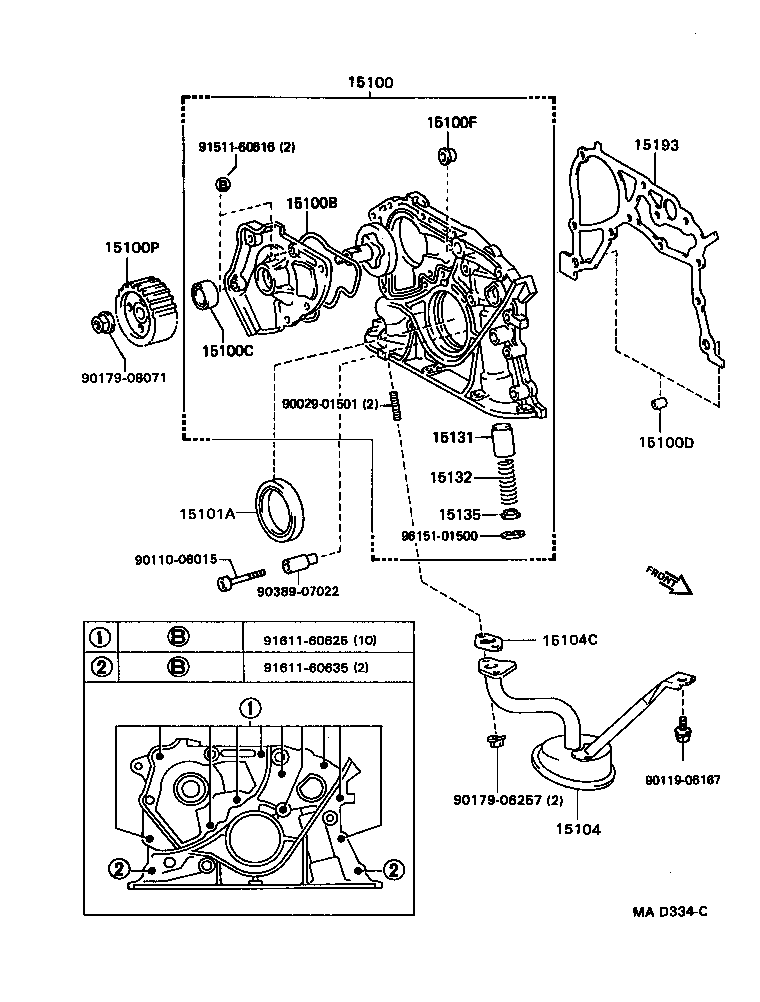

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-88381 |
3SGTE..SW20 |
1 | ||
| 15100-88382 |
3SGTE..SW20 |
1 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 15188-63010 |
3SGTE,5SFE..SW2# |
1 | ||
| 15188-88382 |
3SGTE..SW20 |
1 | ||
| 15188-88382 |
3SGTE,5SFE..SW2# |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 15165-70010 |
3SGTE,5SFE..SW2# |
1 | ||
| 15165-88382 |
3SGTE..SW20 |
1 | ||
| 15100D - PIN(FOR OIL PUMP SET) | ||||
| 90253-09001 |
3SGTE,5SFE..SW2# |
2 | ||
| 15100F - BUSH (FOR OIL PUMP) | ||||
| 90029-38302 |
3SGTE,5SFE..SW2# |
1 | ||
| 15100P - PULLEY, OIL PUMP DRIVE SHAFT | ||||
| 13524-88360 |
3SGTE..SW20 |
1 | ||
| 15101A - SEAL(FOR CRANKSHAFT) | ||||
| 90311-42026 |
3SGTE,5SFE..SW2# |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-88380 |
3SGTE,5SFE..SW2# |
1 | ||
| 15104C - GASKET(FOR OIL STRAINER) | ||||
| 23293-88360 |
3SGTE..SW20 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-63010 |
3SGTE..SW20 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-88380 |
3SGTE..SW20 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-15010 |
3SGTE,5SFE..SW2# |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15197-63021 |
3SGTE,5SFE..SW2# |
1 | ||
| 15197-63021 |
3SGTE..SW20 |
1 | ||
| Common parts | ||||
| 90029-01501 | ||||
| 90110-06015 | ||||
| 90119-06167 | ||||
| 90179-06257 | ||||
| 90179-08071 | ||||
| 90389-07022 | ||||
| 91511-60616 | ||||
| 91611-60625 | ||||
| 91611-60635 | ||||
| 96151-01500 | ||||
