SW20L-AJMZZA (1990)
Toyota Mr2
Production
Jan 1990
-
Jun 1995
Engine
3SGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )3SGTE

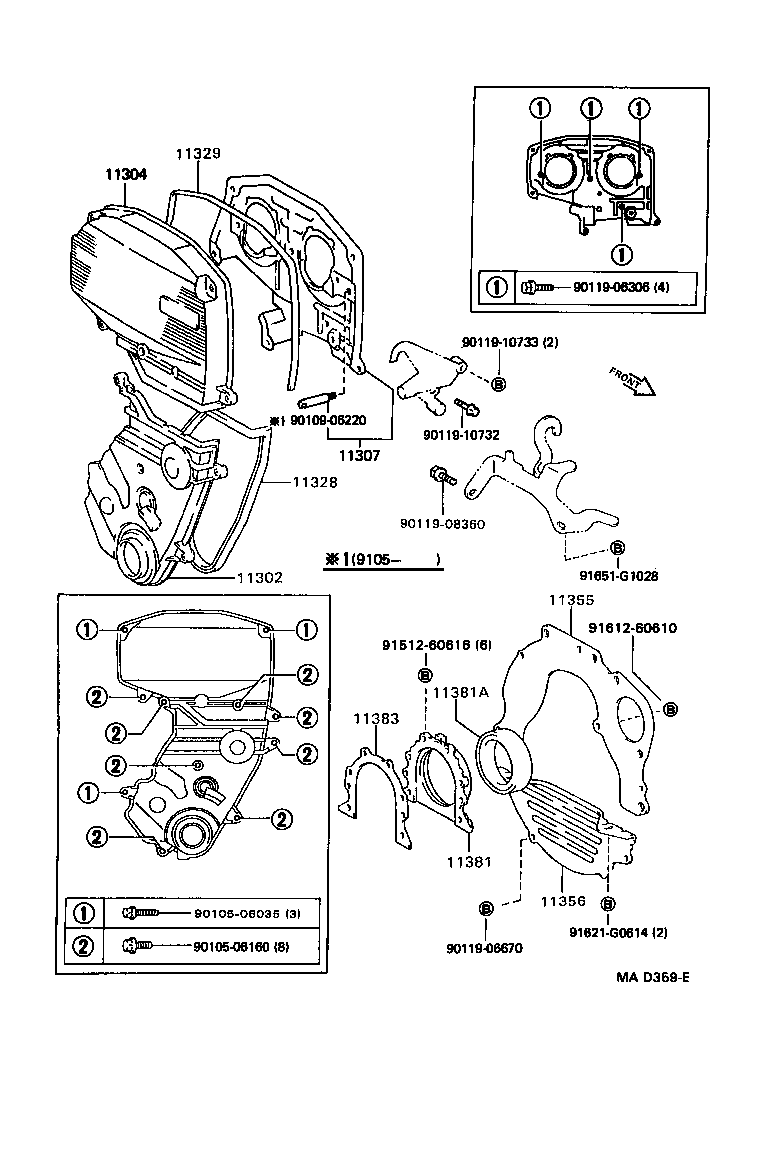

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-88380 |
3SGTE..SW20 |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11322-88380 |
3SGTE..SW20 |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11323-88381 |
3SGTE..SW20 |
1 | ||
| 11323-88383 |
3SGTE..SW20 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-88380 |
3SGTE..SW20 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-88380 |
3SGTE..SW20 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-74030 |
3SGTE,5SFE..SW2# |
1 | ||
| 11356 - PLATE, REAR END, NO.2 | ||||
| 11356-74030 |
3SGTE,5SFE..SW2# |
1 | ||
| 11356-63031 |
3SGTE,5SFE..SW2# |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-63012 |
3SGTE,5SFE..SW2# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-89002 |
3SGTE..SW20 |
1 | ||
| 90311-89001 |
3SGTE..SW20 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-88381 |
3SGTE..SW20 |
1 | ||
| Common parts | ||||
| 90105-06035 | ||||
| 90105-06160 | ||||
| 90109-06220 | ||||
| 90119-06306 | ||||
| 90119-06670 | ||||
| 90119-08360 | ||||
| 90119-10732 | ||||
| 90119-10733 | ||||
| 91512-60616 | ||||
| 91612-60610 | ||||
| 91621-G0614 | ||||
| 91651-G1028 | ||||
