AW11L-WCPQFA (1985)
Toyota Mr2
Production
Aug 1985
-
Dec 1989
Engine
4AGELC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

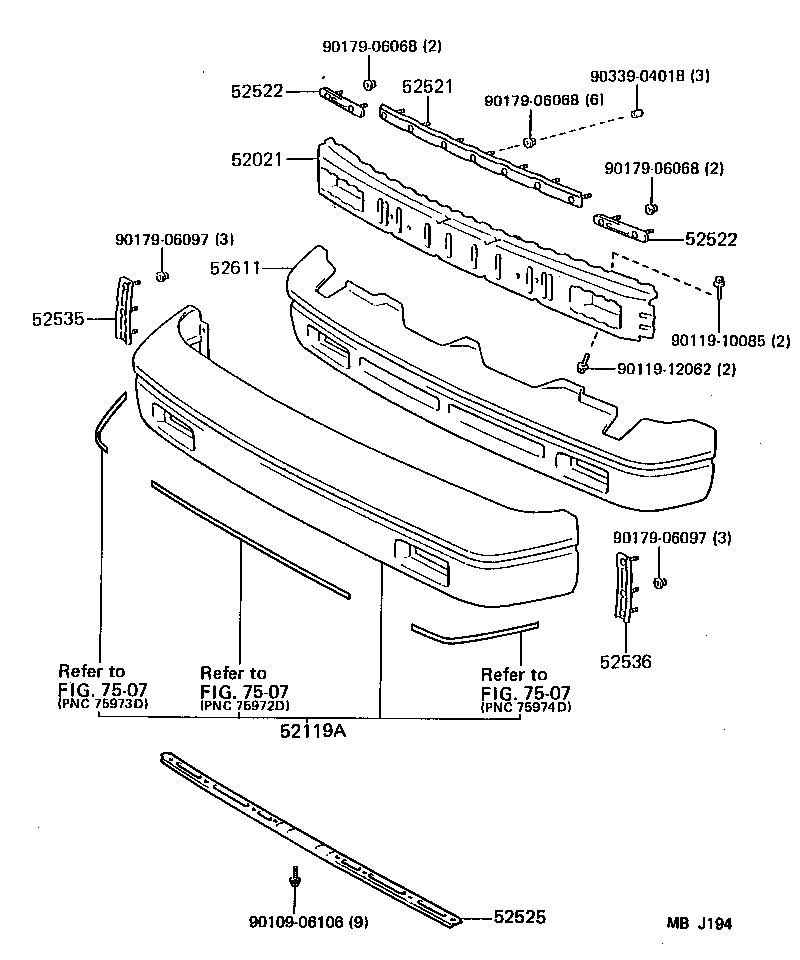

(8508-8608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-17020 |
AW11 |
1 | ||
| 52021-17021 |
AW11 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-17900 |
AW11 |
1 | ||
| 52119-17901 |
AW11 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-17010 |
AW11 |
1 | ||
| 52521-17011 |
AW11 |
1 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-17010 |
AW11 |
2 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-17010 |
AW11 |
2 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52506-17011 |
AW11 |
1 | ||
| 52506-17010 |
AW11 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-17010 |
AW11 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-17010 |
AW11 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-17010 |
AW11 |
1 | ||
| 52611-17011 |
AW11 |
1 | ||
| Common parts | ||||
| 90109-06106 | ||||
| 90119-10085 | ||||
| 90119-12062 | ||||
| 90179-06068 | ||||
| 90179-06097 | ||||
| 90339-04018 | ||||
| Linked diagrams | ||||
| 7507 | ||||

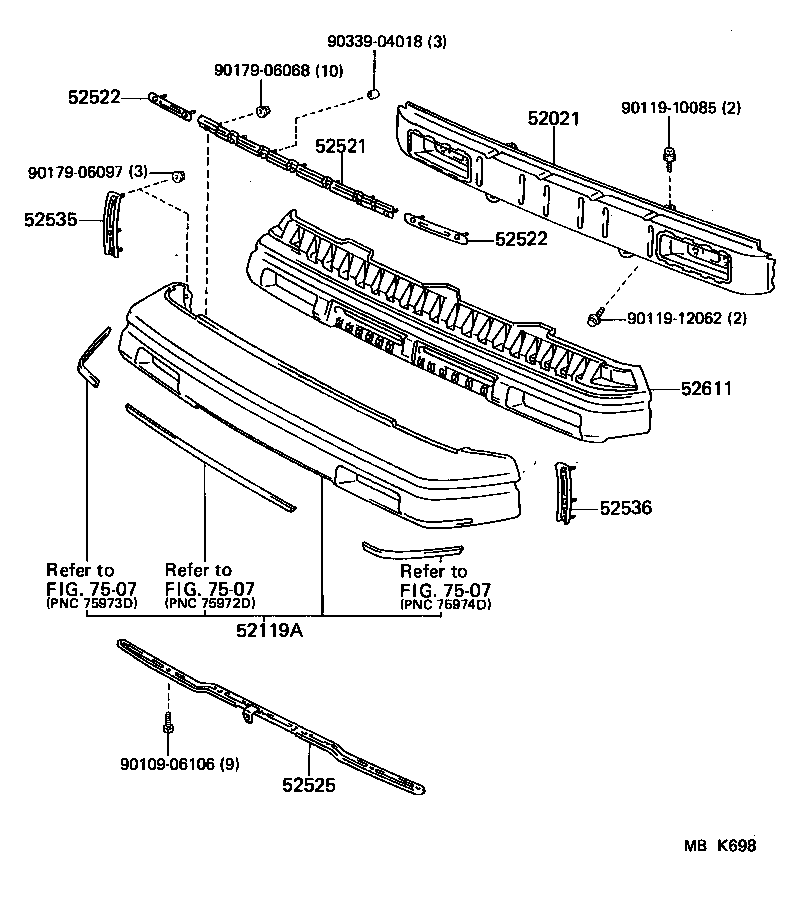

(8608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-17020 |
AW11 |
1 | ||
| 52021-17021 |
AW11 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-17900 |
AW11 |
1 | ||
| 52119-17901 |
AW11 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-17010 |
AW11 |
1 | ||
| 52521-17011 |
AW11 |
1 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-17010 |
AW11 |
2 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-17010 |
AW11 |
2 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52506-17011 |
AW11 |
1 | ||
| 52506-17010 |
AW11 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-17010 |
AW11 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-17010 |
AW11 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-17010 |
AW11 |
1 | ||
| 52611-17011 |
AW11 |
1 | ||
| Common parts | ||||
| 90109-06106 | ||||
| 90119-10085 | ||||
| 90119-12062 | ||||
| 90179-06068 | ||||
| 90179-06097 | ||||
| 90339-04018 | ||||
| Linked diagrams | ||||
| 7507 | ||||
