AW11L-WCMQFK (1984)
Toyota Mr2
Production
Dec 1984
-
Aug 1988
Engine
4AGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

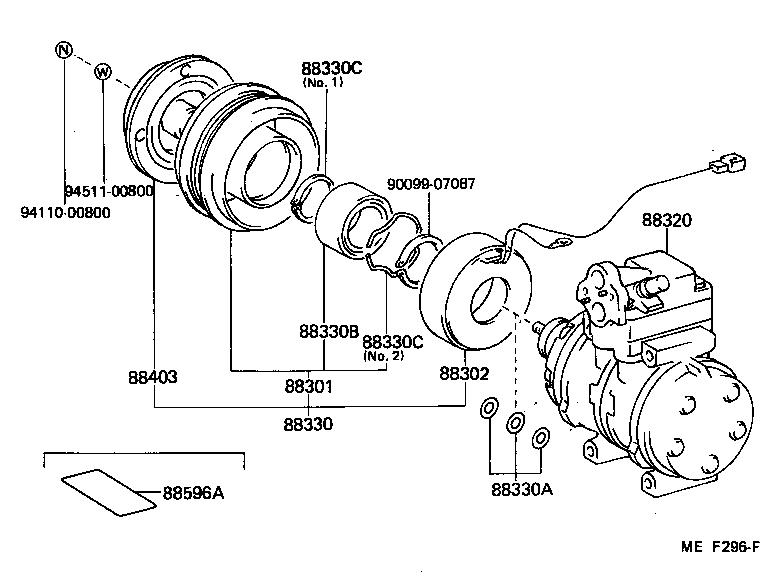

ILLUST NO. 1 OF 3(8412- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22050 |
AW11..GT |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-17010 |
AW11..GT |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-17030 |
AW11..CND W/STD AIR CONDITIONER |
1 | ||
| 88320-17010 |
AW11 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-17010 |
AW11..GT |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
AW11 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
AW11 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
AW11 NO.1 |
1 | ||
| 90099-07094 |
AW11..GT NO.2 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
AW11 NO.1 |
1 | ||
| 90099-07094 |
AW11..GT NO.2 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
AW11 |
1 | ||
| 88403-12030 |
AW11 |
1 | ||
| 88596A - PLATE, CAUTION | ||||
| 88356-12010 |
AW11 |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 94110-00800 | ||||
| 94511-00800 | ||||
ILLUST NO. 3 OF 3(8412- )GT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14041 |
AW11 |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14021 |
AW11 |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
AW11 |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13024 |
AW11 |
1 | ||
| 90099-13012 |
AW11..CND W/STD AIR CONDITIONER |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04968 |
AW11 |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 88329-17020 |
AW11..CND W/STD AIR CONDITIONER |
4 | ||
| 90099-04983 |
AW11..GT |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
AW11..GT RR |
1 | ||
| 88321-14011 |
AW11 FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
AW11..GT RR |
1 | ||
| 88321-14011 |
AW11 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
AW11 RR |
1 | ||
| 88341-14010 |
AW11 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
AW11 RR |
1 | ||
| 88341-14010 |
AW11 FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
AW11 |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
AW11 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
AW11 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
AW11 |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-17010 |
AW11 |
1 | ||
| 88371-17030 |
AW11..CND W/STD AIR CONDITIONER |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
AW11 |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
AW11 |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12050 |
AW11 |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
AW11 |
10 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12030 |
AW11..GT |
1 | ||
| 04881-10010 |
AW11..CND W/STD AIR CONDITIONER |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
AW11..CND W/STD AIR CONDITIONER |
1 | ||
| 88360-40010 |
AW11 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AW11 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
AW11 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-28020 |
AW11..GT..CND DISCHARGE |
1 | ||
| 88376-28010 |
AW11..GT..CND SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-28020 |
AW11..GT..CND DISCHARGE |
1 | ||
| 88376-28010 |
AW11..GT..CND SUCTION |
1 | ||

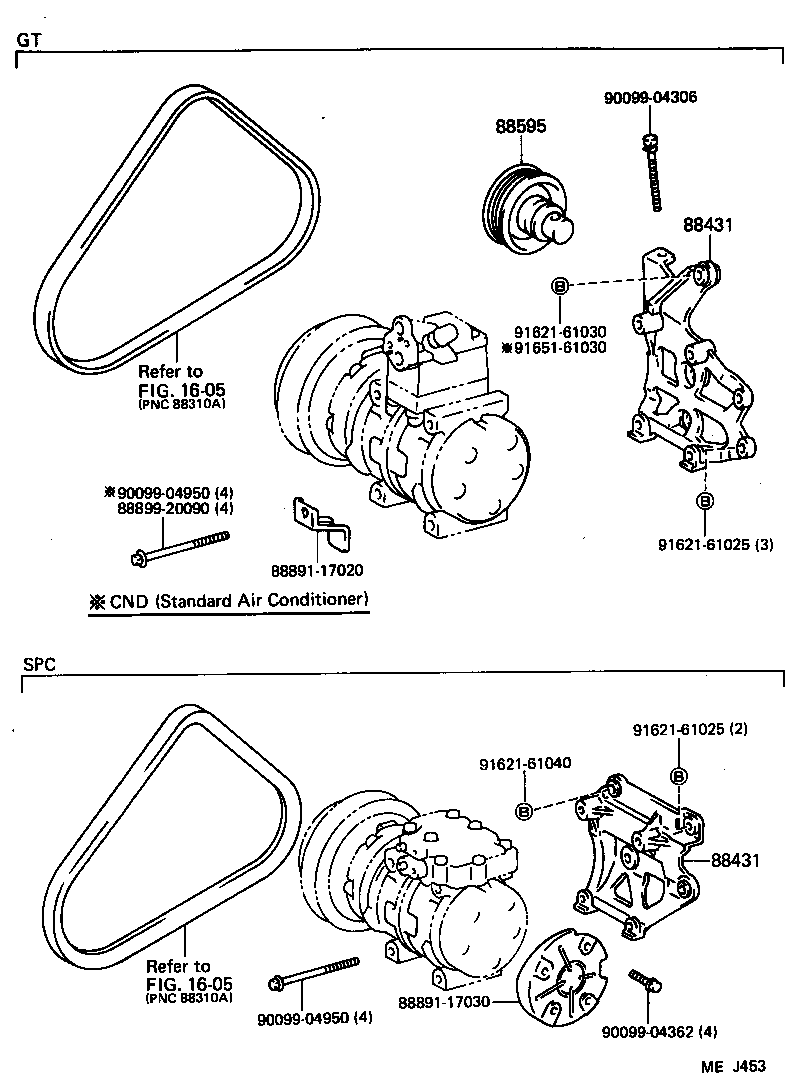

ILLUST NO. 2 OF 3(8412- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-17010 |
AW11..GT |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-17010 |
AW11..GT |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-17010 |
AW11 |
1 | ||
| 88440-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 88891-17020 | ||||
| 88891-17030 | ||||
| 88899-20090 | ||||
| 90099-04306 | ||||
| 90099-04362 | ||||
| 90099-04950 | ||||
| 91621-61025 | ||||
| 91621-61030 | ||||
| 91621-61040 | ||||
| 91651-61030 | ||||
| Linked diagrams | ||||
| 1605 | ||||
