AW11L-WCMQFK (1984)
Toyota Mr2
Production
Dec 1984
-
Aug 1988
Engine
4AGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

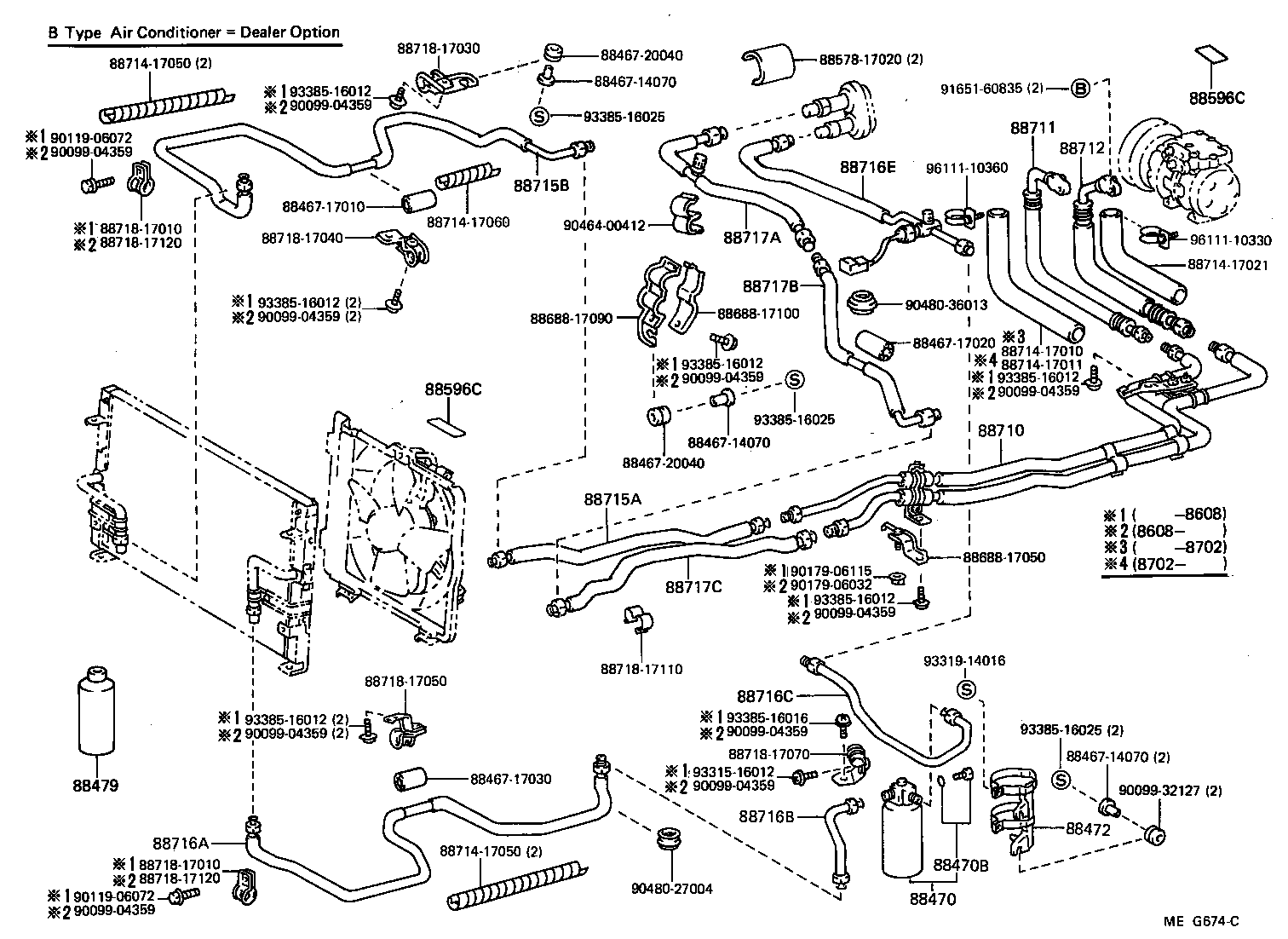

| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16010 |
AW11 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
AW11 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-17010 |
AW11 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AW11..CND 400G |
3 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88596-17010 |
AW11 |
2 | ||
| 88723-17010 |
AW11 |
2 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88596-17010 |
AW11 |
2 | ||
| 88723-17010 |
AW11 |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88720-17010 |
AW11..CND B TYPE |
1 | ||
| 88711-17010 |
AW11 A TYPE |
1 | ||
| 88711-17030 |
AW11..GT..CND B TYPE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-17010 |
AW11 A TYPE |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-17020 |
AW11 A TYPE |
1 | ||
| 88715-17070 |
AW11..CND B TYPE |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-17080 |
AW11 |
1 | ||
| 88715-17010 |
AW11 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-17010 |
AW11 |
1 | ||
| 88716-17080 |
AW11 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-17030 |
AW11 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-17040 |
AW11 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-17071 |
AW11 |
1 | ||
| 88716-17070 |
AW11 |
1 | ||
| 88716-17072 |
AW11 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-17040 |
AW11 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-17050 |
AW11 |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88467-17010 | ||||
| 88467-17020 | ||||
| 88467-17038 | ||||
| 88467-20040 | ||||
| 88578-17020 | ||||
| 88688-17050 | ||||
| 88688-17090 | ||||
| 88688-17100 | ||||
| 88714-17010 | ||||
| 88714-17011 | ||||
| 88714-17021 | ||||
| 88714-17050 | ||||
| 88714-17060 | ||||
| 88718-17010 | ||||
| 88718-17030 | ||||
| 88718-17040 | ||||
| 88718-17050 | ||||
| 88718-17070 | ||||
| 88718-17110 | ||||
| 88718-17120 | ||||
| 90099-04359 | ||||
| 90099-32127 | ||||
| 90119-06072 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90464-00412 | ||||
| 90480-27004 | ||||
| 90480-36013 | ||||
| 91651-60835 | ||||
| 93315-16012 | ||||
| 93319-14016 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 96111-10330 | ||||
| 96111-10360 | ||||
ILLUST NO. 1 OF 2(8412- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

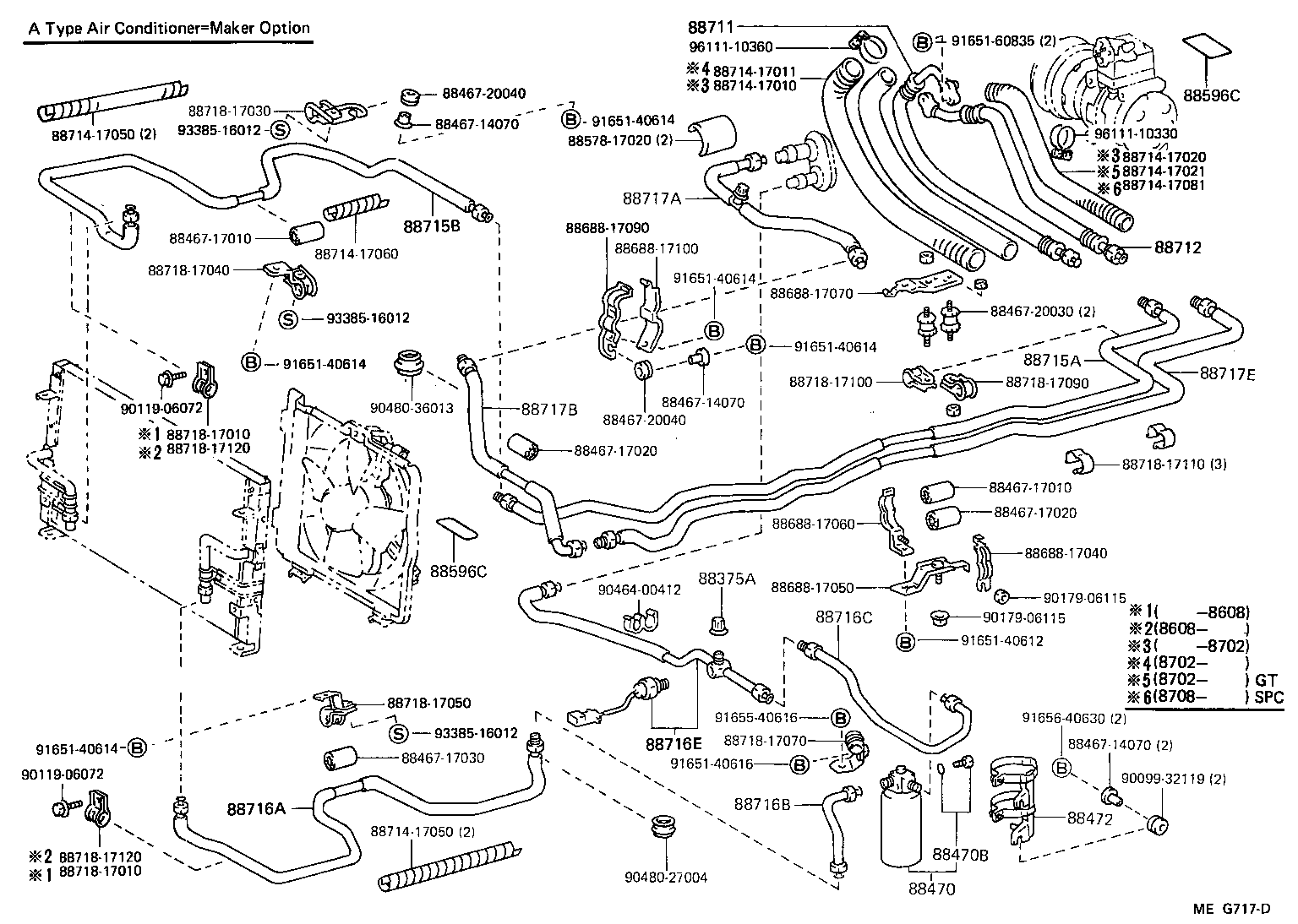

| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
AW11 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16010 |
AW11 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
AW11 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-17010 |
AW11 |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88596-17010 |
AW11 |
2 | ||
| 88723-17010 |
AW11 |
2 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88596-17010 |
AW11 |
2 | ||
| 88723-17010 |
AW11 |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88720-17010 |
AW11..CND B TYPE |
1 | ||
| 88711-17010 |
AW11 A TYPE |
1 | ||
| 88711-17030 |
AW11..GT..CND B TYPE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-17010 |
AW11 A TYPE |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-17020 |
AW11 A TYPE |
1 | ||
| 88715-17070 |
AW11..CND B TYPE |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-17080 |
AW11 |
1 | ||
| 88715-17010 |
AW11 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-17010 |
AW11 |
1 | ||
| 88716-17080 |
AW11 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-17030 |
AW11 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-17040 |
AW11 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-17071 |
AW11 |
1 | ||
| 88716-17070 |
AW11 |
1 | ||
| 88716-17072 |
AW11 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-17040 |
AW11 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-17050 |
AW11 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88467-17010 | ||||
| 88467-17020 | ||||
| 88467-17030 | ||||
| 88467-20030 | ||||
| 88467-20040 | ||||
| 88578-17020 | ||||
| 88688-17040 | ||||
| 88688-17050 | ||||
| 88688-17060 | ||||
| 88688-17070 | ||||
| 88688-17090 | ||||
| 88688-17100 | ||||
| 88714-17010 | ||||
| 88714-17011 | ||||
| 88714-17020 | ||||
| 88714-17021 | ||||
| 88714-17050 | ||||
| 88714-17060 | ||||
| 88714-17081 | ||||
| 88718-17010 | ||||
| 88718-17030 | ||||
| 88718-17040 | ||||
| 88718-17050 | ||||
| 88718-17070 | ||||
| 88718-17090 | ||||
| 88718-17100 | ||||
| 88718-17110 | ||||
| 88718-17120 | ||||
| 90099-32119 | ||||
| 90119-06072 | ||||
| 90179-06115 | ||||
| 90464-00412 | ||||
| 90480-27004 | ||||
| 90480-36013 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60835 | ||||
| 91655-40616 | ||||
| 91656-40630 | ||||
| 93385-16012 | ||||
| 96111-10330 | ||||
| 96111-10360 | ||||
ILLUST NO. 1 OF 2(8412-8608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

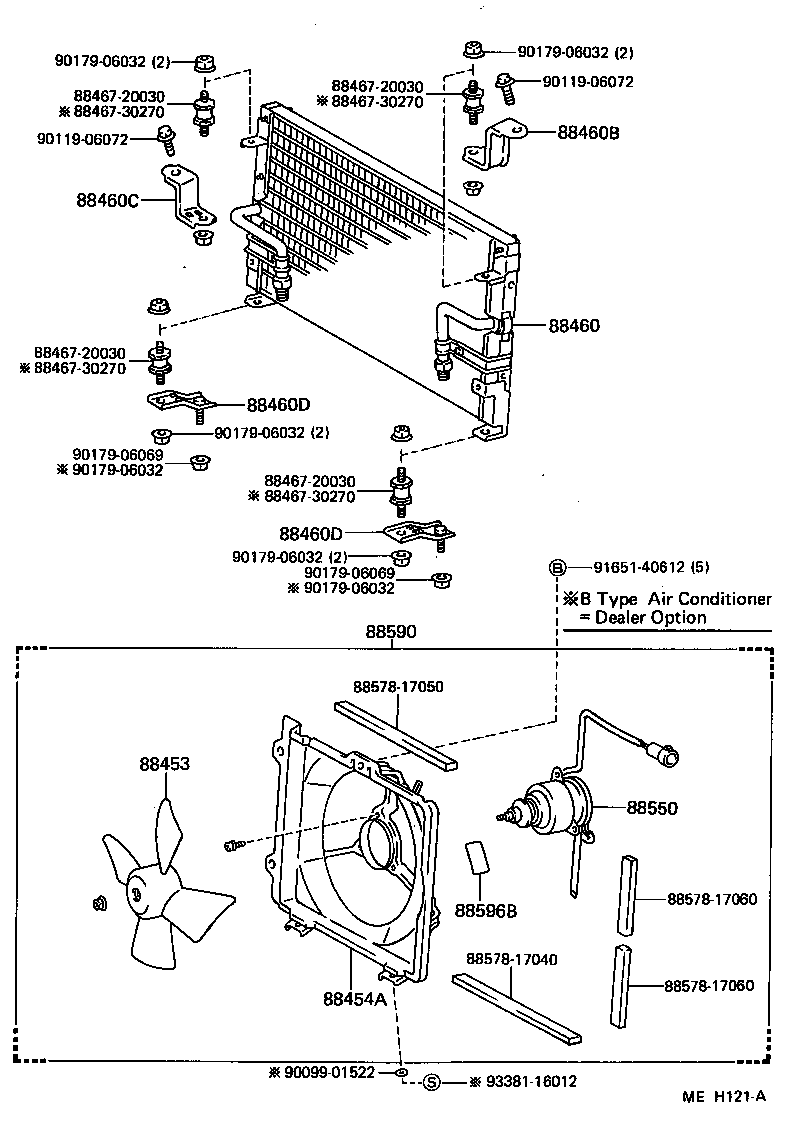

| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-16020 |
AW11..5F |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88590-17090 |
AW11..5F |
1 | ||
| 88590-17030 |
AW11..5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-17020 |
AW11 |
1 | ||
| 88460-17040 |
AW11 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-17190 |
AW11 |
1 | ||
| 88688-17020 |
AW11 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-17180 |
AW11 |
1 | ||
| 88688-17010 |
AW11 |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-17030 |
AW11 |
2 | ||
| 88688-17210 |
AW11 LH |
1 | ||
| 88688-17200 |
AW11 RH |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-17030 |
AW11 |
2 | ||
| 88688-17210 |
AW11 LH |
1 | ||
| 88688-17200 |
AW11 RH |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-16010 |
AW11..5F |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-17070 |
AW11..5F |
1 | ||
| 88590-17010 |
AW11..5F |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-14010 |
AW11 |
1 | ||
| Common parts | ||||
| 88467-20030 | ||||
| 88467-30270 | ||||
| 88578-17040 | ||||
| 88578-17050 | ||||
| 88578-17060 | ||||
| 90099-01522 | ||||
| 90119-06072 | ||||
| 90179-06032 | ||||
| 90179-06069 | ||||
| 91651-40612 | ||||
| 93381-16012 | ||||
ILLUST NO. 1 OF 2(8608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-16020 |
AW11..5F |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88590-17090 |
AW11..5F |
1 | ||
| 88590-17030 |
AW11..5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-17020 |
AW11 |
1 | ||
| 88460-17040 |
AW11 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-17190 |
AW11 |
1 | ||
| 88688-17020 |
AW11 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-17180 |
AW11 |
1 | ||
| 88688-17010 |
AW11 |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-17030 |
AW11 |
2 | ||
| 88688-17210 |
AW11 LH |
1 | ||
| 88688-17200 |
AW11 RH |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-17030 |
AW11 |
2 | ||
| 88688-17210 |
AW11 LH |
1 | ||
| 88688-17200 |
AW11 RH |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-16010 |
AW11..5F |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-17070 |
AW11..5F |
1 | ||
| 88590-17010 |
AW11..5F |
1 | ||
| Common parts | ||||
| 88467-20030 | ||||
| 88467-30270 | ||||
| 88578-17040 | ||||
| 88578-17050 | ||||
| 88578-17060 | ||||
| 88895-17010 | ||||
| 90099-04359 | ||||
| 90119-06042 | ||||
| 90179-06032 | ||||
| 90179-06069 | ||||
