AW11L-WCMQFK (1984)
Toyota Mr2
(8412- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

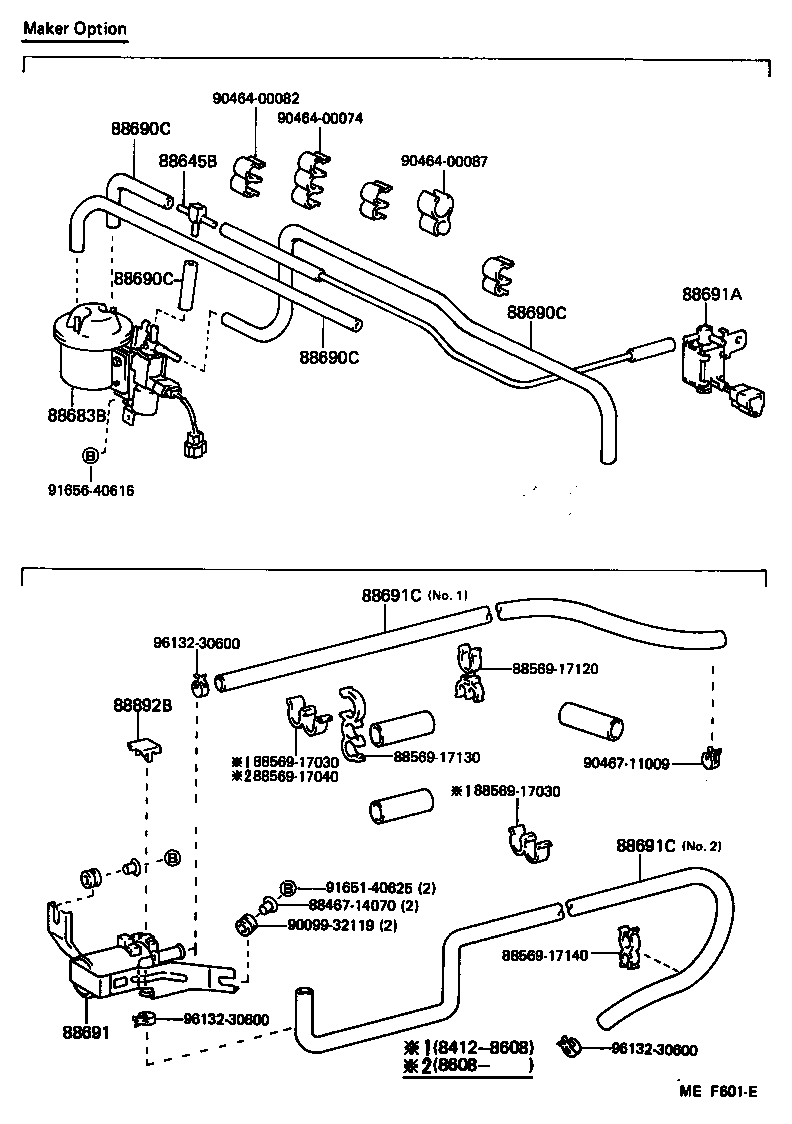

| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04005 |
AW11 |
1 | ||
| 88683B - TANK, VACUUM | ||||
| 88683-17040 |
AW11 |
1 | ||
| 88683-17041 |
AW11 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10360 |
AW11 MARK=#3,*H,L=450 |
1 | ||
| 95411-10230 |
AW11 MARK=#2,*H,L=90 |
1 | ||
| 95411-10230 |
AW11 *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11 *H,L=300,MARK=#1 |
1 | ||
| 95411-10230 |
AW11 *H,L=80,MARK=#2 |
1 | ||
| 95411-10360 |
AW11 *H,L=420,MARK=#3 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10360 |
AW11 MARK=#3,*H,L=450 |
1 | ||
| 95411-10230 |
AW11 MARK=#2,*H,L=90 |
1 | ||
| 95411-10230 |
AW11 *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11 *H,L=300,MARK=#1 |
1 | ||
| 95411-10230 |
AW11 *H,L=80,MARK=#2 |
1 | ||
| 95411-10360 |
AW11 *H,L=420,MARK=#3 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10360 |
AW11 MARK=#3,*H,L=450 |
1 | ||
| 95411-10230 |
AW11 MARK=#2,*H,L=90 |
1 | ||
| 95411-10230 |
AW11 *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11 *H,L=300,MARK=#1 |
1 | ||
| 95411-10230 |
AW11 *H,L=80,MARK=#2 |
1 | ||
| 95411-10360 |
AW11 *H,L=420,MARK=#3 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10360 |
AW11 MARK=#3,*H,L=450 |
1 | ||
| 95411-10230 |
AW11 MARK=#2,*H,L=90 |
1 | ||
| 95411-10230 |
AW11 *H,L=40,MARK=#2 |
1 | ||
| 95411-10130 |
AW11 *H,L=300,MARK=#1 |
1 | ||
| 95411-10230 |
AW11 *H,L=80,MARK=#2 |
1 | ||
| 95411-10360 |
AW11 *H,L=420,MARK=#3 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88609-17010 |
AW11..GT..CND NO.2,ASSY |
1 | ||
| 89570-16100 |
AW11..GT..CND NO.2,COMPONENT |
1 | ||
| 89570-16100 |
AW11..CND NO.2 |
1 | ||
| 88691-17010 |
AW11..GT..CND NO.1,COMPONENT |
1 | ||
| 88690-17070 |
AW11..GT..CND NO.1,ASSY |
1 | ||
| 88690-17030 |
AW11..CND NO.1 |
1 | ||
| 88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE) | ||||
| 88690-17020 |
AW11 W/*AAC |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19930 |
AW11..CND *H,L=220,MARK=#* |
1 | ||
| 88689-17020 |
AW11 NO.2,L=510 |
1 | ||
| 88689-17010 |
AW11 NO.1,L=660 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19930 |
AW11..CND *H,L=220,MARK=#* |
1 | ||
| 88689-17020 |
AW11 NO.2,L=510 |
1 | ||
| 88689-17010 |
AW11 NO.1,L=660 |
1 | ||
| 88892B - COVER, MAGNET VALVE | ||||
| 88891-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88569-17030 | ||||
| 88569-17040 | ||||
| 88569-17120 | ||||
| 88569-17130 | ||||
| 88569-17140 | ||||
| 90099-32119 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00087 | ||||
| 90467-11009 | ||||
| 91651-40625 | ||||
| 91656-40616 | ||||
| 96132-30600 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

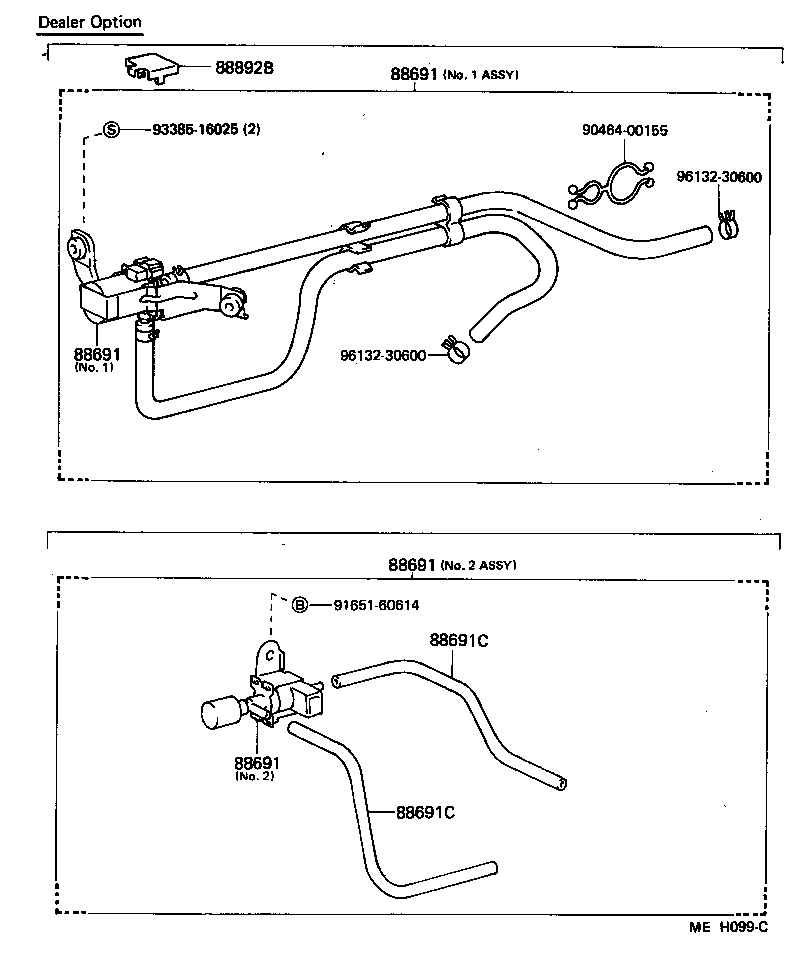

| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88609-17010 |
AW11..GT..CND NO.2,ASSY |
1 | ||
| 89570-16100 |
AW11..GT..CND NO.2,COMPONENT |
1 | ||
| 89570-16100 |
AW11..CND NO.2 |
1 | ||
| 88691-17010 |
AW11..GT..CND NO.1,COMPONENT |
1 | ||
| 88690-17070 |
AW11..GT..CND NO.1,ASSY |
1 | ||
| 88690-17030 |
AW11..CND NO.1 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88609-17010 |
AW11..GT..CND NO.2,ASSY |
1 | ||
| 89570-16100 |
AW11..GT..CND NO.2,COMPONENT |
1 | ||
| 89570-16100 |
AW11..CND NO.2 |
1 | ||
| 88691-17010 |
AW11..GT..CND NO.1,COMPONENT |
1 | ||
| 88690-17070 |
AW11..GT..CND NO.1,ASSY |
1 | ||
| 88690-17030 |
AW11..CND NO.1 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88609-17010 |
AW11..GT..CND NO.2,ASSY |
1 | ||
| 89570-16100 |
AW11..GT..CND NO.2,COMPONENT |
1 | ||
| 89570-16100 |
AW11..CND NO.2 |
1 | ||
| 88691-17010 |
AW11..GT..CND NO.1,COMPONENT |
1 | ||
| 88690-17070 |
AW11..GT..CND NO.1,ASSY |
1 | ||
| 88690-17030 |
AW11..CND NO.1 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88609-17010 |
AW11..GT..CND NO.2,ASSY |
1 | ||
| 89570-16100 |
AW11..GT..CND NO.2,COMPONENT |
1 | ||
| 89570-16100 |
AW11..CND NO.2 |
1 | ||
| 88691-17010 |
AW11..GT..CND NO.1,COMPONENT |
1 | ||
| 88690-17070 |
AW11..GT..CND NO.1,ASSY |
1 | ||
| 88690-17030 |
AW11..CND NO.1 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19930 |
AW11..CND *H,L=220,MARK=#* |
1 | ||
| 88689-17020 |
AW11 NO.2,L=510 |
1 | ||
| 88689-17010 |
AW11 NO.1,L=660 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19930 |
AW11..CND *H,L=220,MARK=#* |
1 | ||
| 88689-17020 |
AW11 NO.2,L=510 |
1 | ||
| 88689-17010 |
AW11 NO.1,L=660 |
1 | ||
| 88892B - COVER, MAGNET VALVE | ||||
| 88891-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90464-00155 | ||||
| 91651-60614 | ||||
| 93385-16025 | ||||
| 96132-30600 | ||||
