AW11L-WCMQFK (1984)
Toyota Mr2
Production
Dec 1984
-
Aug 1988
Engine
4AGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )
Click highlighted areas on diagram

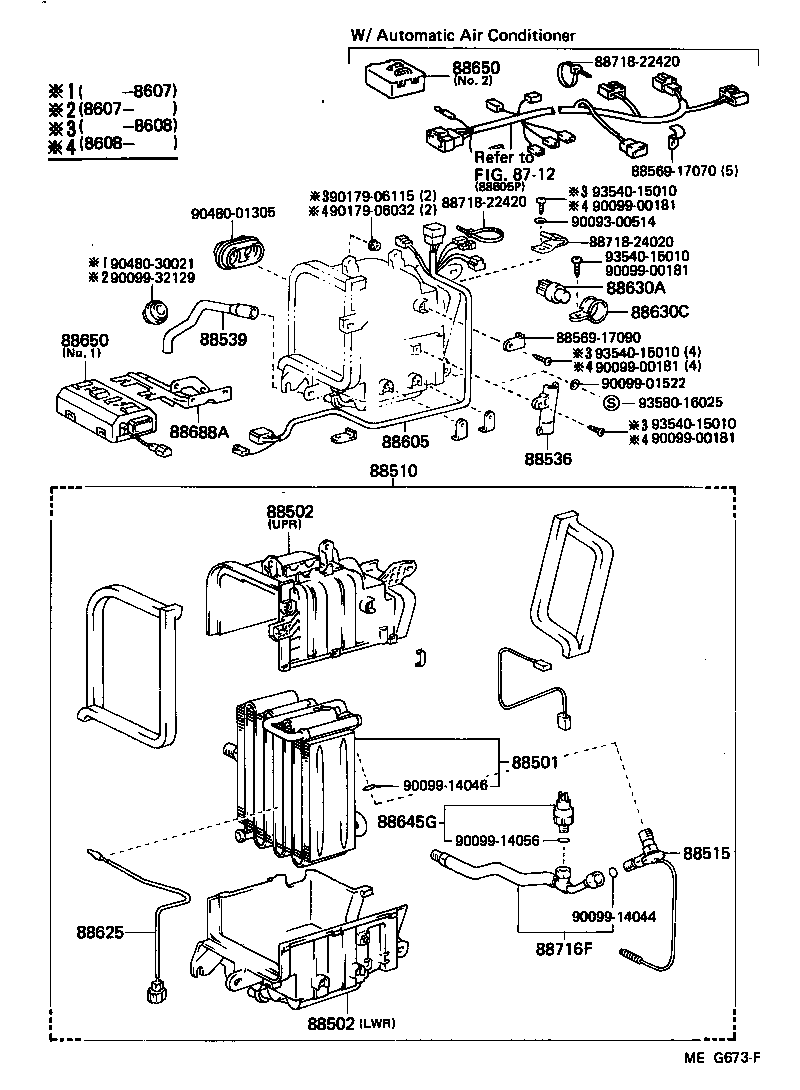

A TYPE AIR CONDITIONER=DEALER OPT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-17020 |
AW11 |
1 | ||
| 88501-17021 |
AW11 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-17020 |
AW11 LWR |
1 | ||
| 88502-17010 |
AW11 UPR |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-17020 |
AW11 LWR |
1 | ||
| 88502-17010 |
AW11 UPR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-17070 |
AW11 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16031 |
AW11 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-17010 |
AW11 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-17020 |
AW11 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-17110 |
AW11..5F |
1 | ||
| 88605-17080 |
AW11..5F W/*AAC |
1 | ||
| 88605-17170 |
AW11..5F..GT |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
AW11 |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
AW11..5F W/*AAC |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88718-20430 |
AW11..5F W/*AAC |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-10020 |
AW11 |
1 | ||
| 88645-12020 |
AW11 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-17020 |
AW11 *AAC,NO.2 |
1 | ||
| 88650-17010 |
AW11 NO.1 |
1 | ||
| 88650-17050 |
AW11..GT NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-17020 |
AW11 *AAC,NO.2 |
1 | ||
| 88650-17010 |
AW11 NO.1 |
1 | ||
| 88650-17050 |
AW11..GT NO.1 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-17060 |
AW11 |
1 | ||
| Common parts | ||||
| 88569-17070 | ||||
| 88569-17090 | ||||
| 88718-22420 | ||||
| 88718-24020 | ||||
| 90093-00514 | ||||
| 90099-00181 | ||||
| 90099-01522 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-32129 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90480-01305 | ||||
| 90480-30021 | ||||
| 93540-15010 | ||||
| 93580-16025 | ||||
| Linked diagrams | ||||
| 8712 | ||||
(8412- )
Click highlighted areas on diagram

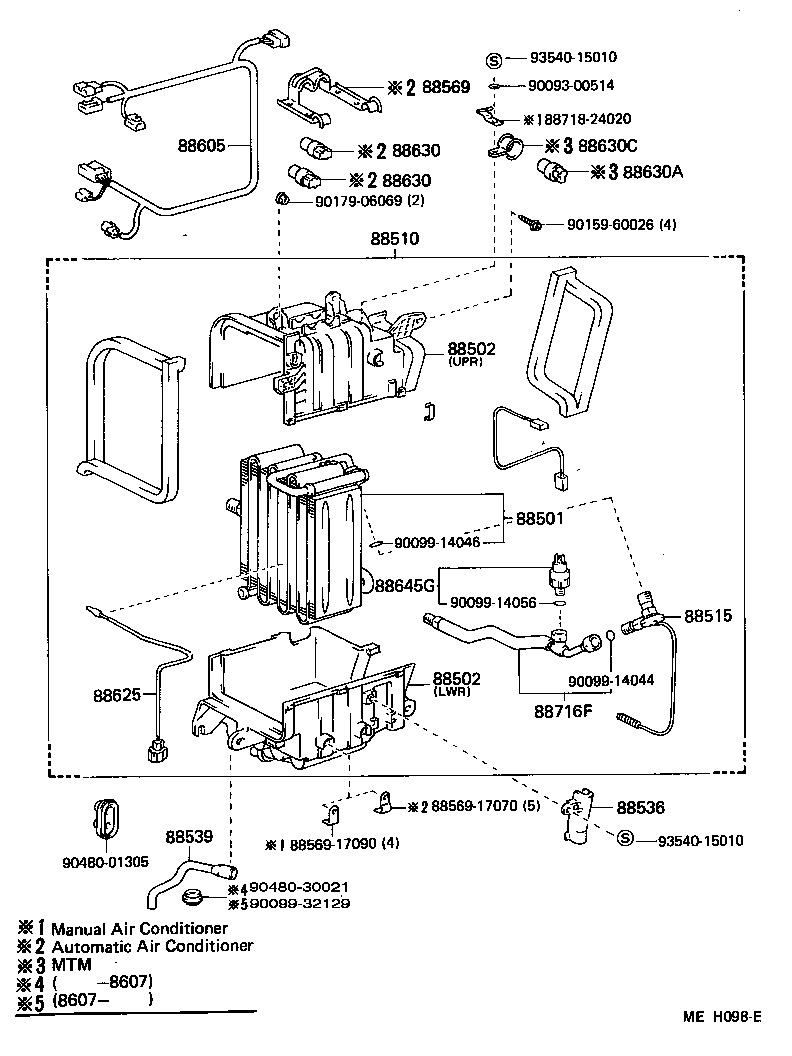

A TYPE AIR CONDITIONER=MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-17020 |
AW11 |
1 | ||
| 88501-17021 |
AW11 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-17020 |
AW11 LWR |
1 | ||
| 88502-17010 |
AW11 UPR |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-17020 |
AW11 LWR |
1 | ||
| 88502-17010 |
AW11 UPR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-17070 |
AW11 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16031 |
AW11 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-17010 |
AW11 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-17020 |
AW11 |
1 | ||
| 88569 - CLAMP (FOR COOLER RELAY) | ||||
| 88569-17060 |
AW11 W/*AAC |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-17110 |
AW11..5F |
1 | ||
| 88605-17080 |
AW11..5F W/*AAC |
1 | ||
| 88605-17170 |
AW11..5F..GT |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
AW11 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AW11 W/*AAC |
2 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AW11 W/*AAC |
2 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
AW11..5F W/*AAC |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88718-20430 |
AW11..5F W/*AAC |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-10020 |
AW11 |
1 | ||
| 88645-12020 |
AW11 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-17060 |
AW11 |
1 | ||
| Common parts | ||||
| 88569-17070 | ||||
| 88569-17090 | ||||
| 88718-24020 | ||||
| 90093-00514 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-32129 | ||||
| 90159-60026 | ||||
| 90179-06069 | ||||
| 90480-01305 | ||||
| 90480-30021 | ||||
| 93540-15010 | ||||
