AW11L-WCMQFK (1984)
Toyota Mr2
Production
Dec 1984
-
Aug 1988
Engine
4AGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8412- )

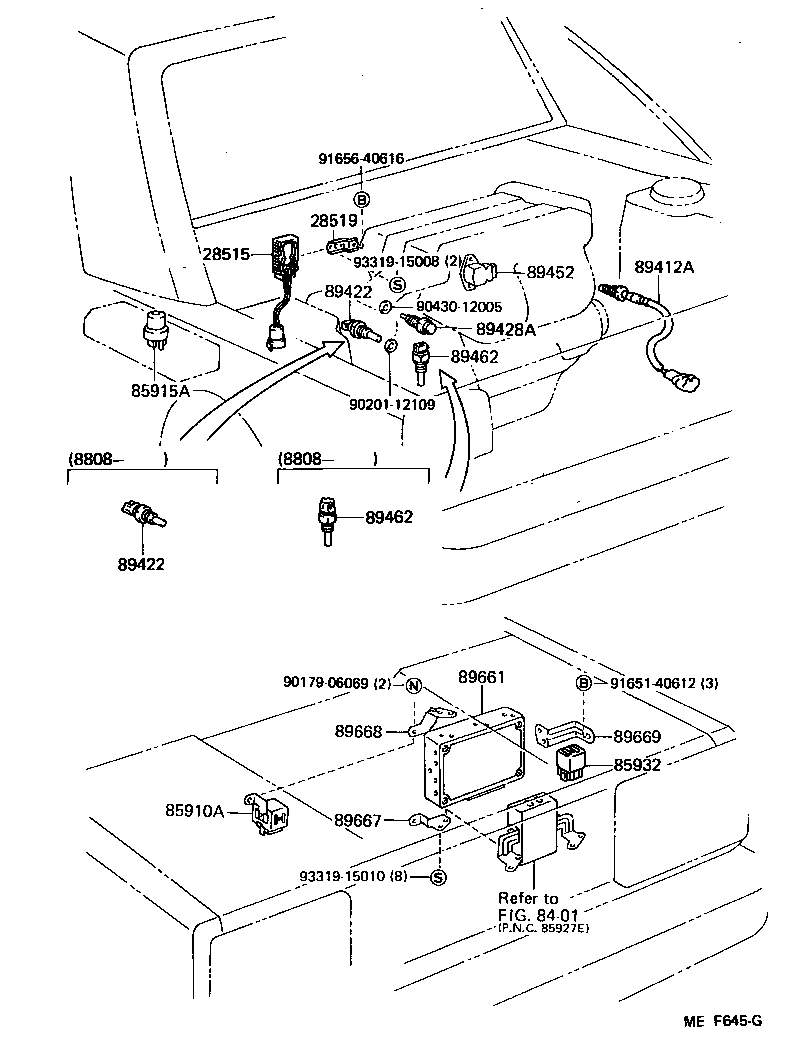

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-52010 |
4AGELC..AW11 |
1 | ||
| 28515-11010 |
4AGELC..AW11 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-16020 |
4AGELC..AW11 |
1 | ||
| 28519-16010 |
4AGELC..AW11 |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-17010 |
AW11 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AW11 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AW11 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AW11 |
1 | ||
| 89428A - SWITCH, WATER TEMPERATURE (FOR E.F.I) | ||||
| 89428-28030 |
AW11 |
1 | ||
| 89428-28030 |
AW11..CND W/*AAC |
1 | ||
| 89428-28030 |
AW11 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-28010 |
AW11 |
1 | ||
| 89452-20070 |
AW11 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
AW11 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
AW11 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-17020 |
AW11..5F |
1 | ||
| 89661-17021 |
AW11..5F |
1 | ||
| 89661-17190 |
AW11..GT |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-17010 |
AW11 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-17010 |
AW11 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 90201-12109 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
