AW11L-WCMQFK (1984)
Toyota Mr2
ILLUST NO. 4 OF 4(8412- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12770 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-17010 | ||||
| 82711-17100 | ||||
| 82711-17180 | ||||
| 82711-17181 | ||||
| 82711-17260 | ||||
| 82711-17270 | ||||
| 82711-1A160 | ||||
| 82711-1A170 | ||||
| 82711-1A180 | ||||
| 82711-1A210 | ||||
| 82711-20490 | ||||
| 82711-22270 | ||||
| 82711-30660 | ||||
| 90463-12014 | ||||
| 90463-15002 | ||||

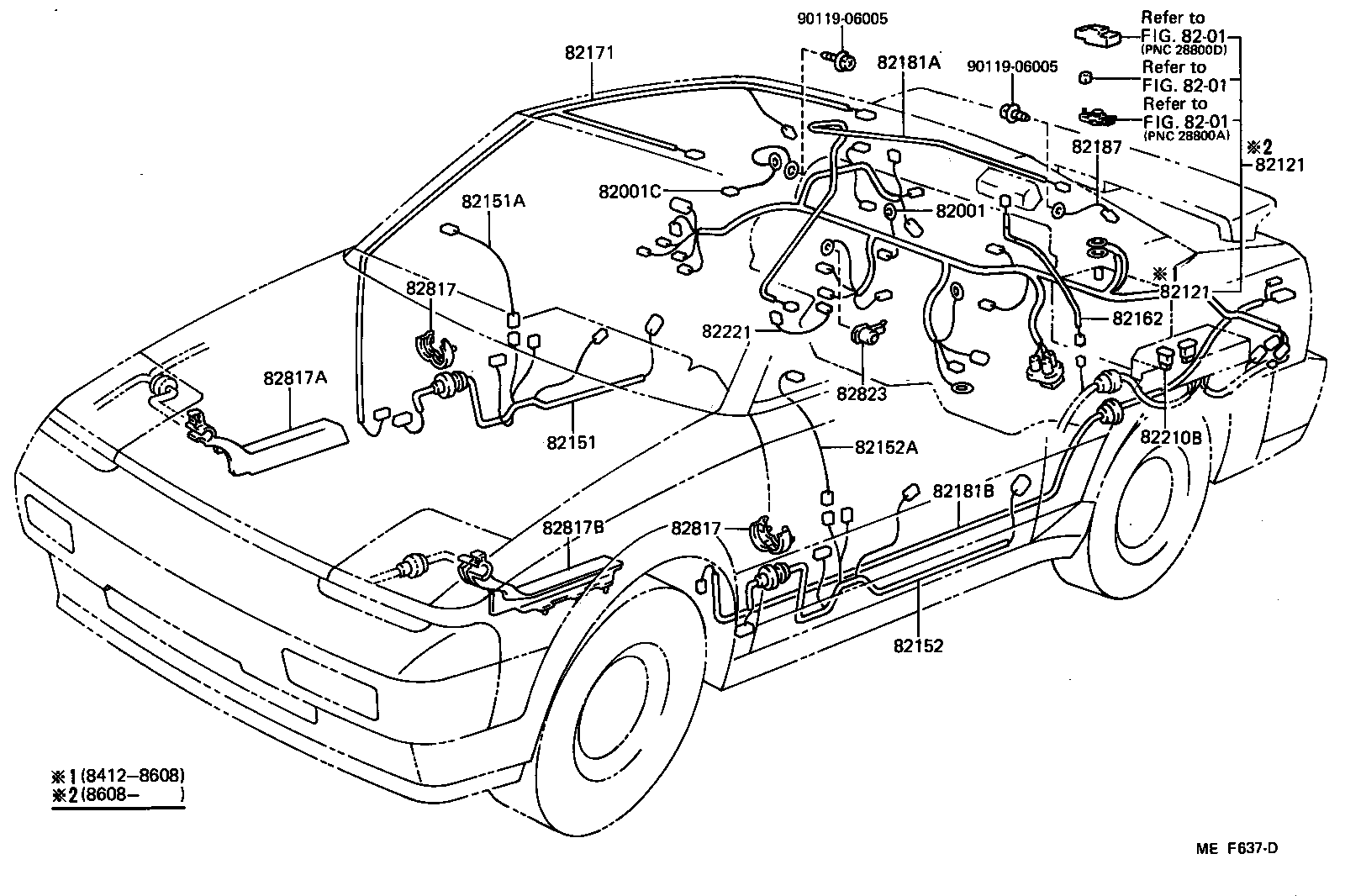

ILLUST NO. 2 OF 4(8412- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07235 |
AW11 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07237 |
AW11 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-17050 |
AW11 |
1 | ||
| 82121-17150 |
AW11..5F |
1 | ||
| 82121-17051 |
AW11..5F |
1 | ||
| 82121-17152 |
AW11..5F..GT |
1 | ||
| 82121-17151 |
AW11..5F |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-17050 |
AW11 |
1 | ||
| 82121-17150 |
AW11..5F |
1 | ||
| 82121-17051 |
AW11..5F |
1 | ||
| 82121-17152 |
AW11..5F..GT |
1 | ||
| 82121-17151 |
AW11..5F |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-17031 |
AW11 W/*PW & *RCM |
1 | ||
| 82151-17020 |
AW11 W/*RCM,W/O *PW |
1 | ||
| 82151-17020 |
AW11..GT W(*RCM) |
1 | ||
| 82151-17070 |
AW11 W/*PW OR *PW & *RCM |
1 | ||
| 82151-17030 |
AW11 W/*PW & *RCM |
1 | ||
| 82151-17070 |
AW11..GT |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82151-17050 |
AW11..GT |
1 | ||
| 82151-17050 |
AW11 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-17020 |
AW11 W/*RCM,W/O *PW |
1 | ||
| 82152-17030 |
AW11 W/*PW & *RCM |
1 | ||
| 82152-17060 |
AW11..GT |
1 | ||
| 82152-17020 |
AW11..GT W(*RCM) |
1 | ||
| 82152-17060 |
AW11 W/*PW OR *PW & *RCM |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82151-17050 |
AW11 |
1 | ||
| 82151-17050 |
AW11..GT |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-17010 |
AW11 |
1 | ||
| 82181A - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-17010 |
AW11 |
1 | ||
| 82182-17020 |
AW11 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-17010 |
AW11 |
1 | ||
| 82210B - FUSIBLE LINK | ||||
| 90982-08227 |
AW11 50A,TERM.:FEMALE,RED,50A |
1 | ||
| 90982-08202 |
AW11 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08189 |
AW11 40A,TERM.:FEMALE,GRN,40A |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20320 |
AW11..GT |
1 | ||
| 82817-20320 |
AW11 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20320 |
AW11..GT |
1 | ||
| 82817-20320 |
AW11 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-17010 |
AW11 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-17020 |
AW11 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20040 |
AW11 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| Linked diagrams | ||||
| 8201 | ||||

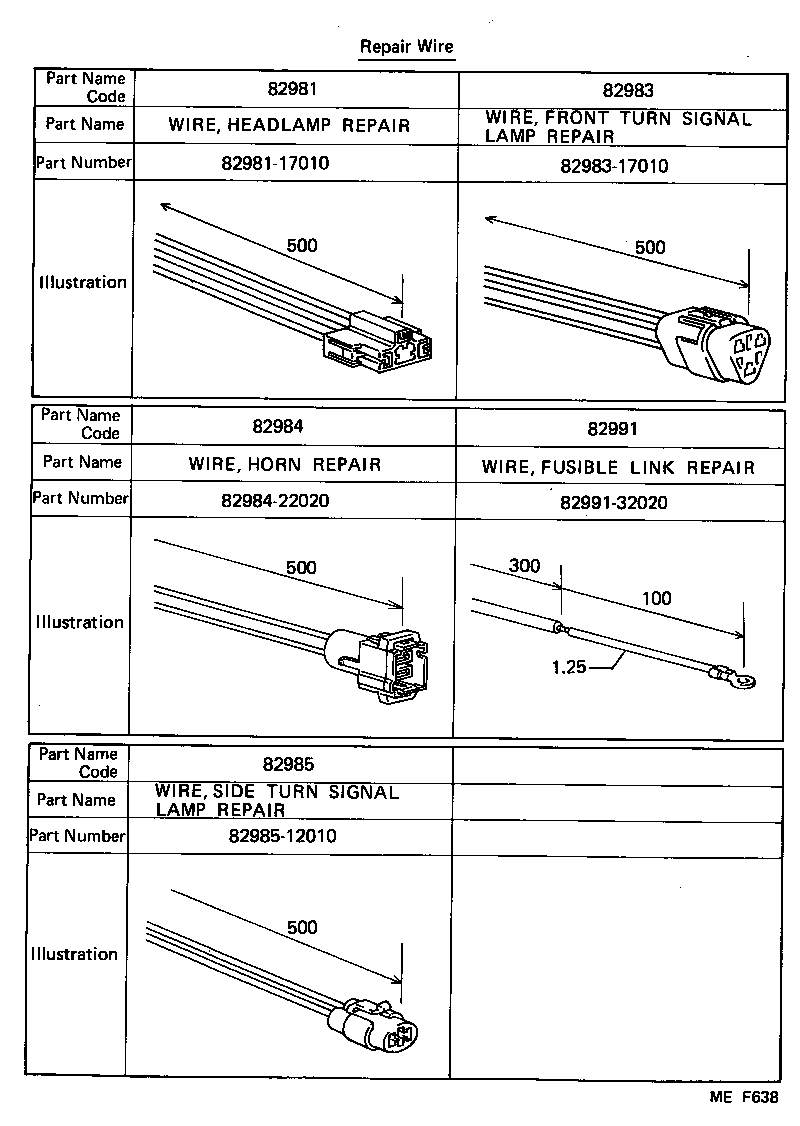

ILLUST NO. 3 OF 4(8412- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-17010 |
AW11 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-17010 |
AW11 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22020 |
AW11 |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-12010 |
AW11 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32020 |
AW11 |
1 | ||
| Common parts | ||||
| 82981-17010 | ||||
| 82983-17010 | ||||
| 82984-22020 | ||||
| 82985-12010 | ||||
| 82991-32020 | ||||

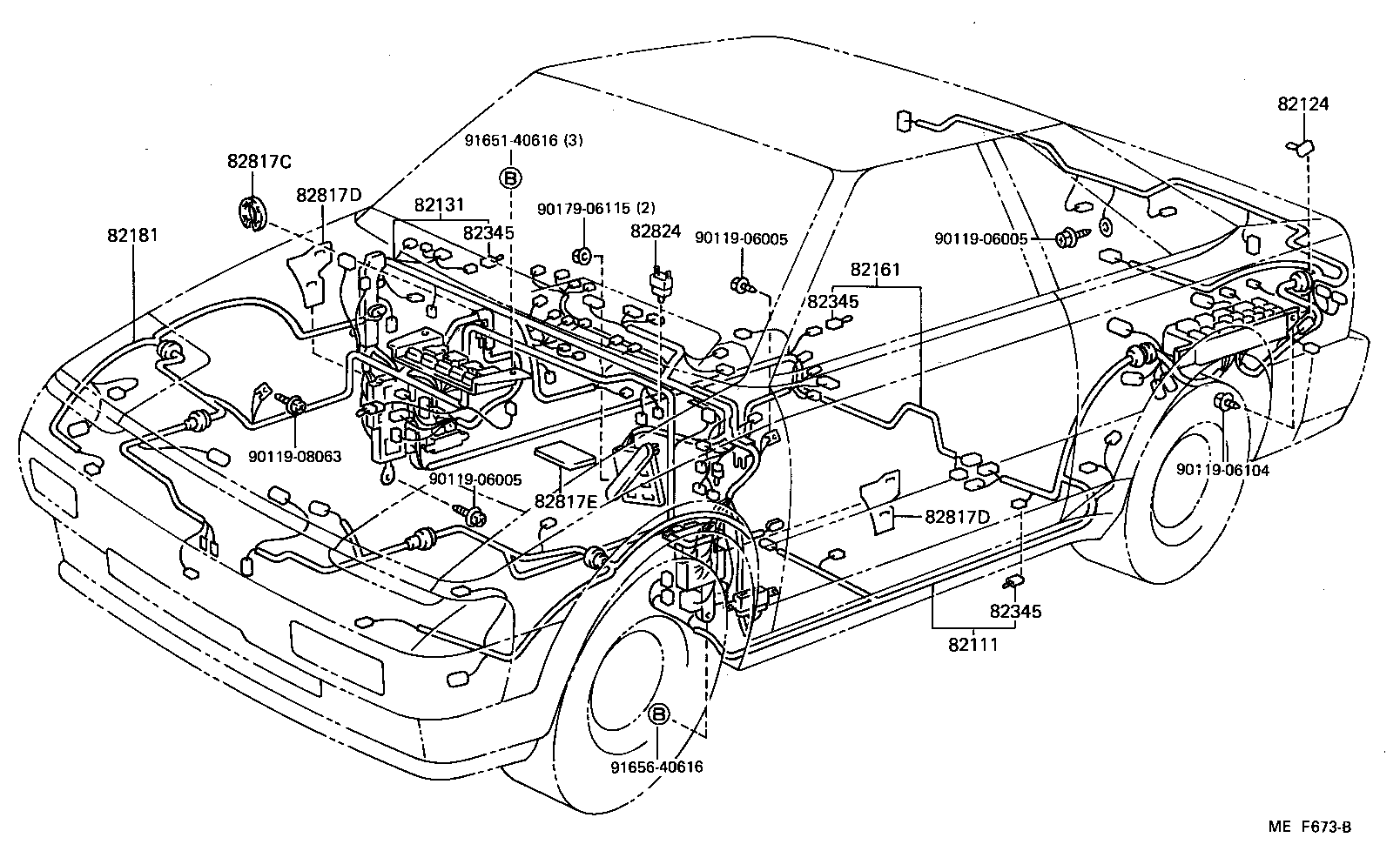

ILLUST NO. 1 OF 4(8412- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-17060 |
AW11 W/*CRC |
1 | ||
| 82111-17061 |
AW11..5F W/*CRC |
1 | ||
| 82111-17062 |
AW11..5F W/*CRC |
1 | ||
| 82111-17051 |
AW11..5F |
1 | ||
| 82111-17050 |
AW11 |
1 | ||
| 82111-17330 |
AW11..5F |
1 | ||
| 82111-17340 |
AW11..5F W/*CRC |
1 | ||
| 82111-17332 |
AW11..5F |
1 | ||
| 82111-17343 |
AW11..5F..GT W/*CRC |
1 | ||
| 82111-17343 |
AW11..5F..GT W(CRUISE CONTROL) |
1 | ||
| 82111-17342 |
AW11..5F W/*CRC |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-17010 |
AW11 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-17050 |
AW11 |
1 | ||
| 82131-17360 |
AW11..5F |
1 | ||
| 82131-17062 |
AW11..5F W/*PW,*CRC OR *RCM |
1 | ||
| 82131-17060 |
AW11 W/*PW,*CRC OR *RCM |
1 | ||
| 82131-17450 |
AW11..5F W/*CRC |
1 | ||
| 82131-17370 |
AW11..5F W/*PW OR *PW & *CRC |
1 | ||
| 82131-17451 |
AW11..5F..GT W/*CRC |
1 | ||
| 82131-17371 |
AW11..5F..GT W/*PW OR *PW & *CRC |
1 | ||
| 82131-17371 |
AW11..5F..GT W/*PW OR *PW & *CRC |
1 | ||
| 82131-17052 |
AW11..5F |
1 | ||
| 82131-17490 |
AW11..5F..GT W/*PW OR *PW & *CRC |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-17050 |
AW11 |
1 | ||
| 82161-17250 |
AW11 |
1 | ||
| 82161-17051 |
AW11 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-17030 |
AW11 |
1 | ||
| 82181-17110 |
AW11 |
1 | ||
| 82181-17111 |
AW11 W/LAMP AUTO TURN OFF |
1 | ||
| 82345 - DIODE | ||||
| 82345-12010 |
AW11 2 POLE CONECTOR,STANLEY |
1 | ||
| 82345-12050 |
AW11 2 POLE CONNECTOR |
3 | ||
| 82345-22010 |
AW11 4 POLE CONNECTOR |
2 | ||
| 82345 - DIODE | ||||
| 82345-12010 |
AW11 2 POLE CONECTOR,STANLEY |
1 | ||
| 82345-12050 |
AW11 2 POLE CONNECTOR |
3 | ||
| 82345-22010 |
AW11 4 POLE CONNECTOR |
2 | ||
| 82345 - DIODE | ||||
| 82345-12010 |
AW11 2 POLE CONECTOR,STANLEY |
1 | ||
| 82345-12050 |
AW11 2 POLE CONNECTOR |
3 | ||
| 82345-22010 |
AW11 4 POLE CONNECTOR |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-32010 |
AW11 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-17090 |
AW11 |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-17090 |
AW11 |
2 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-91707 |
AW11 |
3 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06104 | ||||
| 90119-08063 | ||||
| 90179-06115 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
